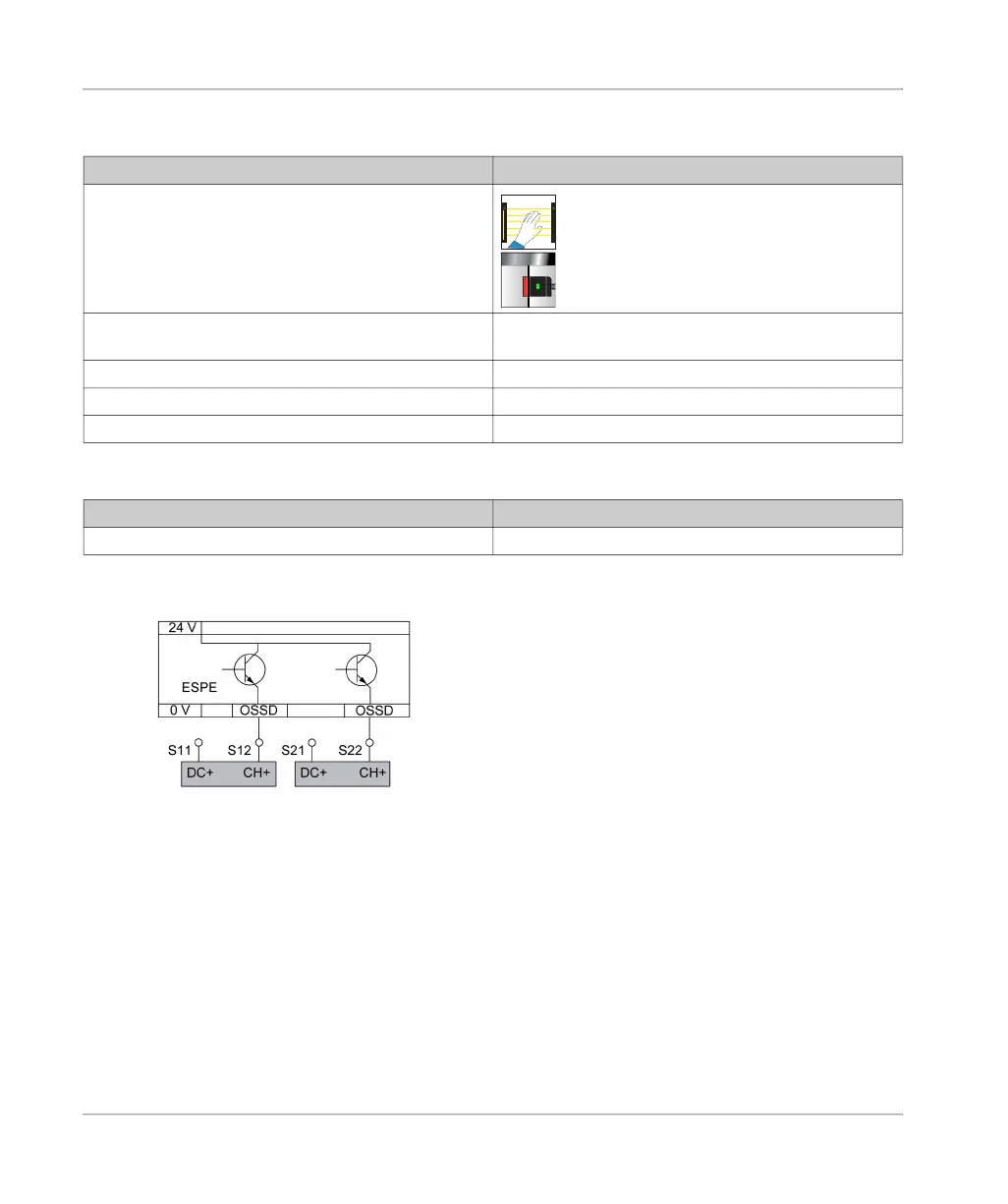

Application Function 6
Synchronization:
Wiring of the inputs for sensors/devices with OSSD outputs
Characteristic Value/Description
Typical applications Monitoring of electro-sensitive protective
equipment such as type 4 light curtains as per
IEC 61496-1
Monitoring of RFID sensors
Type of outputs of sensor/device providing the input signal
for application function
OSSD (Output Signal Switching Device) outputs
S## terminals to be connected S12 and S22
Dynamization No
Signal interlock monitoring Between terminals S12 and S22
Synchronized terminals Synchronization time
S12 synchronized with S22 S12 and S22 have to be activated within 0.5 s.
