25: D ATA L OG I NSTRUCTIONS
25-12 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

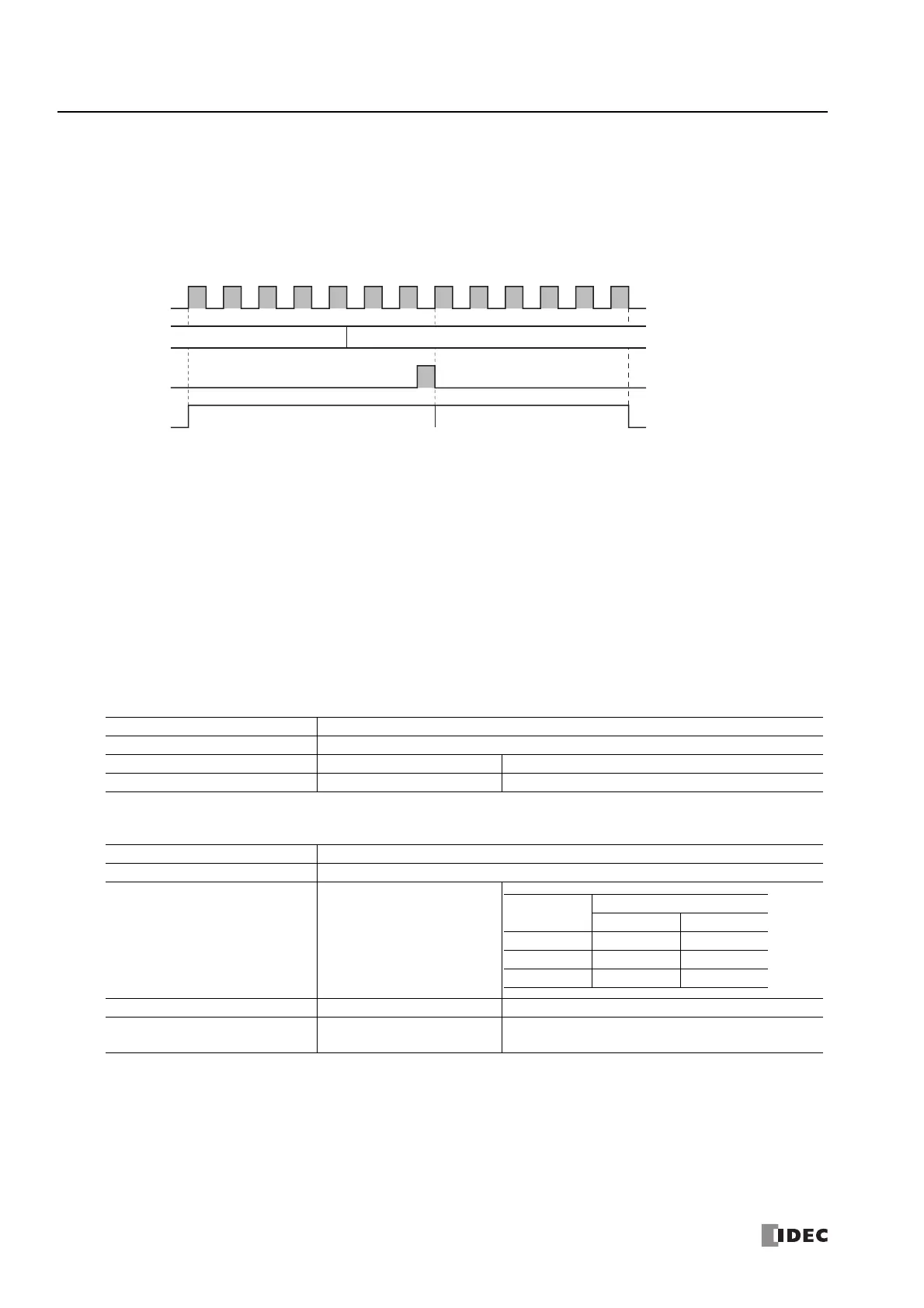

Advanced mode
When the DLOG instruction is executed and the CSV file for the same name does not exist in the folder designated by S1, a new
file is created and the header and the log data 1 are output as shown in above output format example. If the DLOG instruction is
executed again on the same name, the log data 2 is appended to the CSV file. Similarly, if the DLOG instruction is executed again
on the same name, log data 3 is appended to the CSV file.
When the switch file timing trigger is turned on and the file name changes, a CSV file with a new file name is created and the
header and data are output. The switch file timing trigger is automatically turned off when the DLOG instruction is executed.
• File format
The decimal symbol and separating character in CSV files can be specified in the function area settings. For details, see Chapter 11
"SD Memory Card" in the
"FC6A Series MICROSmart User’s Manual".
•File name
The output order of the file name is as follows.
[File name]_[Value of device address]_[YYMMDD]_[hhmmss].CSV
• Configuration Example 1
The file name is "LOG_123456_1309.CSV".
• Configuration Example 2
The file name is "IDEC_123456_130915_233050.CSV".
File name: Text entered in Base file name or text in device address values specified by Specify Base file name by Value of
Device Address
Value of device address: Value of device address specified by Add Device value to File Name
YYMMDD: Year, month, and day of date and time set in Add Timestamp
hhmmss: Hours, minutes, and seconds of date and time set in Add Timestamp
Item Setting
Base file name LOG
Add Device value to File Name Device address: D0200 D0200: 123456
Add Timestamp Year + Month Date and time when the data was output: September, 2013
Item Setting
Base file name LOG
Specify Base file name by Value of
Device Address
Device address: D0100
The text to set is "IDEC"
Add Device value to File Name Device address: D0200 D0200: 123456
Add Timestamp
Year + Month + Day + Minute +
Second
Date and time when the data was output: September 15,
2013, 23:30:50
0155 0156
LOG_0155.csv LOG_0156.csv
DLOG instruction
Switch file timing
Set file name
Output file name
Device
Stored Value
Upper Byte Lower Byte
D0100 1 D
D0101 E C
D0102 NULL NULL
