25: D ATA L OG I NSTRUCTIONS

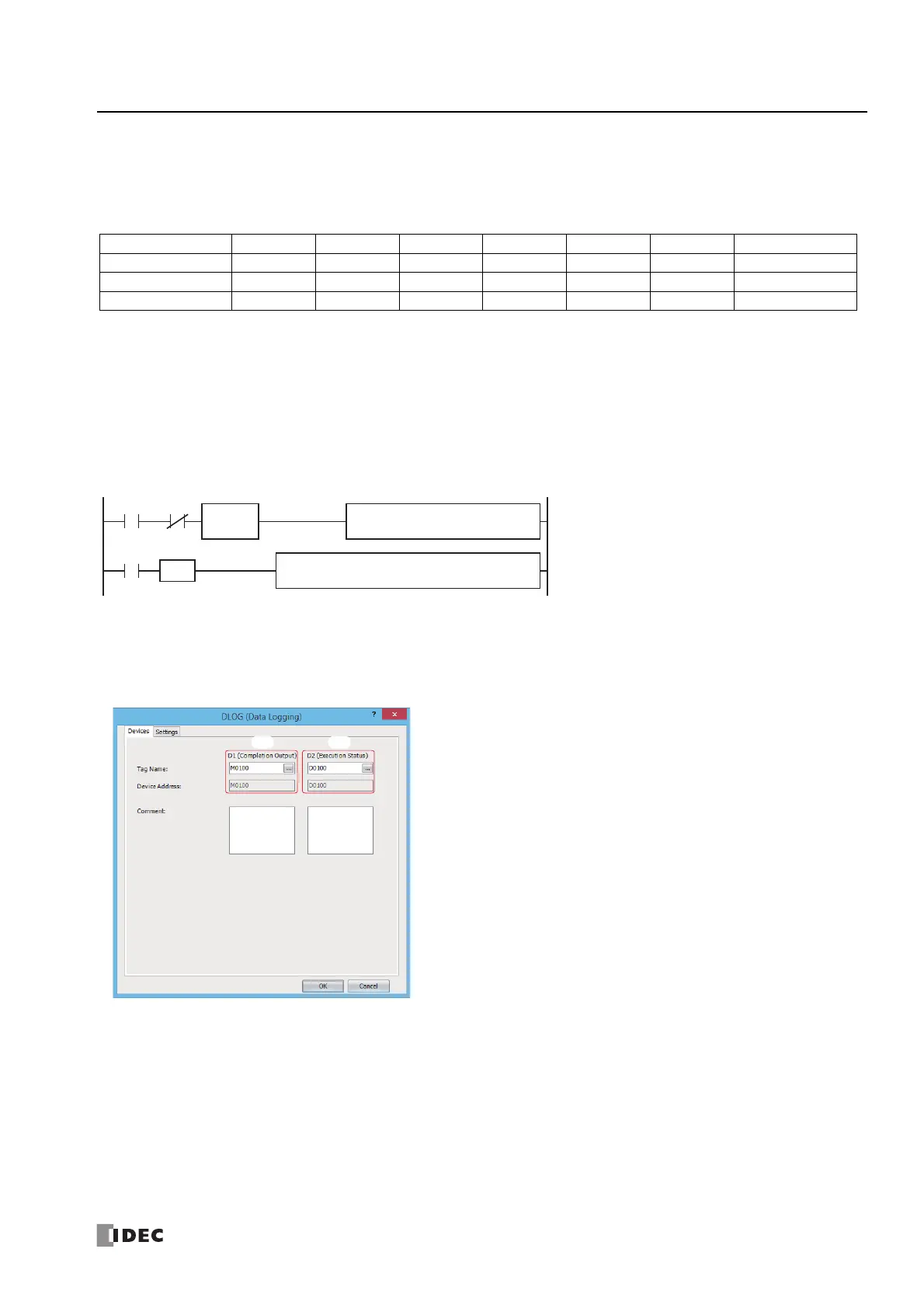

Examples: DLOG
When M0 is turned on, the decimal values of D0 through D5 (data type W (word)) and D10 (data type F (floating point)) are saved
in a CSV file in the "RESULT" folder on the SD memory card every 10 seconds.
Output example
The sample user program described below operates as follows.
• M100 is turned on when the transfer of log data has finished transferring to the SD memory card is complete.
• The DLOG instruction status code is stored in D100.
• The status code saved in D100 is checked and Q0 is turned on if an error occurs.
• Configuration Procedure
1. Create the ladder program.
2. Configure the DLOG instruction.
Configure the Devices tab.
(1) Designate M0100 as D1 (Completion Output).
(2) Designate D0100 as D2 (Execution Status).
Time D0000 D0001 D0002 D0003 D0004 D0005 D0010
2012/02/06 10:20:30 12345 0 0 56789 0 0 -3.402823E+38
2012/02/06 10:20:40 12345 0 0 56789 0 0 -3.402823E+38
2012/02/06 10:20:50 12345 0 0 56789 0 0 -3.402823E+38
D1
M100
S1
RESULT
DLOG D2
D100
M0
TIM
100
T0
T0
M100
REPD1 -
Q0
S2 -
0
CMP<
> (W) S1 -
D100
SOTU
(1) (2)
