iDiPOS WP85 - Page 12

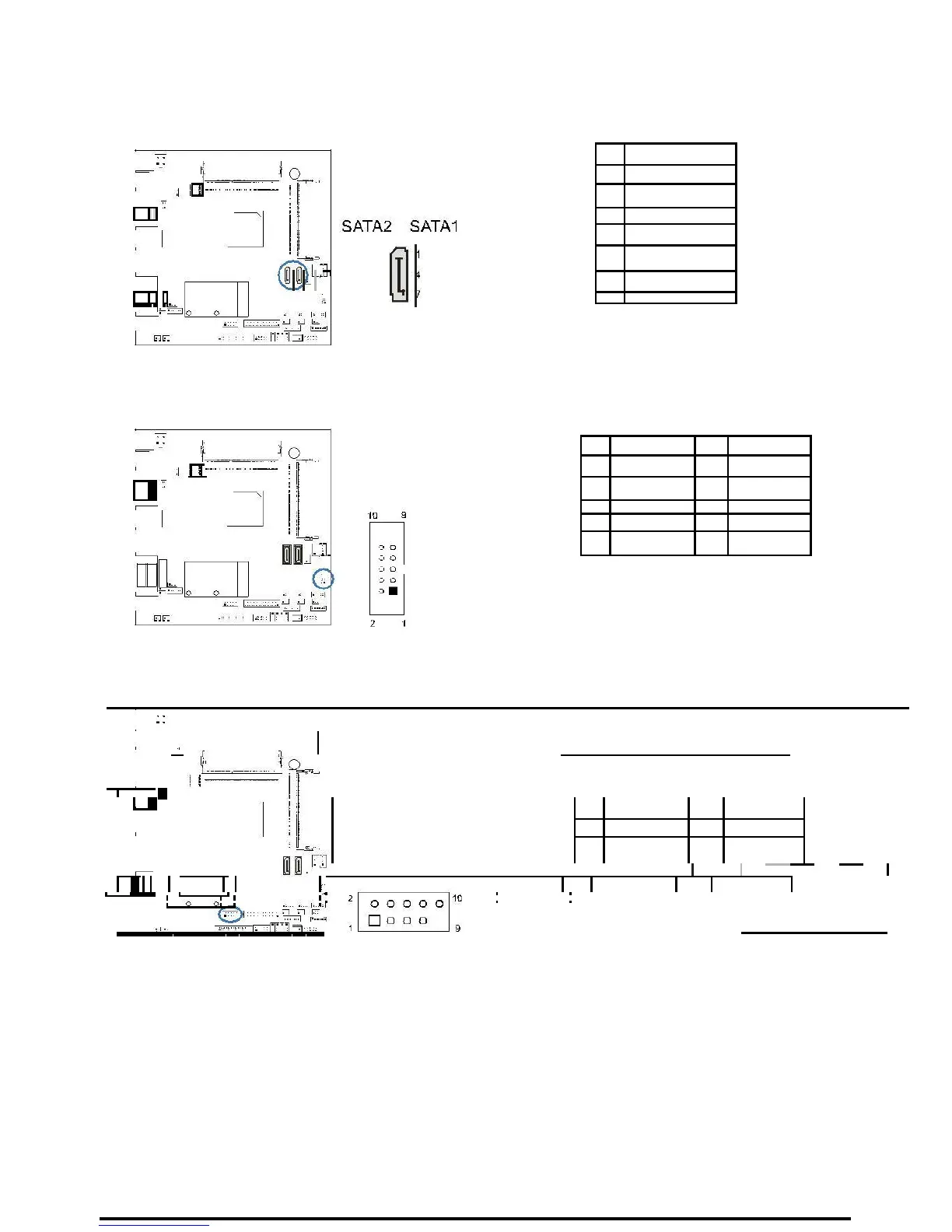

SATA1/2: Serial ATA 3.0 Gb/s Connectors
These connectors support the thin Serial ATA cable for primary internal storage devices.
Pin
Assignment
1
Ground
2
TX+
3
TX
-
4
Ground
5
RX
-
6
RX+
7
Ground
»»» SATA2 is optional and shared with Mini
PCI-E slot.
JUSB1: USB 3.0 Vertical Connector
This connector allows you to connect one USB 3.0 port.
Pin
Assignment
Pin
Assignment
1
RX
-
2
VCC
3
RX+
4
VCC
5
GND
6
GND
7
TX+
8
D+
9
TX
-
10
D
-
»»» This USB 3.0 connector is not
backward compatible with
USB 2.0 devices.
F_USB1: Header for USB 2.0 Ports at Front Panel
This header allows you to connect two additional USB 2.0 ports.
1
+5V (fused)
2
+5V (fused)
3
USB
-
4
USB
-
5
USB +
6
USB +
9
Key
10
NC
