BIBD-ICP User’s Manual

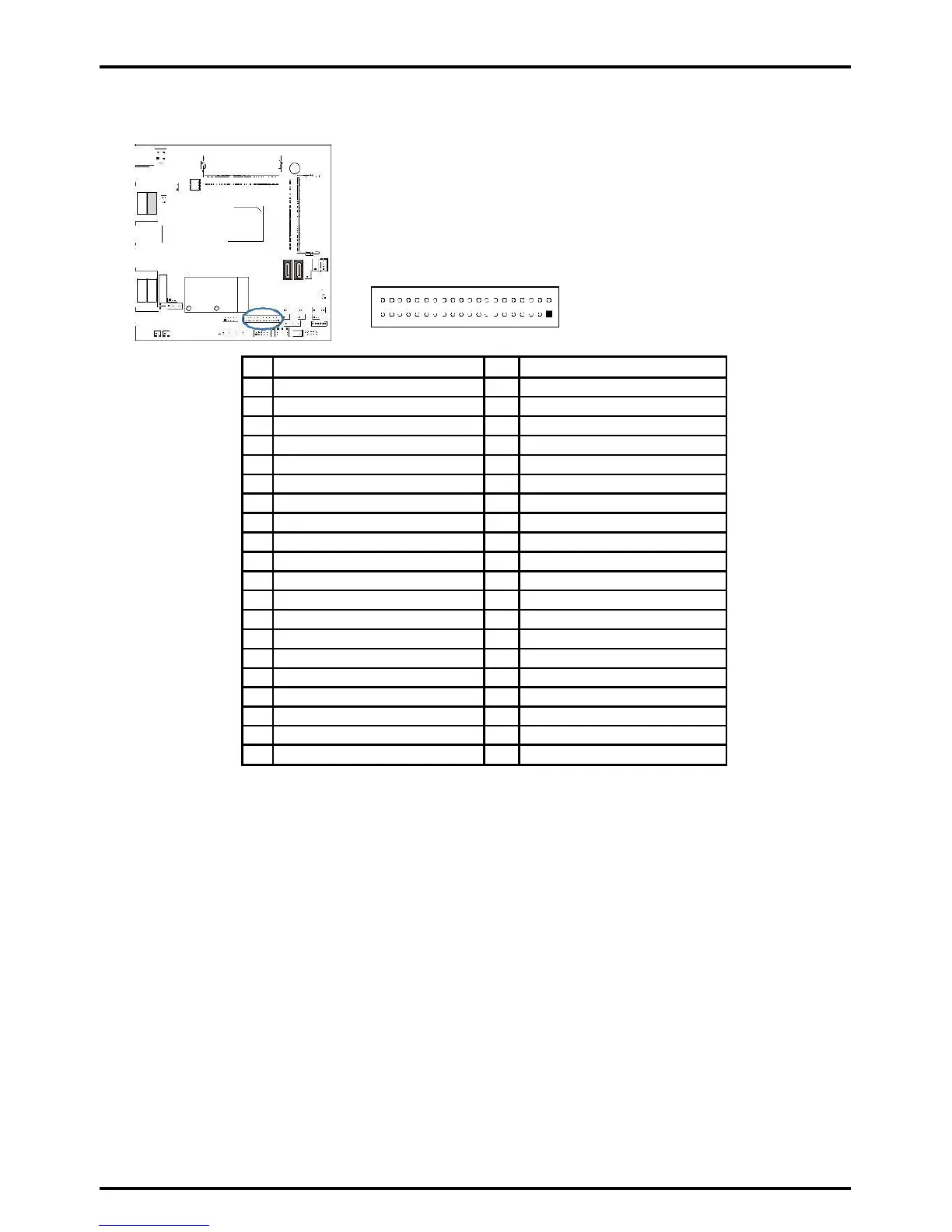

LVDS-OUT1: LVDS Connector
This connector supports 18/24 bit single-channel panels.
40
2
39
1
Pin
Assignment
Pin
Assignment
1
LVDSB_DATA0_N
2
PVDD2, 3.3V/5V (selected by JLV2)
3
LVDSB_DATA0_P
4
PVDD2, 3.3V/5V (selected by JLV2)
5
GND
6
GND
7
LVDSB_DATA1_N
8
GND
9
LVDSB_DATA1_P
10
LVDSA_DATA0_N
11
GND
12
LVDSA_DATA0_P
13
LVDSB_DATA2_N
14
GND
15
LVDSB_DATA2_P
16
LVDSA_DATA1_N
17
GND
18
LVDSA_DATA1_P
19
LVDSB_CLK_N
20
GND
21
LVDSB_CLK_P
22
LVDSA_DATA2_N
23
GND
24
LVDSA_DATA2_P
25
LVDSB_DATA3_N
26
GND
27
LVDSB_DATA3_P
28
LVDSA_CLK_N
29
VCC5
30
LVDSA_CLK_P
31
LVDSA_DDC_CLK
32
GND
33
VCC3_3
34
LVDSA_DATA3_N
35
NC
36
LVDSA_DATA3_P
37
PVDD2, 3.3V/5V (selected by JLV2)
38
NC
39
PVDD2, 3.3V/5V (selected by JLV2)
40
LVDSA_DCC_DATA
Chapter 2: Hardware installation | 15
