6.2 Field bus connection PROFINET IO Port 1 / Port 2
► Connect the device to a PROFINET IO controller using a suitable M12 Ethernet
connection cable�
12
34

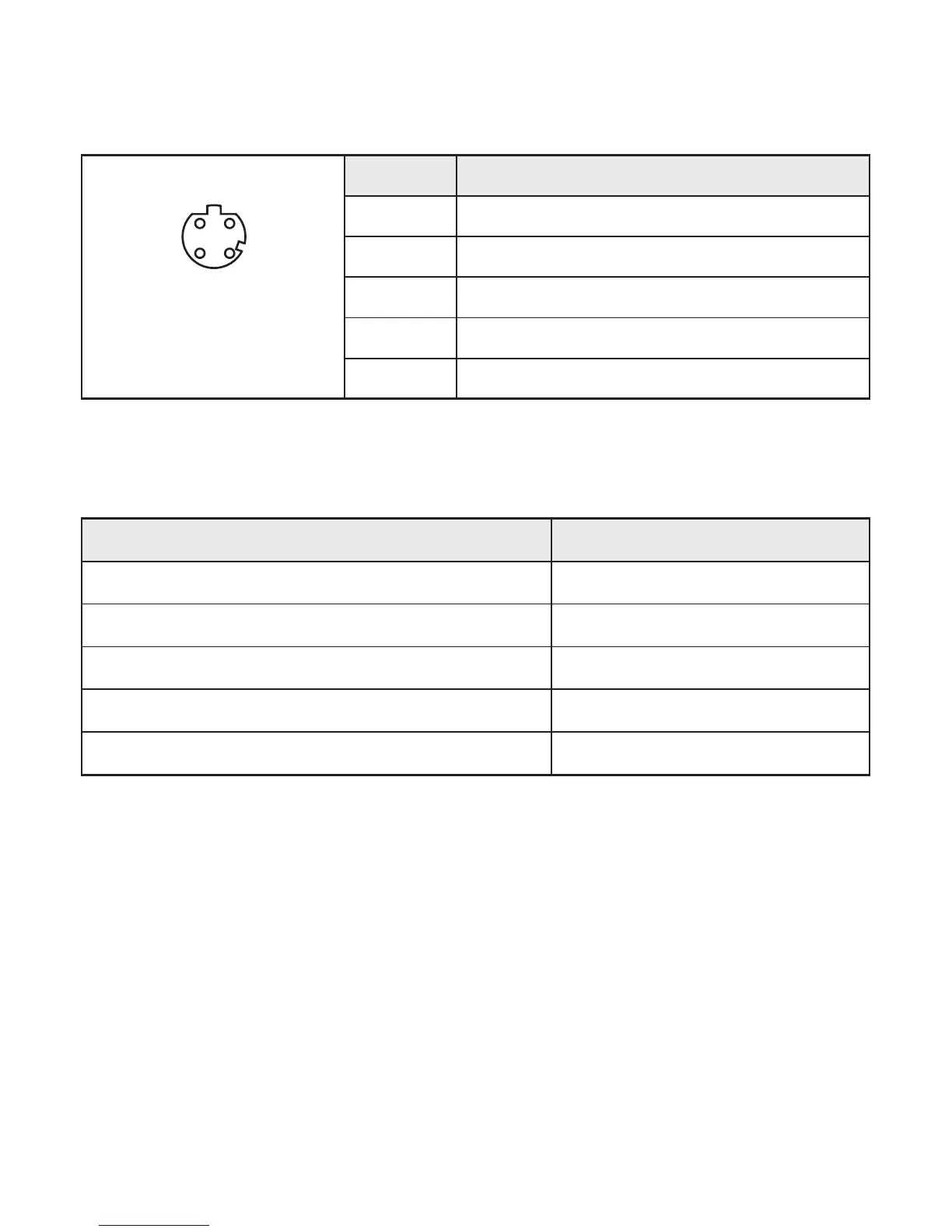

Pin Connection
1 TD+
2 RD+
3 TD-
Note: screened connection
cable required
4 RD-
6.2.1 Factory setting of the Ethernet parameters
The following values are preset on delivery of the device:
Parameters Factory setting
IP address 192�168�0�79
Gateway address 192�168�0�100
Subnet mask 255�255�255�0
Auto-negotiation on
DHCP off
The settings can be changed via the unit’s webserver or via the PROFINET IO
controller�
