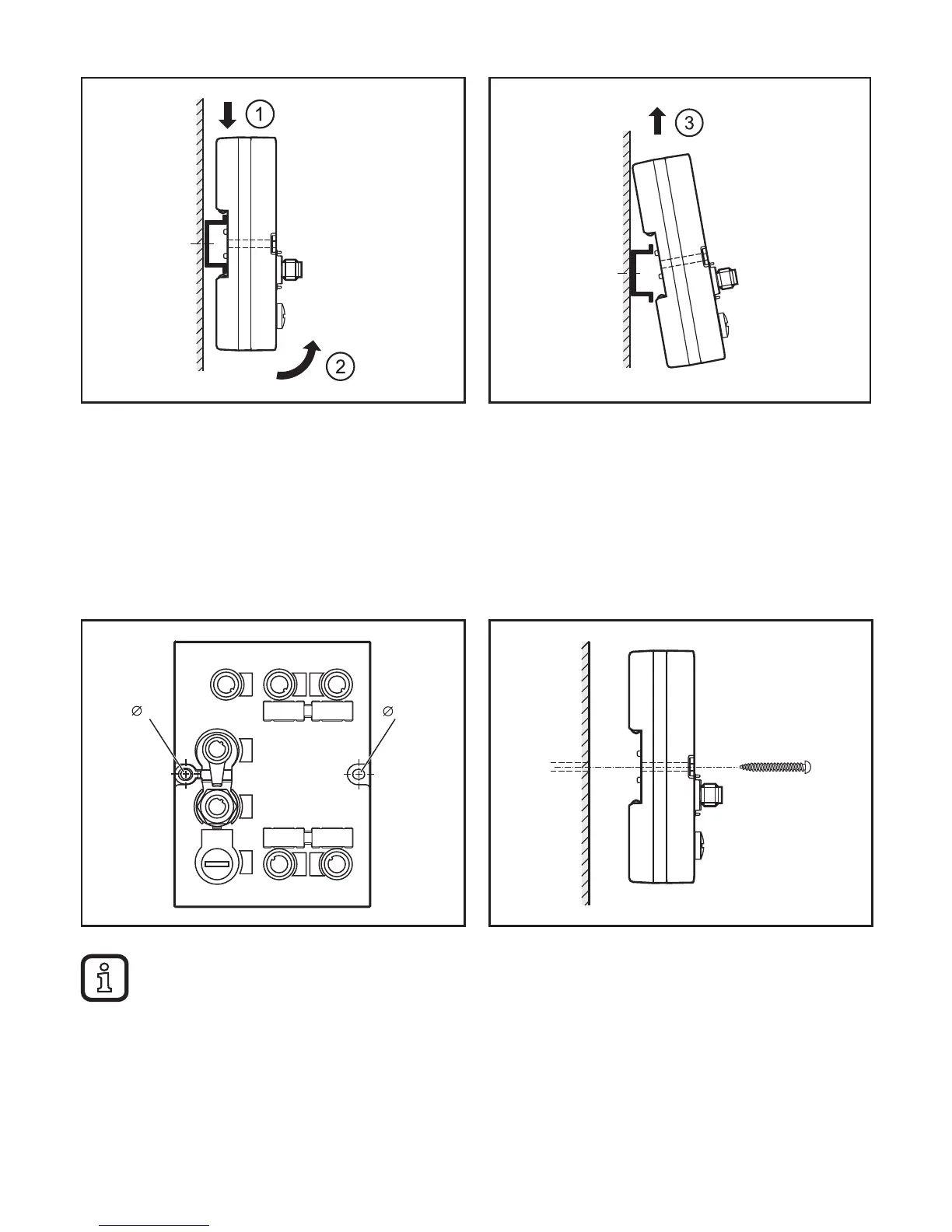

5.3.2 Removal
1� Press device down�
2� Simultaneously rotate the device away from the DIN rail�
3� Remove the device from the top�
5.3.3 Mounting plate
The device can be fixed to a mounting plate using 2 screws (M4 x 35 or longer)�
M4
M4
This installation mode is recommended for vibration and shock require-
ments�
