6.3 Process connections IO-1 ... IO-4
Each process connection can be used as input/output to IEC 61131 or for con-
nection of an RFID read/write head� The connections are set via the hardware
configuration of the PROFINET IO controller�
3
12
4
5

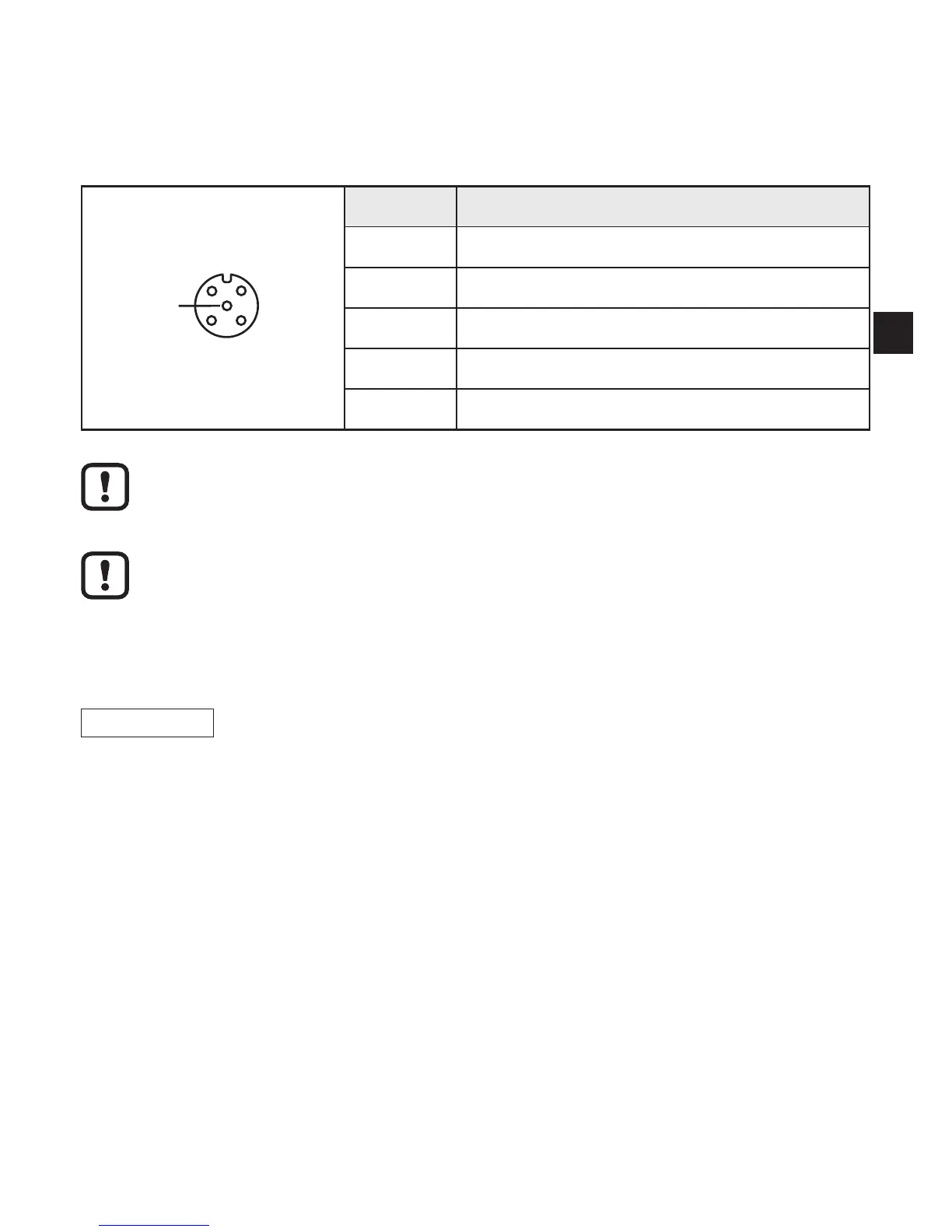

Pin Connection
1 L+
2 Switching input (I/Q)
3 L-
4 Switching output (C/Qo) or input (C/Qi)
5 Not used
The evaluation unit has to be disconnected before field units are connected�
Please note that the total current consumption of the device must not
exceed the value of 3 A�
You can find detailed information about the available operating modes in the
device manual at:
www�ifm�com
→ data sheet search → DTE101 → Operating instructions
