IFM Electronic DTE101 - 5�2 Installation Orientation; 5�3 Mounting Options; 5�3�1 Mounting on DIN Rail

7
UK
5.2 Installation orientation
The installation orientation can be freely selected�
In a wet environment upside-down mounting is not permitted�
5.3 Mounting options

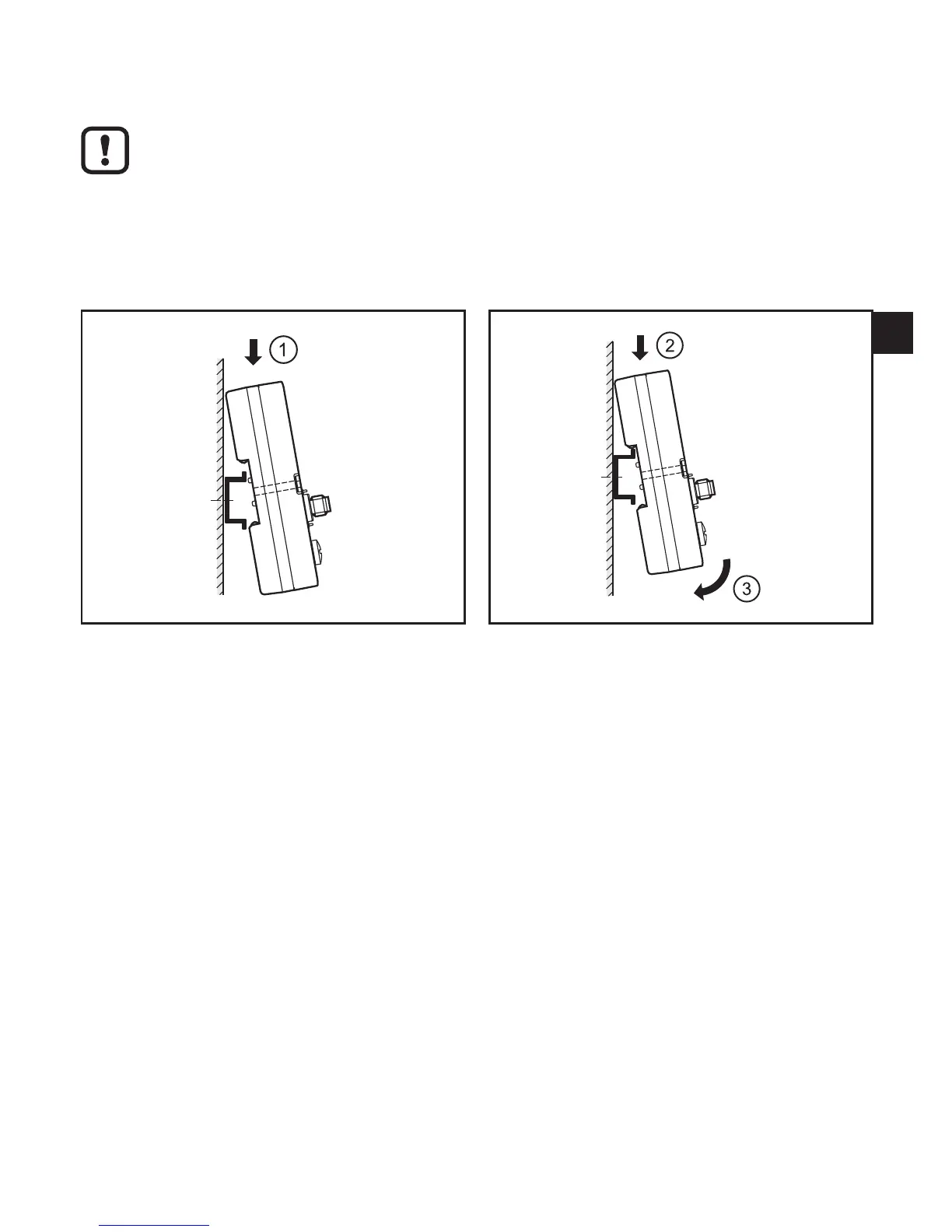

5.3.1 Mounting on DIN rail
The device can be installed on a DIN rail of type NS35/15 or NS35/7�5�
1� Angle the device and place the fixing clamp onto the upper edge of the DIN rail�
2� Press device down�
3� Simultaneously rotate the device in the direction of the DIN rail�
