9
UK

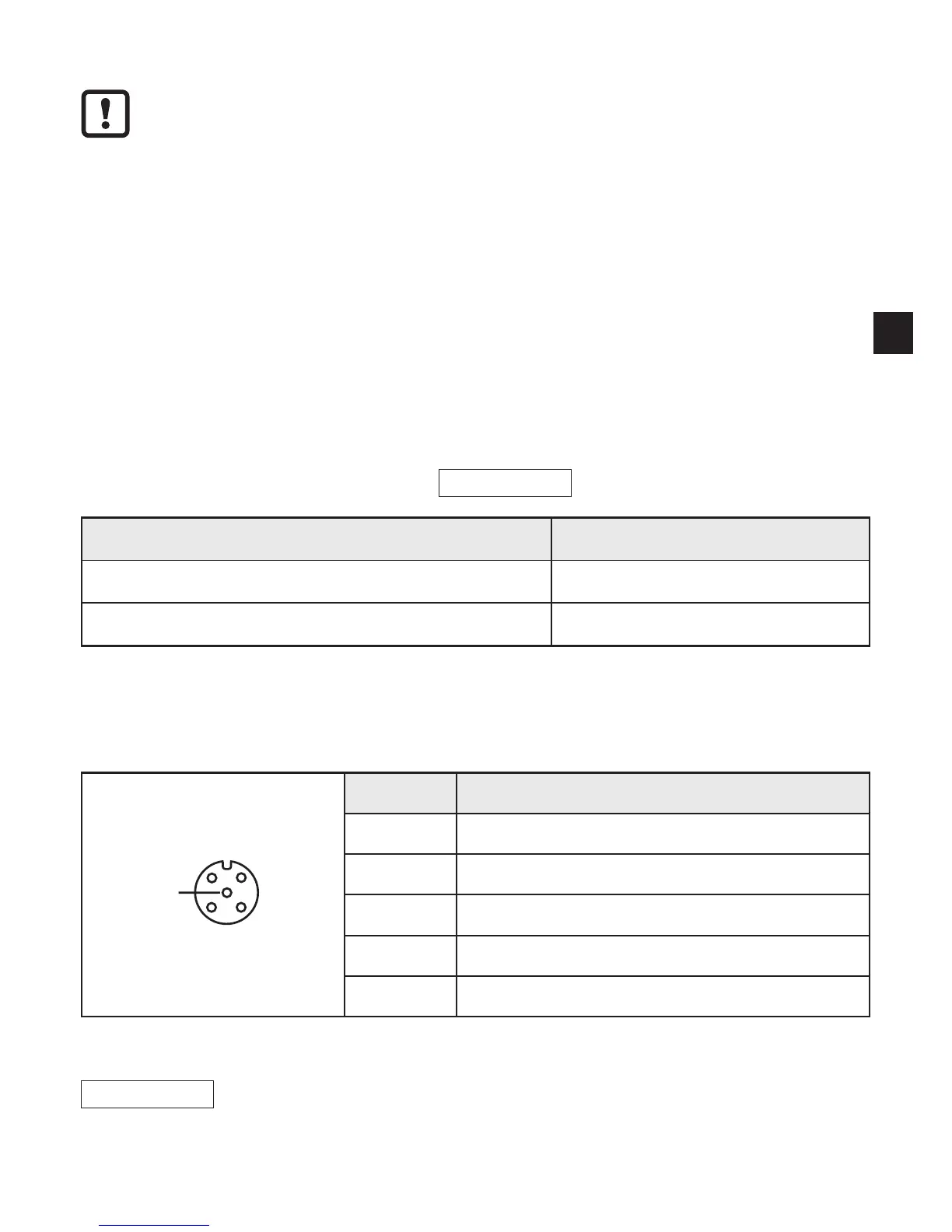

6 Electrical connection
The device must be connected by a qualified electrician�
► Disconnect power before connecting the device�
► Observe the national and international regulations for the installation of
electrical equipment�
► Ensure voltage supply to EN 50178, SELV, PELV�
► Connect the device according to the indicated pin connection�
► A total current consumption of the device of 3 A must not be exceeded�
Please note the following points to ensure protection rating IP 67:
► Cover the unused sockets with protective caps�
► Tighten all protective caps and connectors with a tightening torque of 1 Nm�
You will find matching accessories at
www�ifm�com
Accessories ifm article number
Protective cap E73004
Torque wrench E70390
6.1 AUX voltage supply
► Connect the device to the voltage supply using an M12 connection cable�
