5 Electrical connection
The unit must be connected by a qualified electrician�
The national and international regulations for the installation of electrical
equipment must be adhered to�
For the scope of validity cULus:
The Sensor shall be connected only by using any R/C (CYJV2) cord,
having suitable ratings�
Caution: For the output circuit the same protective measures as for the
supply circuit must be taken�
Insert a miniature fuse according to IEC60127-2 Sheet 1 (≤ 5 A fast
acting)�
The permissible potential difference between supply and output circuit is
max� 300 V�
► Disconnect power�

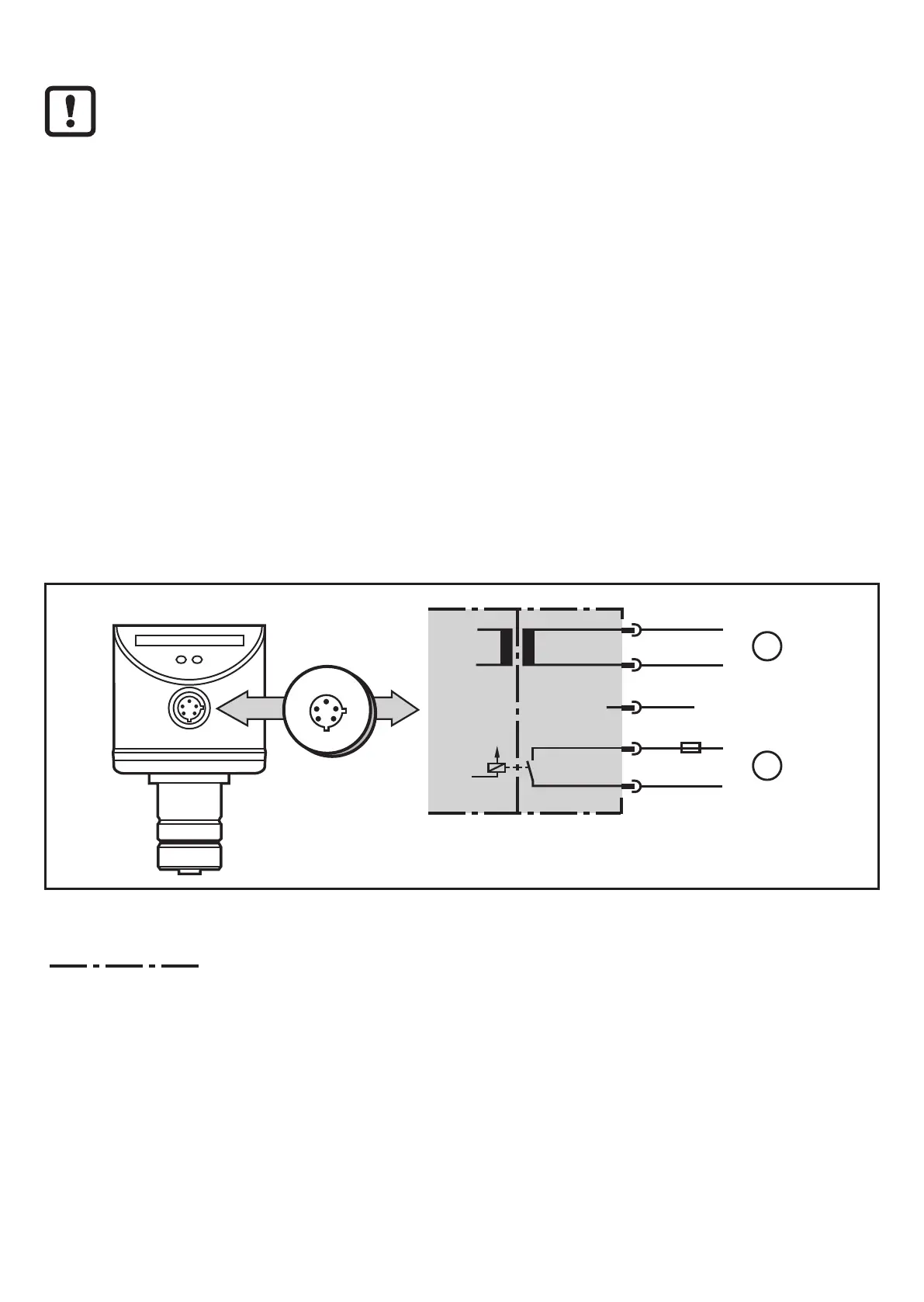

► Connect the unit as follows:
4
15
2
3
L1
N
n.c.
5
2
4
3
1
V
DD
A
B
A: supply circuit
B: output circuit
:
safe separation
ifm-sockets are available as accessories:
Order no� E11248, E11249, E11250, E11251
