When set to the window function the upper limit value (FHx) and the lower
limit value (FLx) have a fixed hysteresis of 0�25 % of the final value of the
measuring range� This keeps the switching state of the output stable if the
temperature varies slightly�
3.2 Display colour change
The colour of the characters in the display can be set via the parameter [colr]�
With the parameters rED (red) and GrEn (green), the display is permanently set to
one colour� Via further parameters, the colour of the characters changes according
to the measured value:
OUT1 OUT2 OUT1 and OUT2 Colour change to���
Parameter r1ou r2ou r-cF, r-12 red
G1ou G2ou G-cF, G-12 green

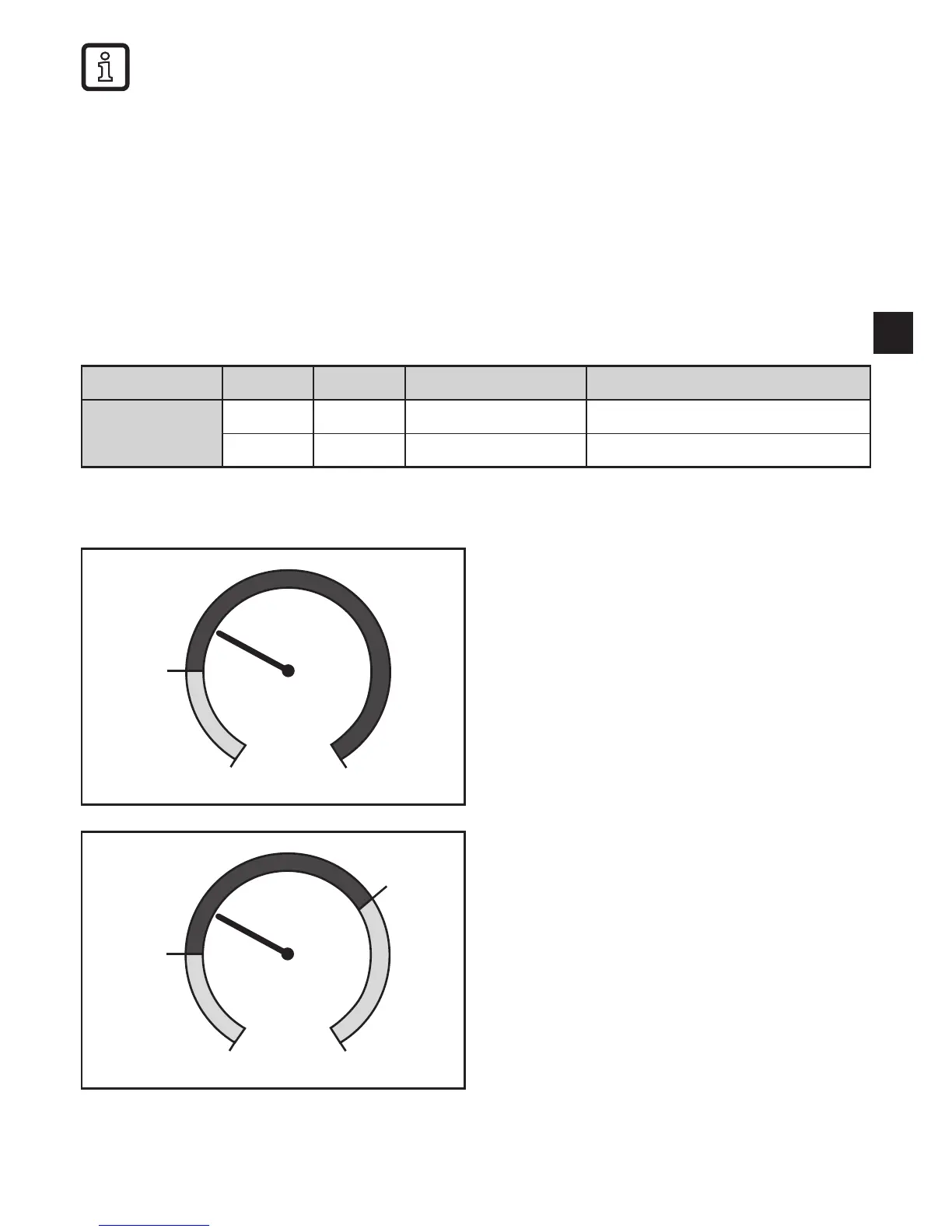

3.2.1 Parameter r1ou, r2ou, G1ou, G2ou
SP1/
SP2
MAW MEW
Hysteresis function:
Colour change if measured value
is above the switch point
FL1/
FL2
FH1/
FH2
MAW MEW
Window function:
Colour change if measured value
is within the window range
MAW = initial value of the measuring range
MEW = final value of the measuring range
