CompactModul Metall CR2032
16
Control systems
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen
14.08.2014We reserve the right to make technical alterations without prior notice. CR2032 / page 4
(PWM)
(PWM)
(PWM)
(PWM)
Abbreviations
CAN
H
= CAN interface (high)
CAN
L
= CAN interface (low)
GND
O
= ground (output)
GND
S
= ground (module)
PWM = output for pulse-width modulated signals
VBB
C
= operating voltage (via CANin/CANout plug)
VBB
O
= operating voltage (output)
VBB
S
= operating voltage (module)

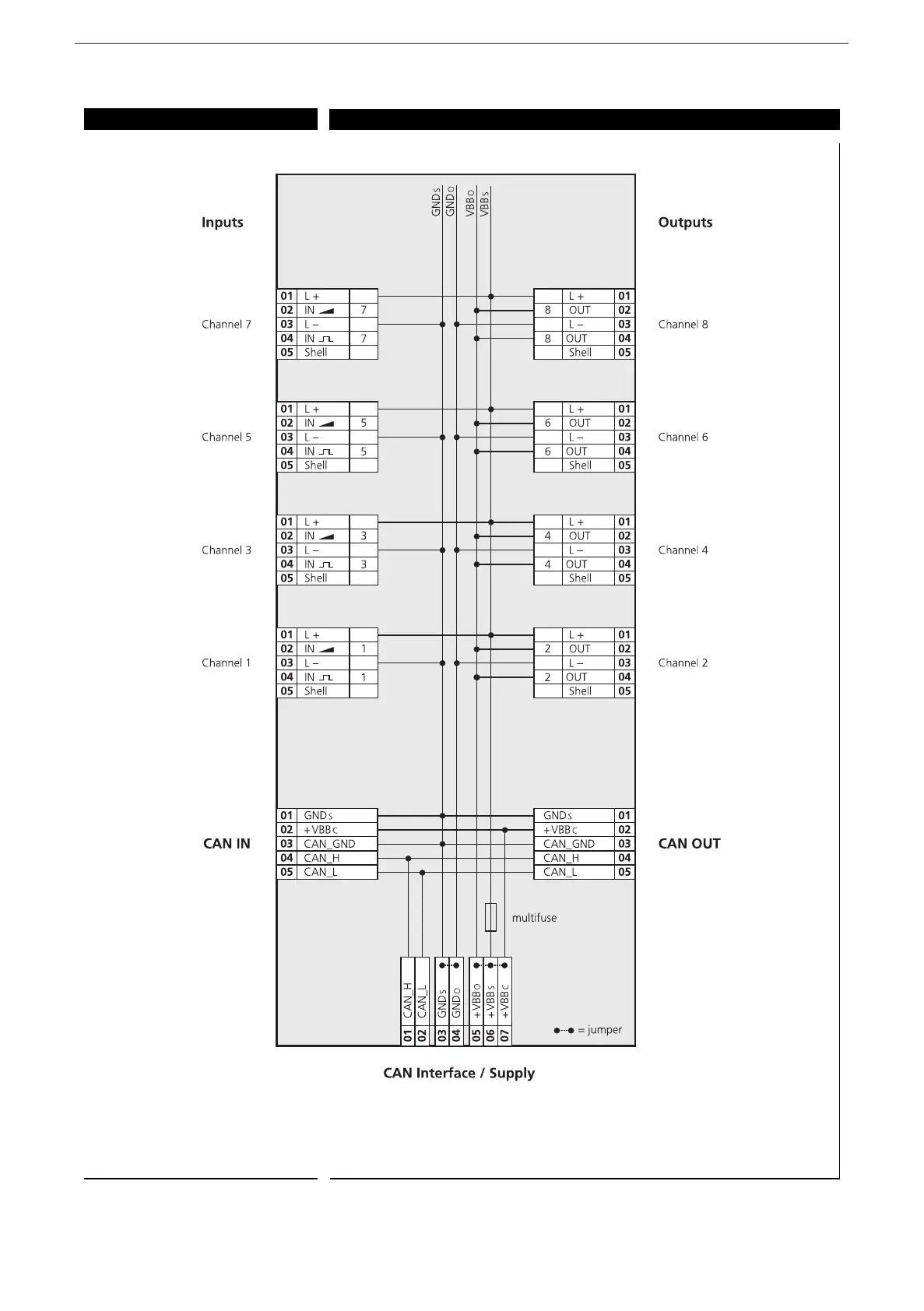

CR2032 Wiring
