CompactModul Metall CR2032
8
7 Set-up
7.1 PLC configuration in CODESYS 2.3
Parameter setting of the device functions and of the CAN interface is directly done
from the application programmed with CODESYS 2�3� To do so, the "Electronic
Data Sheet" (EDS) is integrated via the CODESYS PLC configuration�

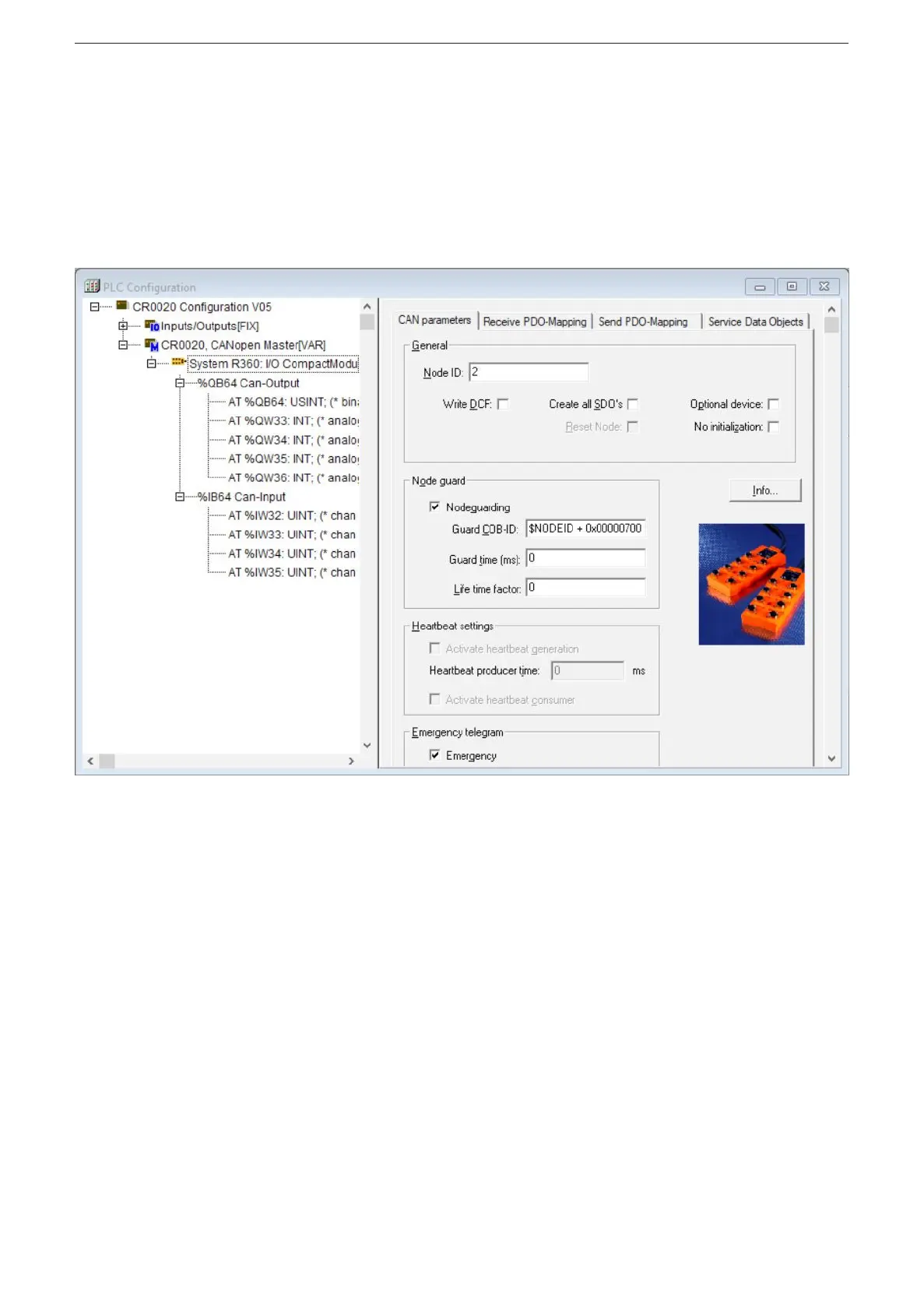

CODESYS dialogue "PLC configuration" (example)
For a description of the setting and application of the "PLC configuration“ dialogue
see the CODESY manual and the CODESYS online help�
