IFM CR2016 - Mounting

CabinetModule CR2016
6
5 Mounting
5.1 Mounting location
The device is to be mounted in a dry and enclosed environment (e�g� control panel
of the driver‘s cab, separate control boxes, etc�)�

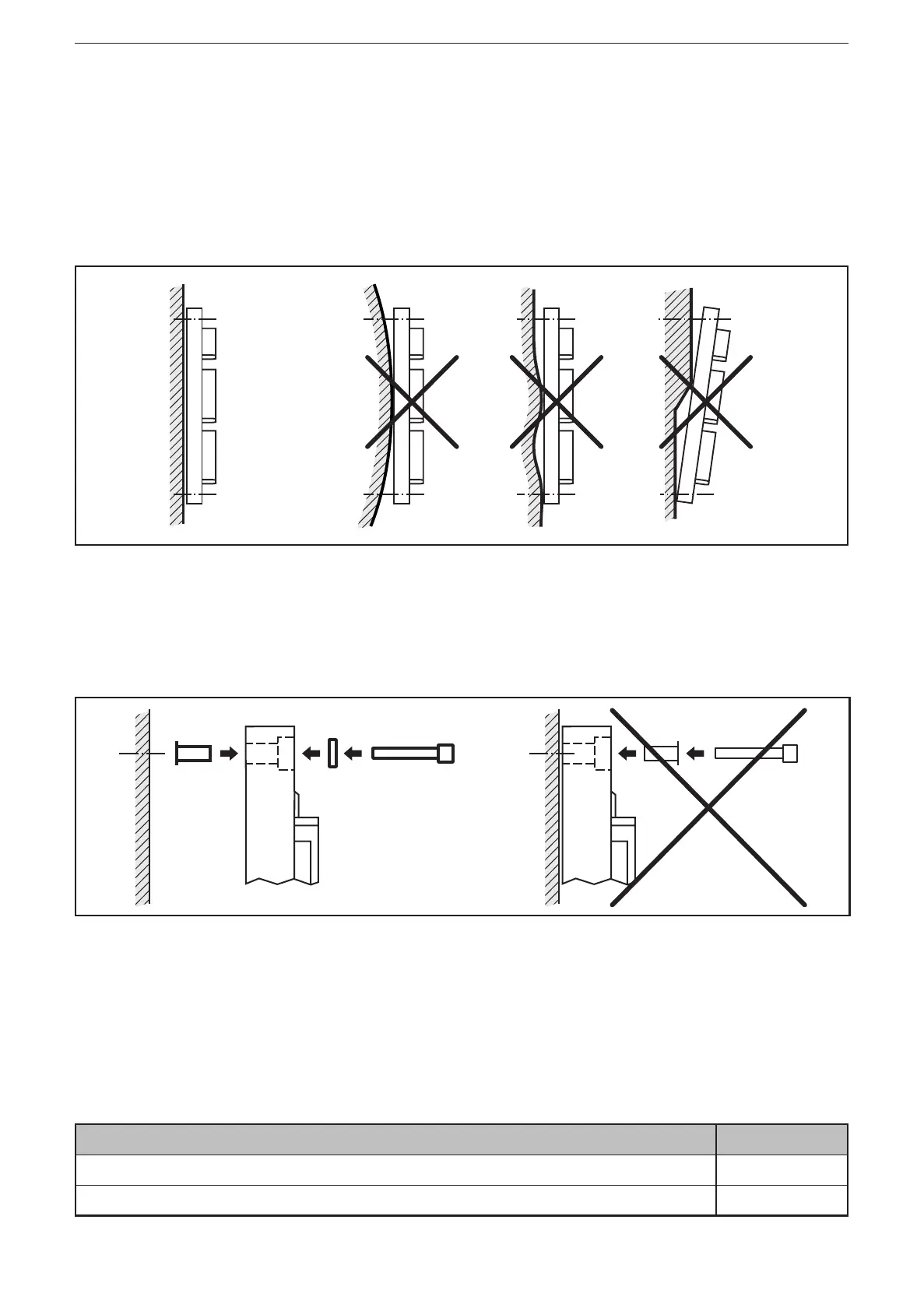

The housing must not be exposed to any torsion forces or mechanical stress�
5.2 Fixing
Insert the enclosed tubular rivets from the back of the module in the 4 fixing
holes�
► Fix the module using 4 washers and screws�
► Tighten the screws alternately crosswise�
Tightening torque: 1�5 Nm
Mounting position: any
Hole dimensions: see back of the module or → 9 Technical data�
Screws to be used (M4 x L), e.g.: Standard
Cylinder screws with hexagon socket DIN 912
Cylinder screws with hexagon socket and low head DIN 7984
