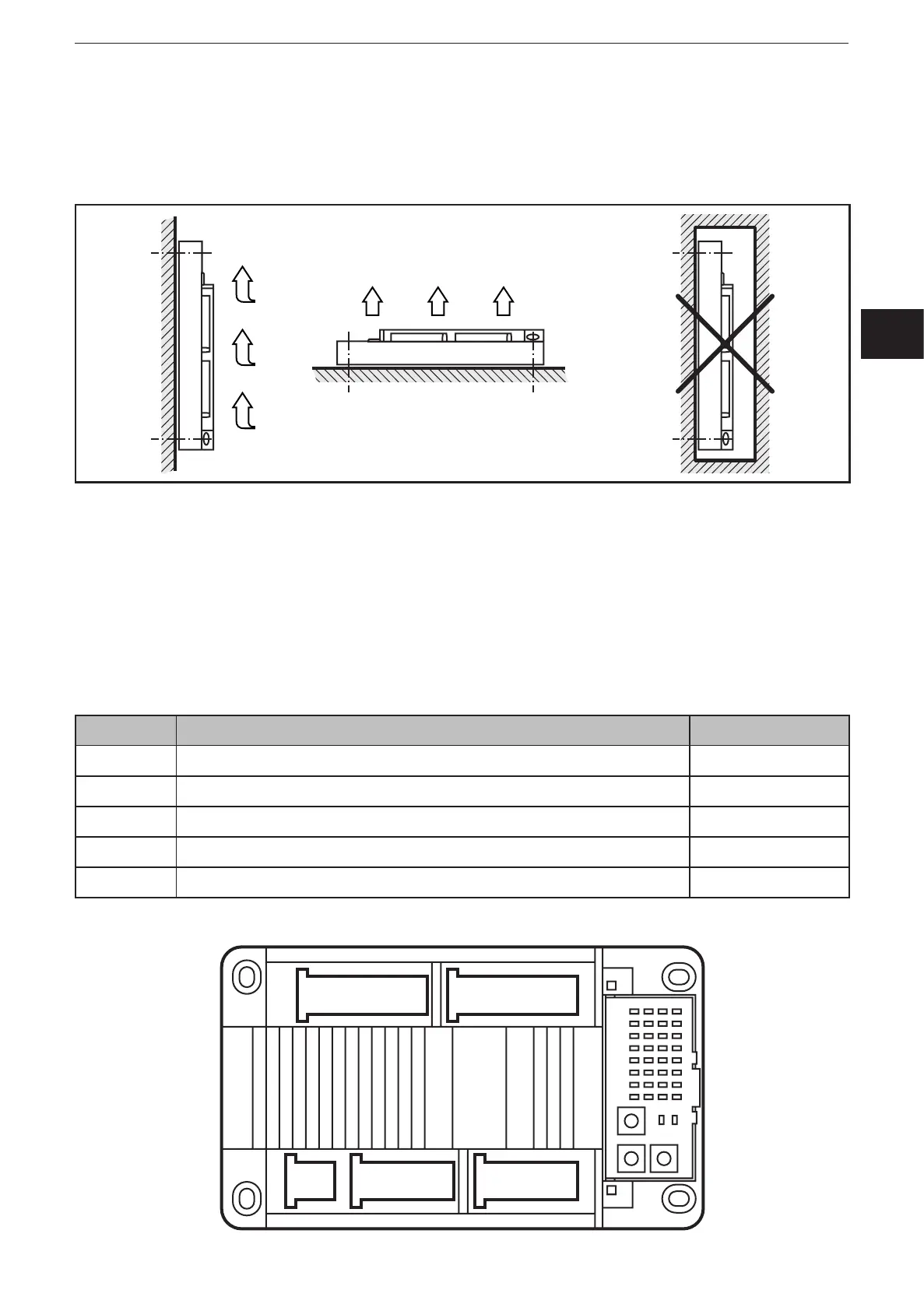

5.3 Cooling
► As the internal heating of the electronics is conducted away via the housing,
ensure sufficient heat dissipation�
6 Electrical connection
6.1 Connectors
The supply cables, interfaces and inputs/outputs are connected via AMP crimp
connectors on the front of the unit�
Plug Connection Number of poles
P/N1 supply, CAN interfaces 6
X10 inputs 01���08 (digital) 18
X11 inputs 09���12 (digital), 01���04 (analogue) 18
X20 outputs 01���08 (digital), 01���04 (PWM) 14
X21 outputs 09���16 (digital) 14
  
 
