IFM G2001S - 7�2 Automatic or Manual Operation; Feedback Contacts

10
After power on or a reset the unit carries out self diagnostic functions� After this
self diagnosis the unit is ready for operation�

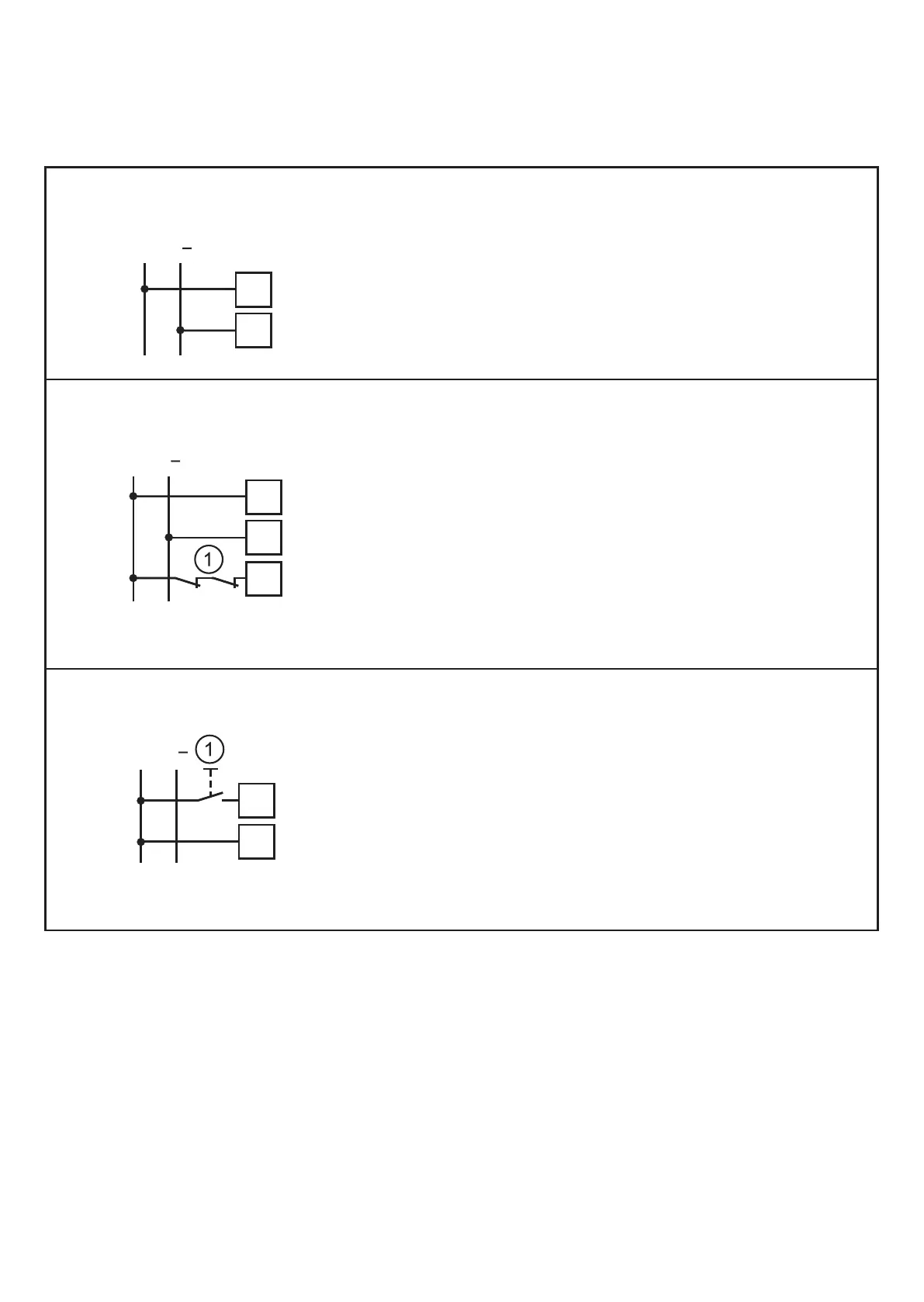

7.2 Automatic or manual operation / feedback contacts
Automatic operation
L
L
+
6
15
Automatic activation without monitoring�
Automatic operation with monitoring of the feedback contacts
L
L
+
6
15
20
Release is made when the feedback contacts are
closed�
Consider the current flowing through the feedback
contacts (→ 10 Technical data)�
1: Feedback contacts
Manual operation
15
6
L
L
+
Activate the relay outputs:
► Press and release restart (> 100 ms)�
1: Restart
