IFM G2001S - 7�5 Override; 7�6 Safety Light Curtains; Light Grids

13
UK

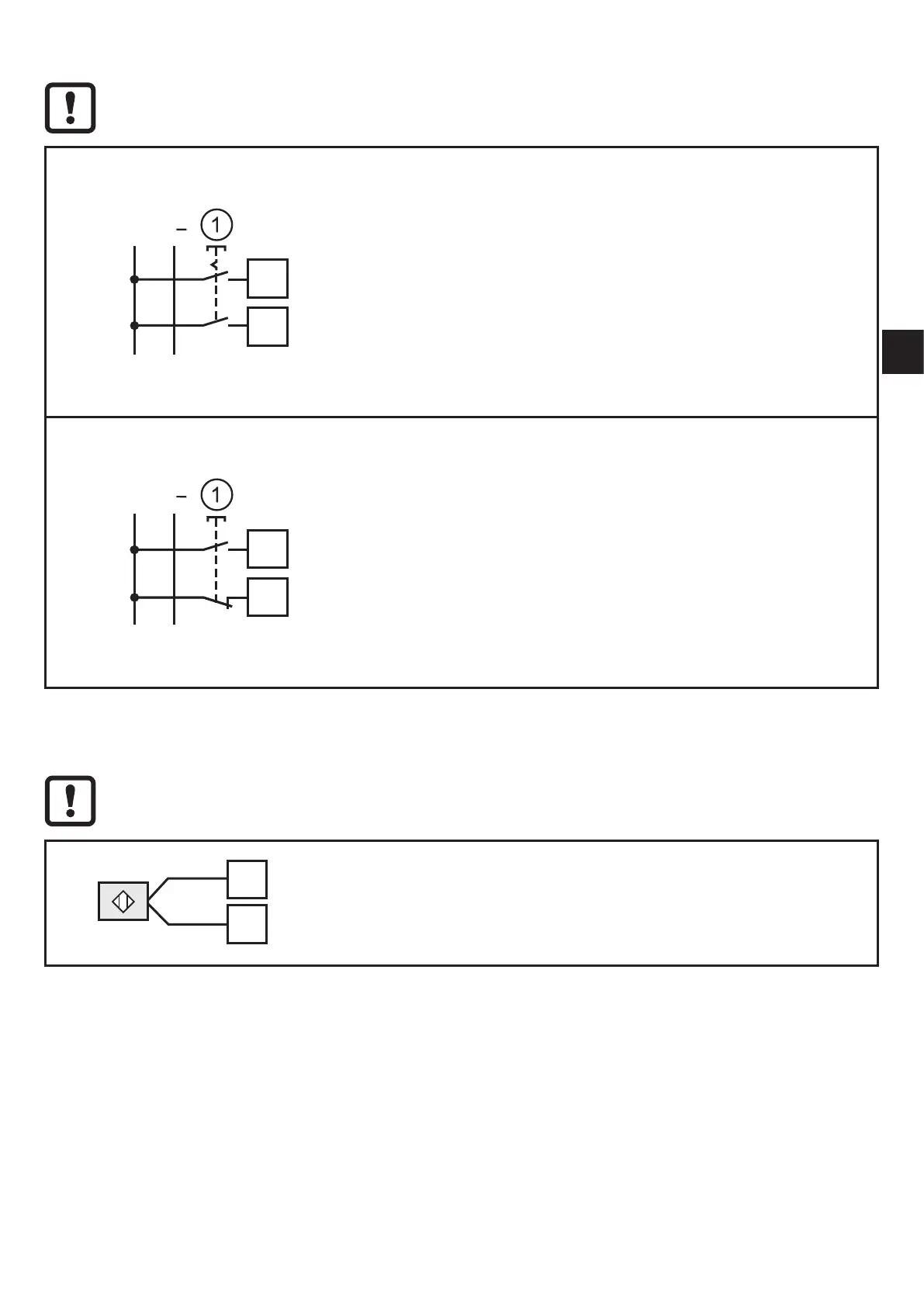

7.5 Override
Do not short-circuit terminals 7 and 8�
Override with continuous command
L
L
+
8
7
► Use a key-operated switch with spring return�
The command pulse must be applied simultaneously
to both terminals within 400 ms�
1: Key-operated switch
Override with command pulse
L
L
+
8
7
The command pulse must invert the condition of
terminals 7 and 8 within 400 ms�
1: Override button
7.6 Safety light curtains / light grids
Do not short-circuit terminals 17 and 18�
18
17
► Connect the OSSD signals to terminals 17 and
18�
