IFM G2001S - 7�4 Timeout

12
Muting lamp
10
L
L
+

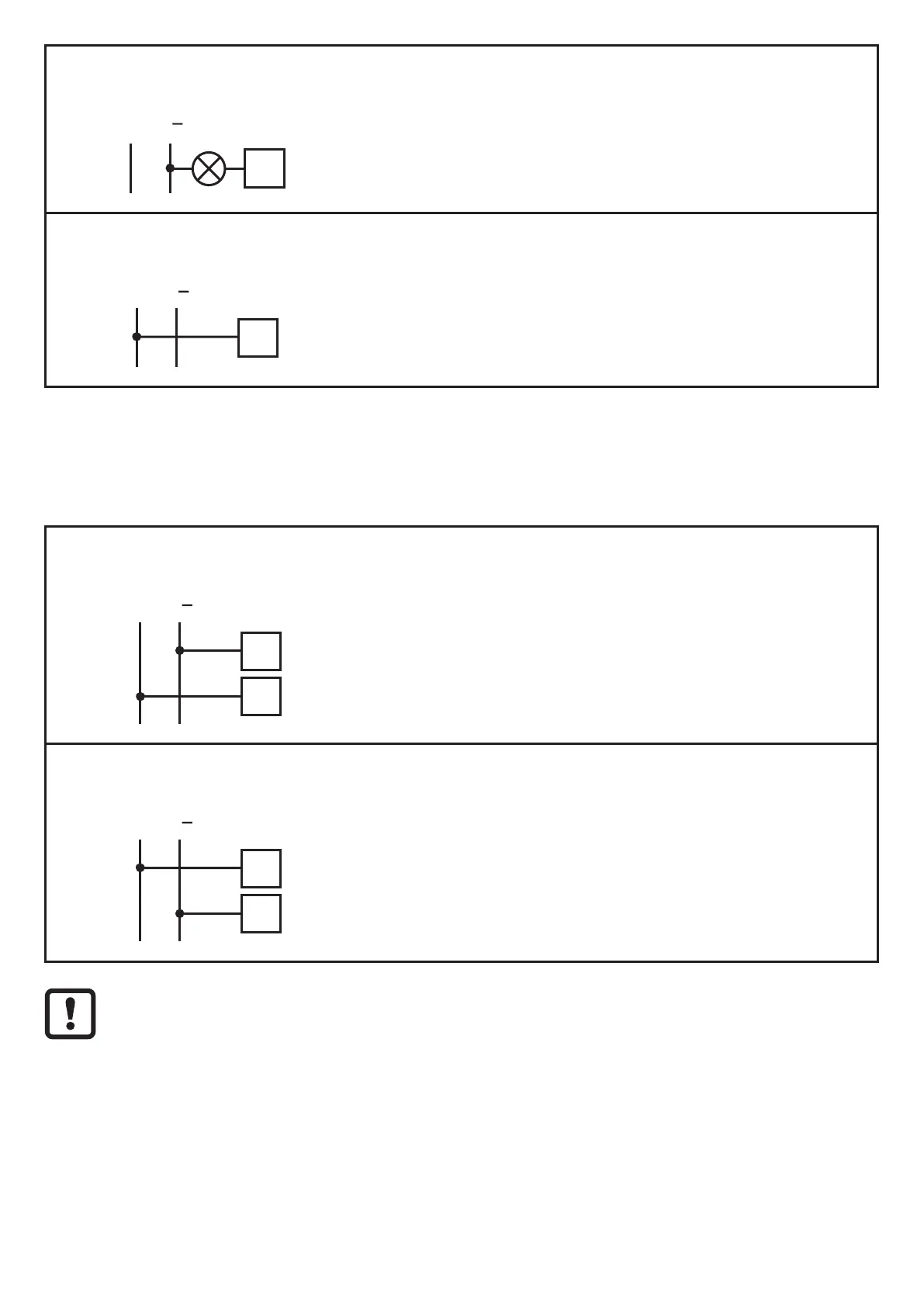

Prerequisite for the muting function is the connection
of a muting lamp (0,5���5 W)�
Muting activation
L
L
+
11
To start the muting function a high signal (24 V) has
to be applied to terminal 11�
A continuous signal or a pulse > 1 s can be used�
7.4 Timeout
Timeout is a time limit of the muting function�
Timeout 30 seconds
L
L
+
5
4
The muting function ends after 30 s�
Unlimited timeout
L
L
+
5
4
When the muting function has started it is available
for an unlimited period of time as long as the muting
sensors detect an object�
If unlimited timeout is used, additional measures are to be taken to avoid a
permanent muting function�
