Substances such as screw retaining compounds may migrate into the

medium� Make sure that they are harmless!

When using mechanical means of securing (e�g� tooth lock washer), protruding

edges must be avoided� They may cause interference reflection�

6.2.2 Installation of the coaxial pipe

This subchapter is only relevant if the unit is to be operated with a coaxial probe�

The coaxial pipe and the rod must be of the same end length� The coaxial

pipe can be shortened (→ 6.3.2).

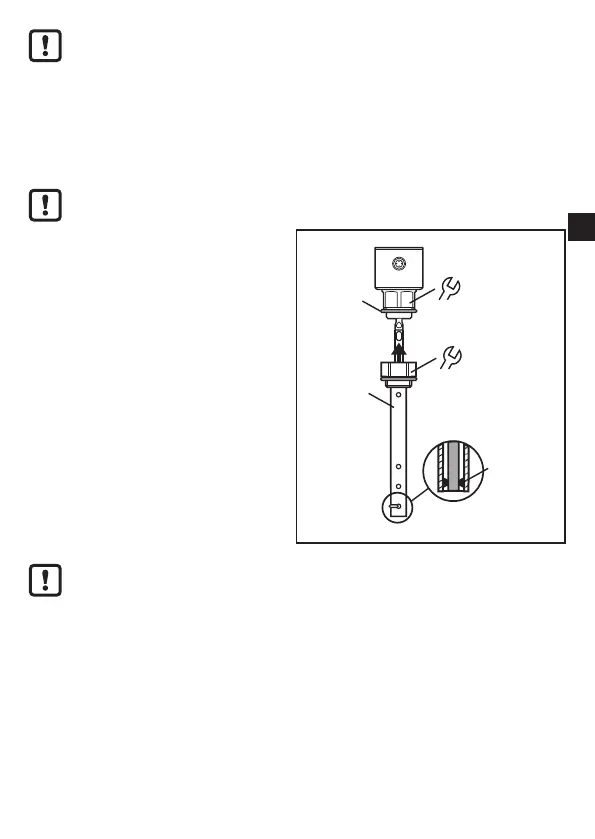

► Screw the rod to the unit and tighten

it� Recommended tightening torque:

4 Nm�

► Slide the sensor seal (A) onto the

thread�

► Slide the coaxial pipe (B) onto the

rod� Carefully center it and carefully

move the rod through the centring

piece (C) (for lengths > 1400 mm

through both centring pieces) of the

coaxial pipe� Do not damage the

centring pieces�

► Screw onto the sensor thread and

tighten�

If used under DNV GL conditions (if approval available for the device) and if

a coaxial pipe of 700 mm or longer is used, additional centring pieces must

be mounted in this coaxial pipe (→ Accessories).
