6.4.1 Installation in closed metal tanks (without flange plate)

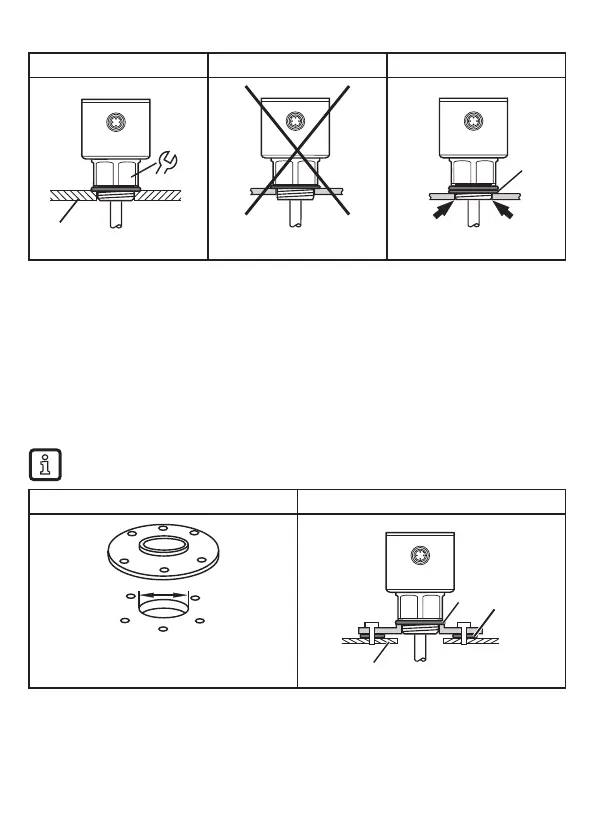

fig. 6-7 fig. 6-8 fig. 6-9

► The lower edge of the process connection should be flush with the installation

environment (fig� 6-7)�

► Avoid non-flush installation (fig� 6-8)�

► Use seals or washers (D in fig� 6-9) to reach the required height�

► For tanks with thick walls arrange for sufficiently deep recesses to ensure flush

installation�

6.4.2 Installation in closed metal tanks (with flange plate)

Flange plates are not supplied� They must be ordered separately

(→ 3 Items supplied).

fig. 6-10 fig. 6-11

► Arrange for a bore hole in the tank lid� It must have a minimum diameter (d) to

enable sufficient transfer of the measured signal to the probe (Abb� 6-10)� The

diameter depends on the wall thickness of the tank lid:
