6.3 Shortening of the probe

6.3.1 How to shorten the rod and to determine its length L

The rod can be shortened to adapt the probe to different tank heights�

Ensure that the probe length is never below the minimum permissible

probe length of 100 mm (L

min

)! The unit does not support probe lengths

below 100 mm� If shorter probes are used, measurement errors can occur�

Proceed as follows:

► Screw the probe to the unit�

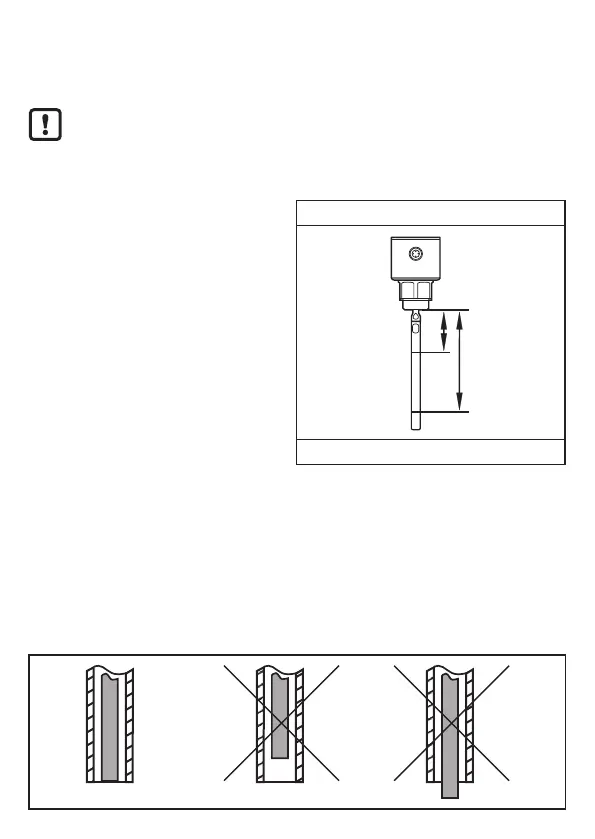

► Mark the desired length (L) on the

rod� The reference point is the lower

edge of the process connection�

► Remove the rod from the unit�

► Shorten rod at the mark�

fig. 6-5

min

= 100 mm

► Remove all burrs and sharp edges�

► Screw the rod to the unit again and tighten it� Recommended tightening torque:

4 Nm�

► Precisely measure the probe length L, note the value� It must be entered during

parameter setting of the unit�

6.3.2 Shortening of the coaxial pipe

The coaxial pipe and the rod must be of the same end length:
