4 Installation
► Ensure that the system is free of pressure during installation�
► Ensure that no media can leak at the mounting location during
installation�

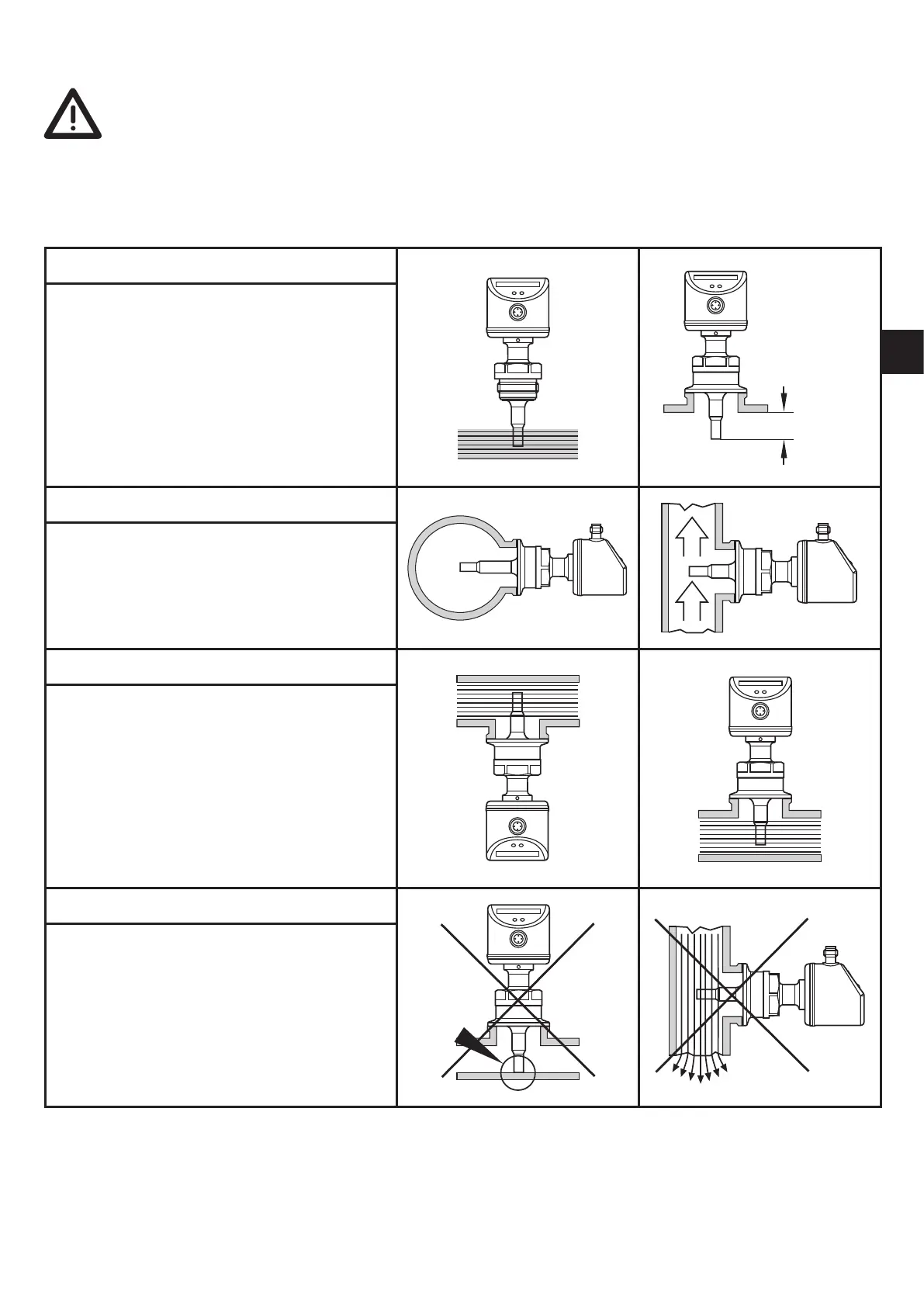

4.1 Installation location
General
≥12 mm
• The sensor tip is to be completely
surrounded by the medium�
• Immersion depth of the probe:
minimum 12 mm�
Recommended
• For horizontal pipes: mounting from
the side�
• For vertical pipes: mounting in the
rising pipe�
Conditionally possible
• Horizontal pipe /mounting from
the bottom: if the pipe is free from
build-up�
• Horizontal pipe /mounting from the
top: if the pipe is completely filled
with medium�
To avoid
• The sensor tip must not be in
contact with the pipe wall�
• Do not mount in downpipes that are
open at the bottom!
