IFM SI6600 - Electrical Connection

9
UK

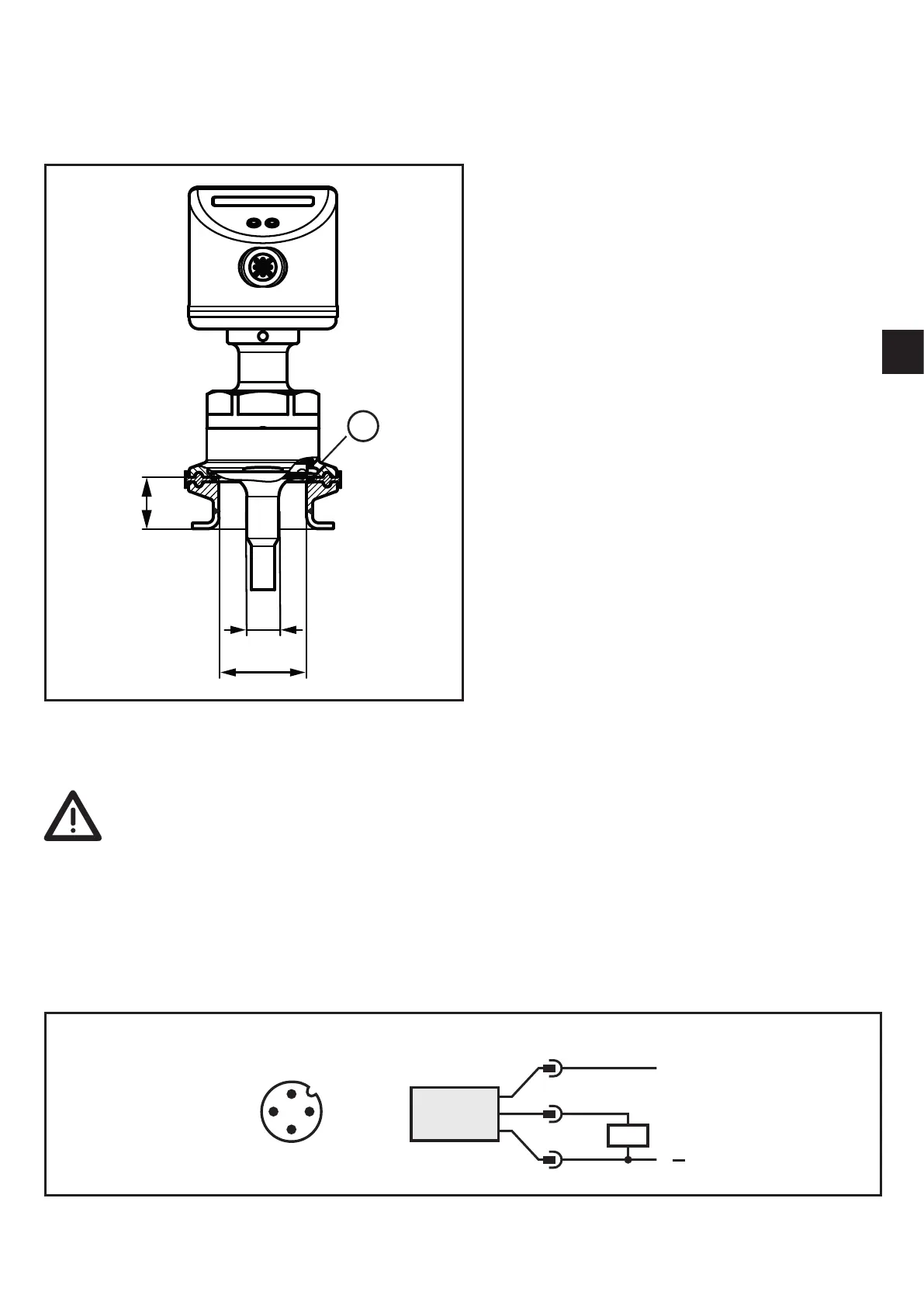

► Leakage ports must be clearly visible and must be installed facing downwards
for vertical pipes�
► To avoid dead space adhere to the dimensions: L < (D - d)�
1
d
D
L
1: leakage port
5 Electrical connection
The unit must be connected by a qualified electrician�
The national and international regulations for the installation of electrical
equipment must be adhered to�
Voltage supply to EN 50178, SELV, PELV�
► Disconnect power�
► Connect the unit as follows:













Core colours of ifm sockets:
1 = BN (brown), 3 = BU (blue), 4 = BK (black)
