Joint kit – Documentation (#4; 2016-12)
igus
®
GmbH | Martin Raak | Tel. +49 (0)2203 9649 409 | mraak@igus.de 21

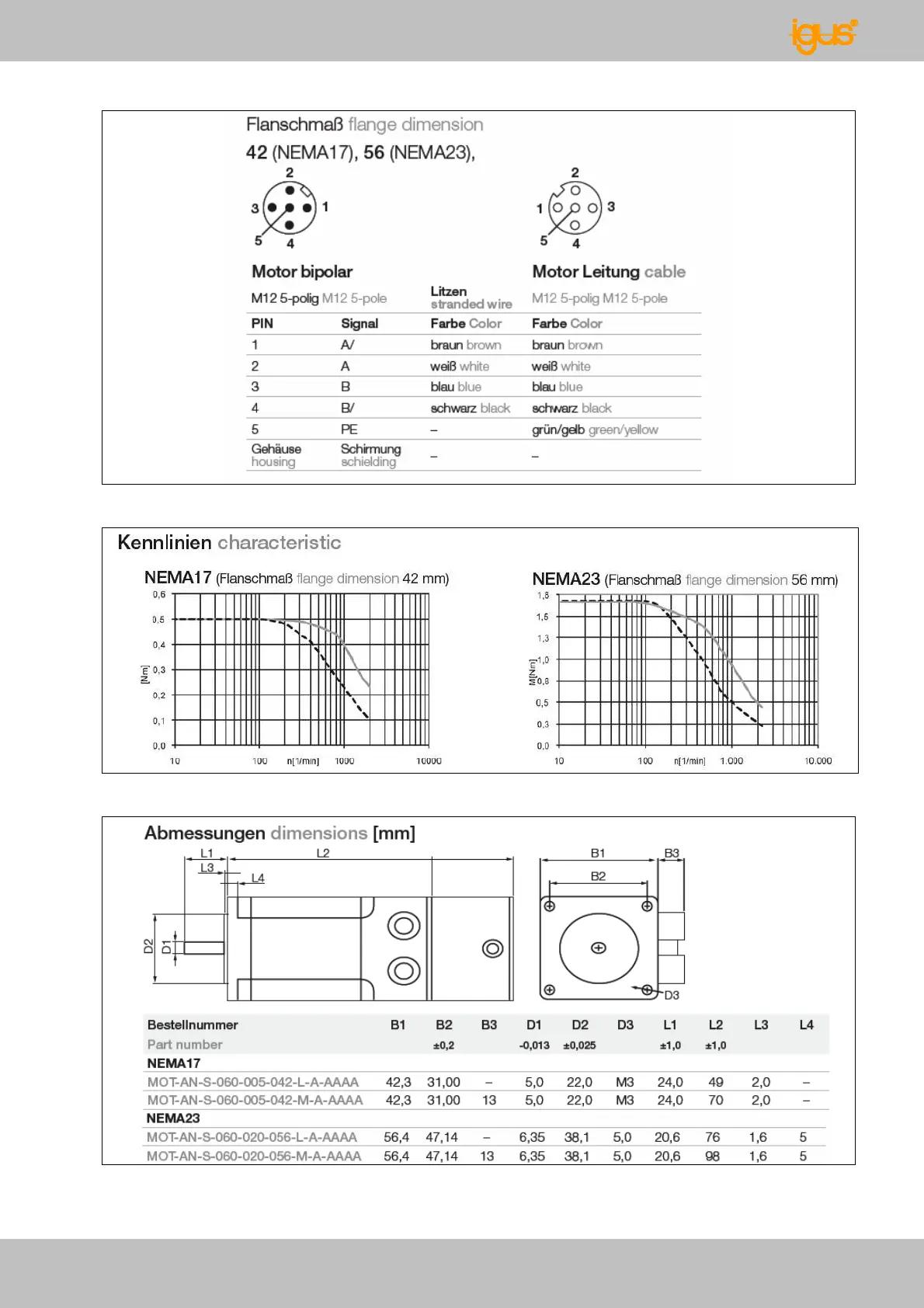

Fig. 40: Connector assignments for motors
Fig. 41: Characteristic progression for motors
Fig. 42: Motor dimensions
