Actuators
It is possible to connect various actuators to the last connecting tube of the articulated
arm. We generally recommend a plastic adapter element for this. igus
®
GmbH already
provides standard adapter elements for pneumatic grippers from FESTO
®
and SCHUNK
®
,
for electrical grippers from GIMATIC
®
, and also for suction systems. Cameras or lighting
sources (e.g. LED) can also be adapted.

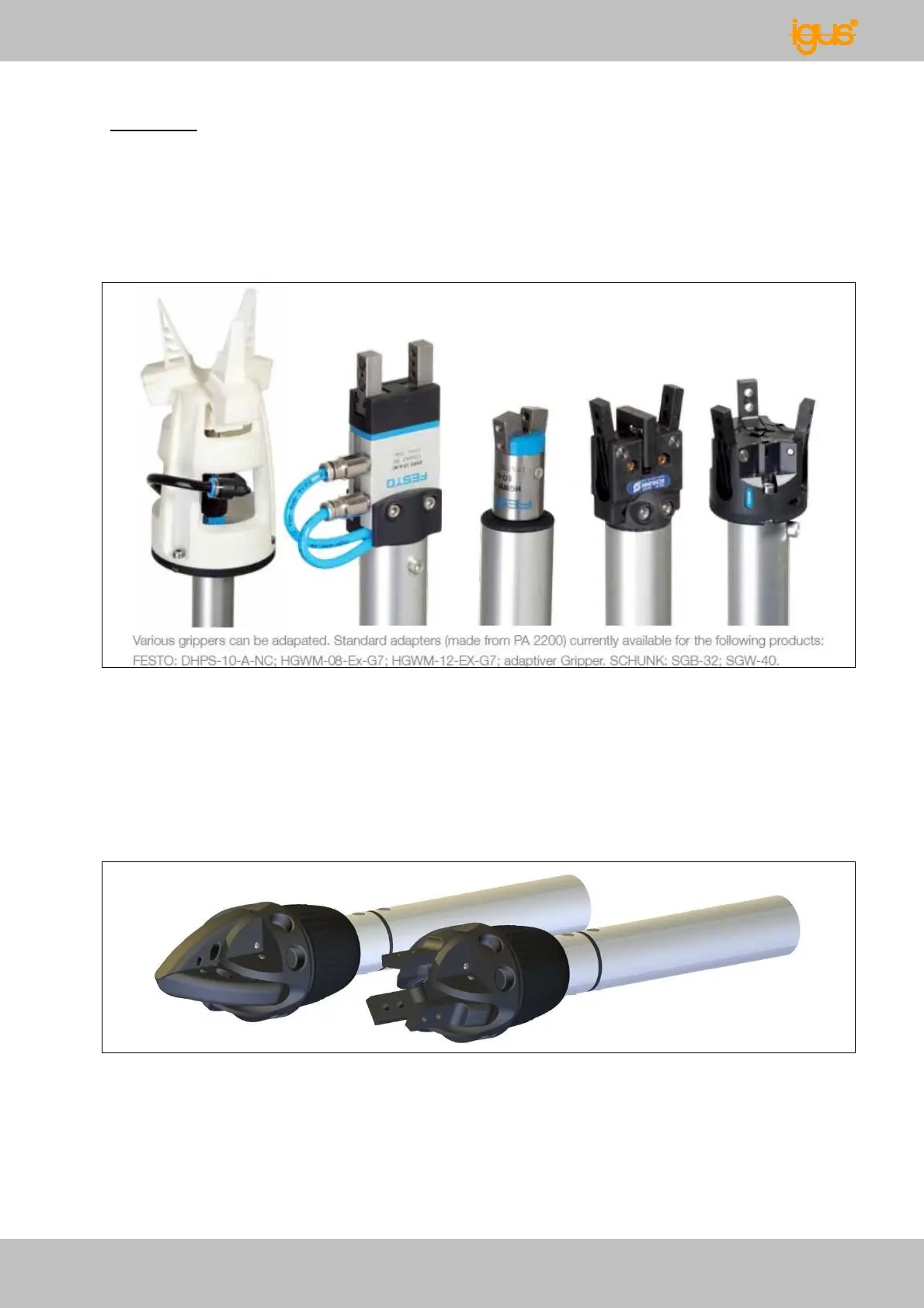

Fig. 28: standardized adaptable pneumatic grippers
Our own draw wire gripper from igus
®
GmbH can also be mounted on the tube. 2 versions
are possible:
1) Wire force opens, spring force closes,
2) wire force closes, spring force opens.
The spring force can be configured between 20 and 100 N.
(technical documentation of the gripper under design, status 08-2012)
Fig. 29: igus
®
electrical gripper RL-50-GRI-03-xx with standard (left) and universal jaws
(right)
