igus robolink - Dimensioned Drawings

robolink
®
Joint kit – Documentation (#4; 2016-12)
igus
®
GmbH | Martin Raak | Tel. +49 (0)2203 9649 409 | mraak@igus.de 28

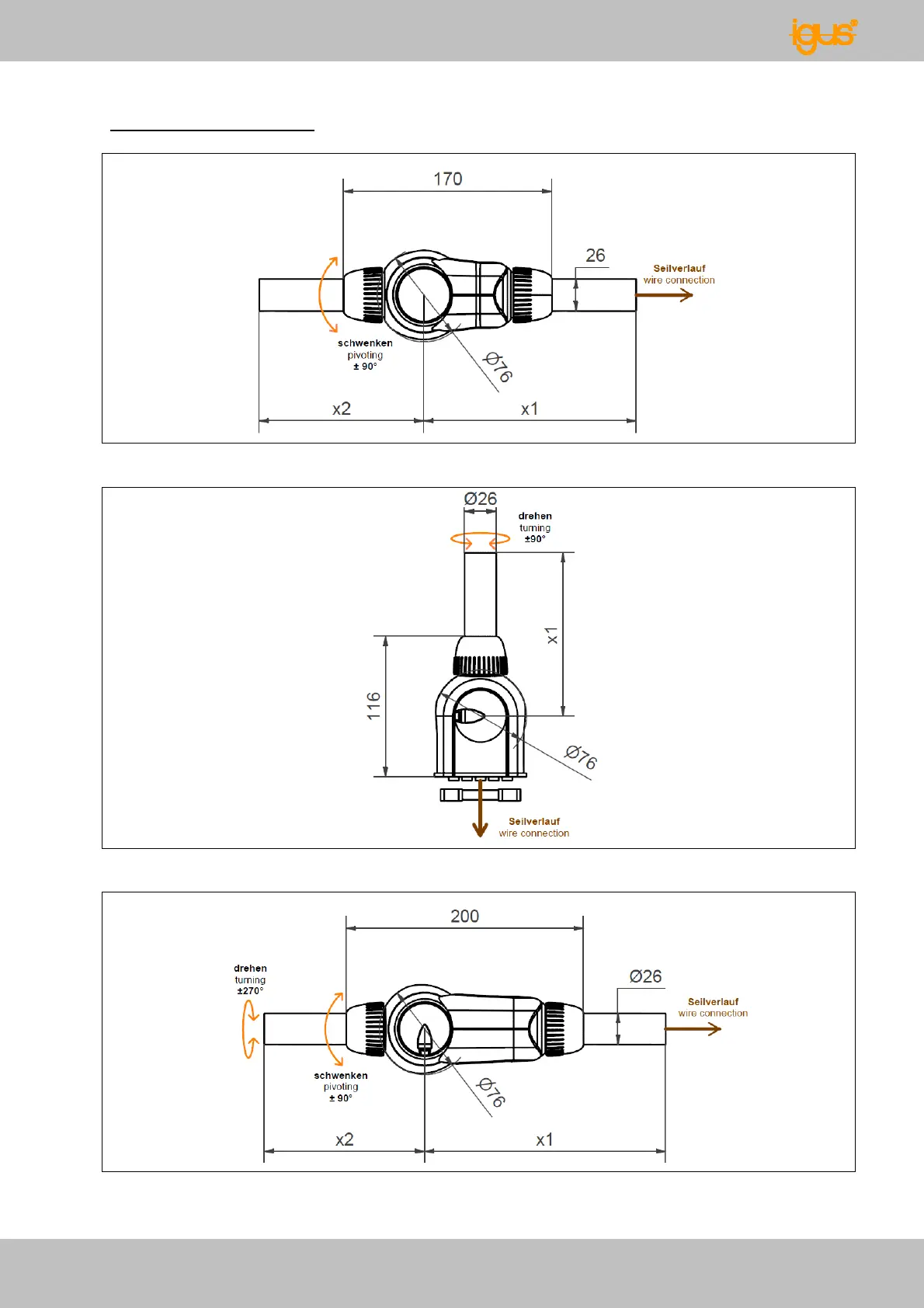

Dimensioned drawings
Fig. 50: Dimensioned drawing - Swivel joint RL-50-PL1
Fig. 51: Dimensioned drawing - Rotating joint RL-50-TL1
Fig. 52: Dimensioned drawing - 2 axes joint RL-50-001
