OPERATION
4. MACHINE CONTROLS
l

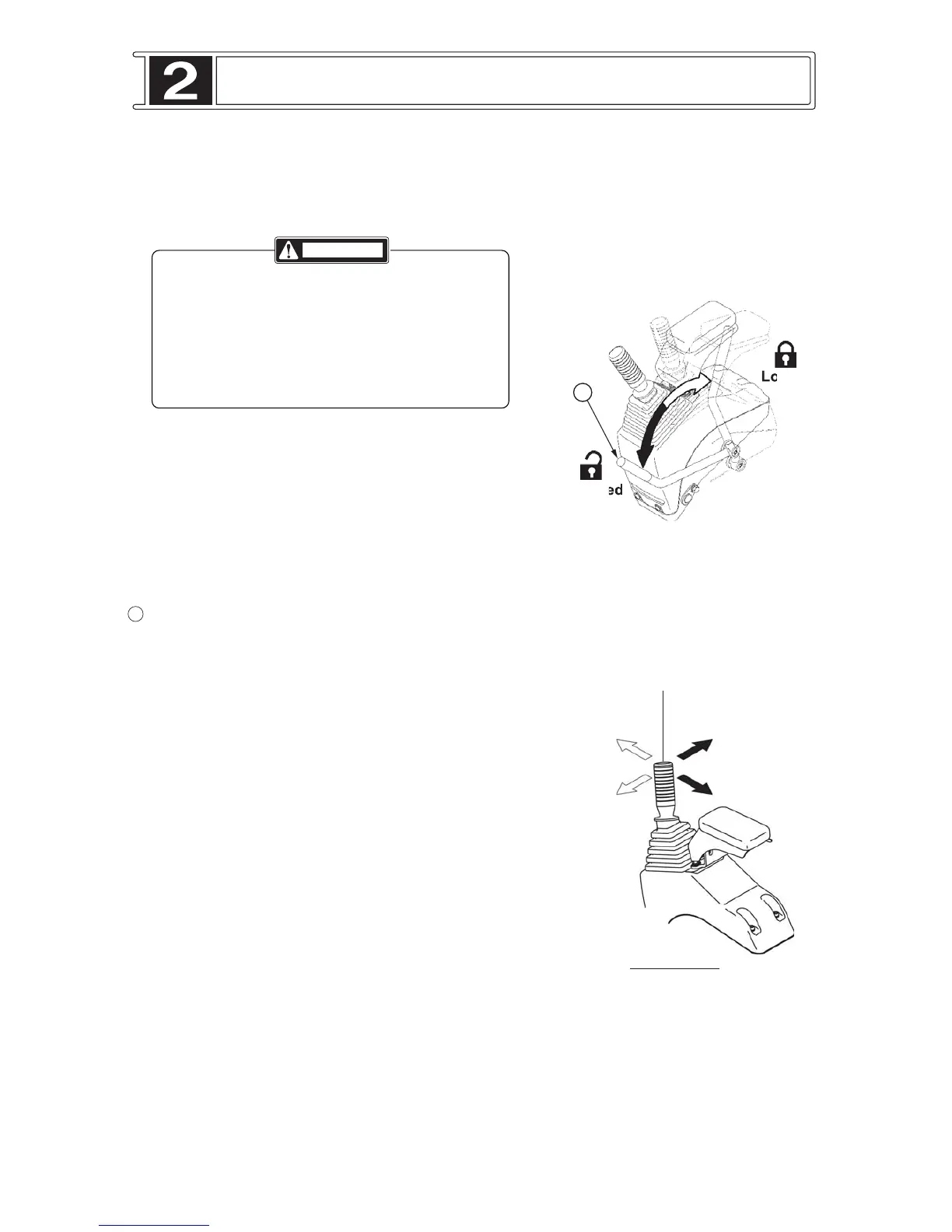

Control Shut-off Lever (Left Levere)
(for all hydraulic activation contorols)
To mounting and dismounting the machine, be
sure to put the shut-off lever in the LOCKED
position.
If the lever is in the UNLOCKED position, upper
structure can swing and can result personal
injury.
Locked : Move the lever back to the locked
position. This makes all hydraulic activation
contorols inoperable.
Unlocked : Move the lever forward to the
unlocked position. This makes all hydraulic
activation controls operable.
11
Left Operating Lever
[ Swing and arm controls ]
1. Arm Out:
Move the lever forward to move the arm out.
2. Arm In:
Move the lever back to move the arm in.
3. Swing Right :
Move the lever right to swing the upper structure
to the right.
4. Swing Left :
Move the lever left to swing the upper structure to
the left.
5. Hold :
When the lever released from any position, the
lever will return to hold (center position). Arm or
swing movement will stop.
Two Functions may be performed at the same
time by moving the lever diagonally.
CAUTION
To Next Page
