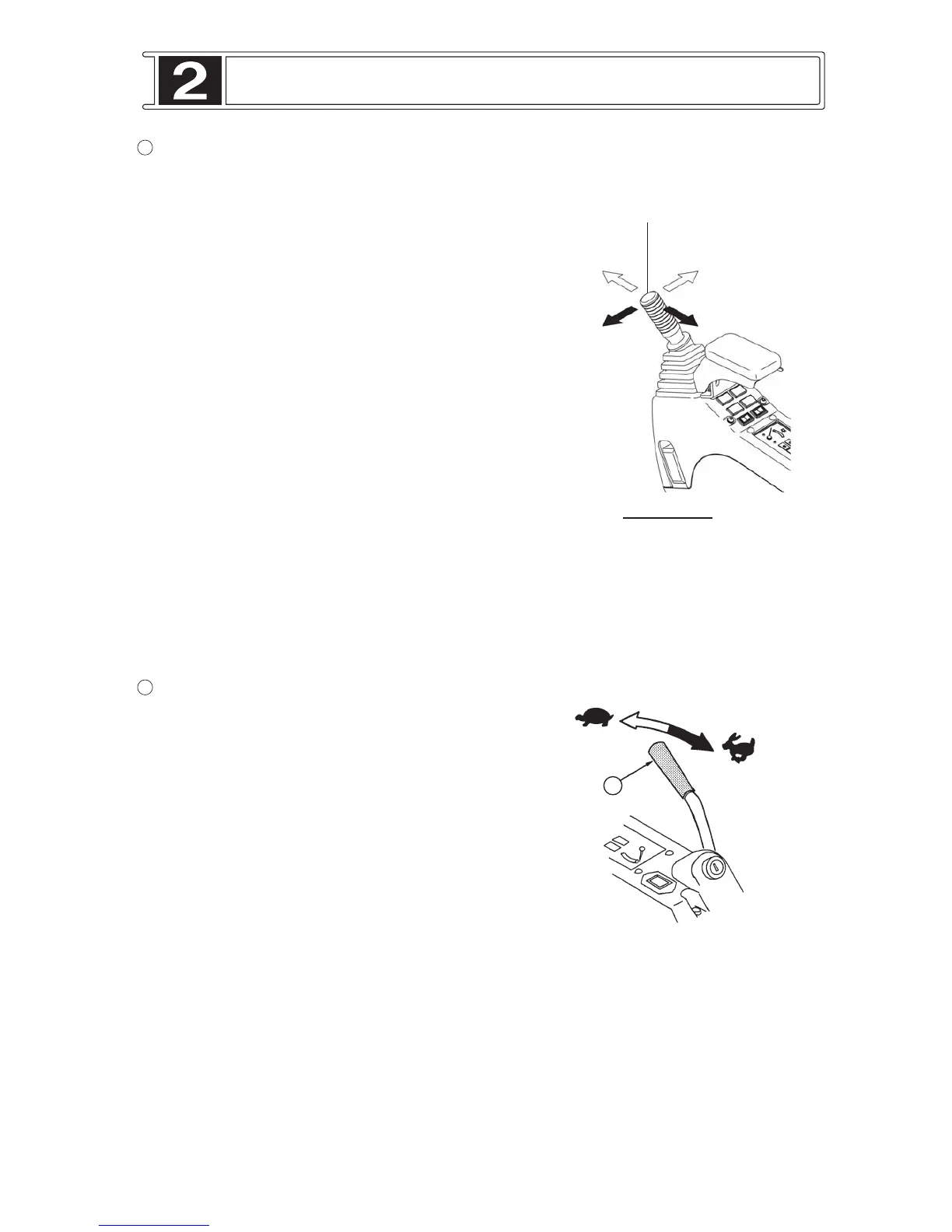

Right Operating Lever
[ Bucket and boom controls ]
1. Boom Lower:
Move the lever forward to lower the boom.
2. Boom Raise:
Move the lever rear to raise the boom.
3. Bucket Dump :
Move the lever right to dump the bucket.
4. Bucket Dig. :
Move the lever left to close the bucket.
5. Hold :
When the lever released from any position, the
lever will return to hold(center position) . Boom or
bucket movement will stop.
Two Functions may be performed at the same
time by moving the lever diagonally.
13
Engine Throttle Lever
Decrease (1) : Move the lever to forward to
decrease the engine speed.
Increase (2) : Move the lever to the rear to
increase the engine speed.
Boom
Lower
1. Bucket
Dump
3.
Boom
Raise
2.
Bucket
Dig.
4.
Hold5.
ISO Pattern
(1)
(2)
