3 – 12
MAINTENANCE

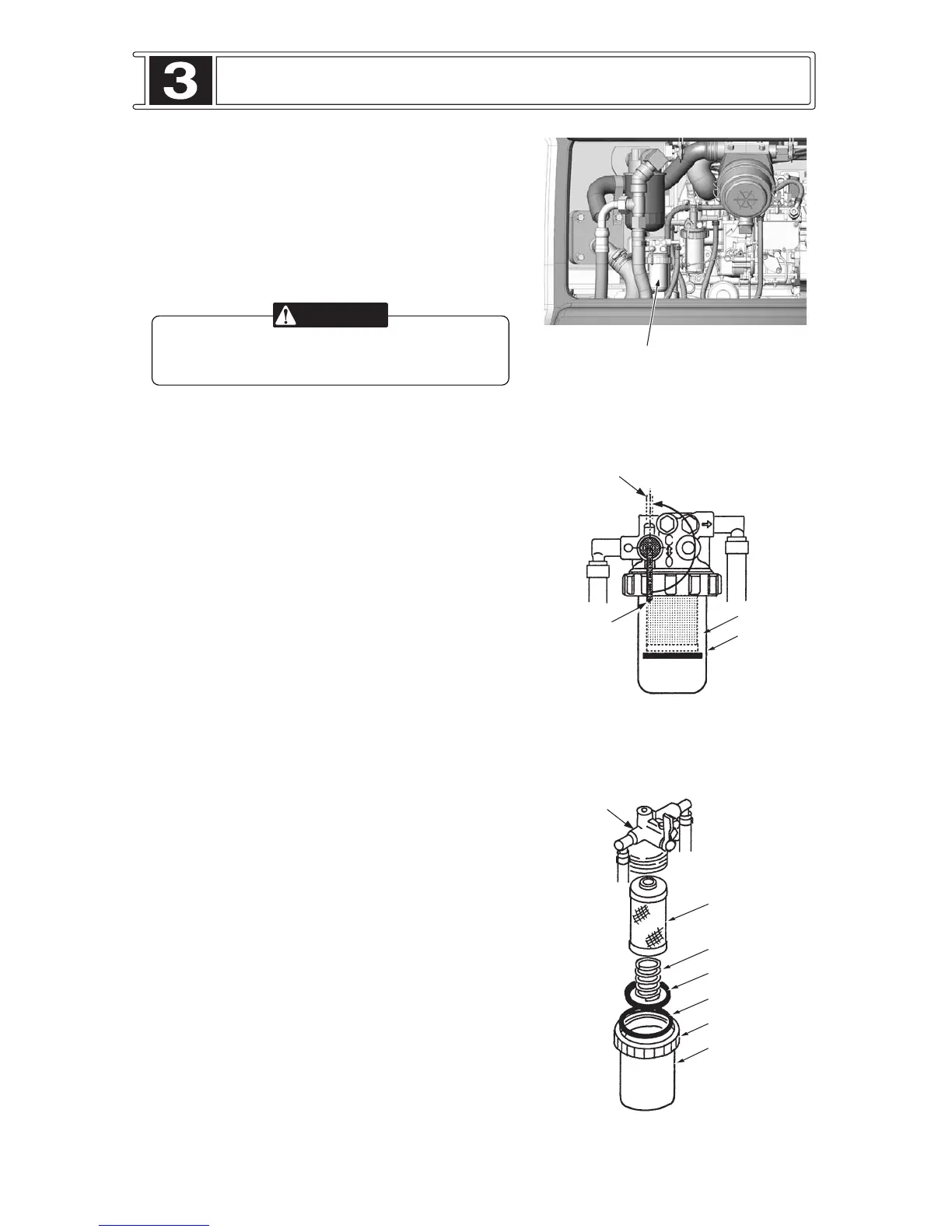

Water Sedimenter
Maintenance intervals :
• Check Level: Daily
• Drain the Water and Sediment : When the float
floated up to the bottom of the filter in the
sedimenter.
Fuel leaked or spilled onto hot surfaces
cancause a fire.
The water sedimenter is located on the rear of
theengine.
1. Stop the engine.
2. Turn the fuel stop lever to the “closed”
position.
3. Loosen the ring nut
c
and remove the bowl
d
and the filter
e
.
4. Drain water and sediment into suitable
container.
NOTE: Always dispose of drained fluids as
established by local regulations.
5. Clean the inside surfaces of the body
f
and
bowl
d
.
6. Clean the filter
e
.
7. Inspect the O ring
f
on bowl Replace them
if they are worn or damaged.
8. Install a filter
e
to the body. Install a spring
g
and float
h
into the bowl. Install the bowl to
the body. Tighten ring nut
c
.
9. Turn the fuel stop lever to the “opened”
position.
NOTE: Do not start the engine until all fuel system
service is completed.
WARNING
DAILY
Water sedimenter
“Closed”
“Opened”
Filter
Floa
Bowl
Body
O ring
Ring
Spring
Float
Filter
Water sedimenter
10. Priming the system. There should be enough
fuel in the system to allow the engine to start.
Keep the engine start switch key at ON for a
period of 20 seconds. which operates the fuel
pump and priming automatically.
