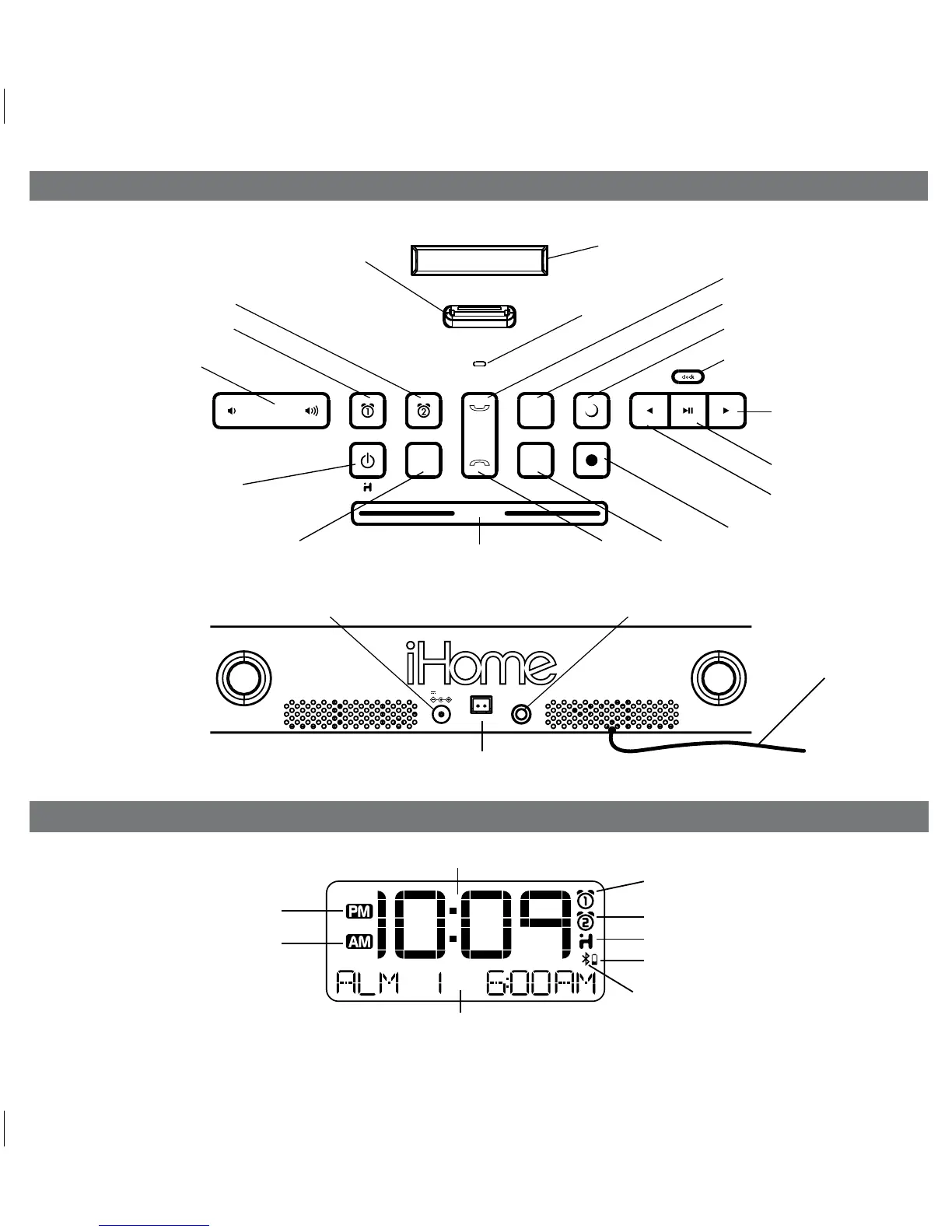

iHome iD50 - Controls and Indicators; Top Panel Controls; Rear Panel Connections; Display Indicators

Display
Alarm 1 Indicator
iHome App Indicator
Alarm 2 Indicator
Battery Low Indicator
Time Display
Bluetooth Indicator
PM Indicator
AM Indicator
NOTE: AM/PM indicators will not appear
when clock is set to 24 hour display mode
Radio / Alarm Time / iPod Display
1
Talk Button
End Button
Play/Pause/
Radio preset Button
Forward Set Button
Reverse Set Button
EQ/Pairing ButtonMode Button
snooze/dimmer
mode
eq
nap
bedtime
wakeuppairing
talk
end
radio preset
Controls and Indicators
AM Loop Antenna socket
AC Adaptor Jack Line-in Jack
FM Antenna
Snooze/Dimmer Button
Rubberized device rest
Rear Panel
Top Panel
Alarm Reset/Power/App Settings Button
Flexible 30 pin connector for iPad/iPhone/iPod
Alarm 1 Button
Lower/raise volume Button
Alarm 2 Button
Nap Button
Bedtime Button
Clock Button
Wakeup Button
Microphone
line-in
am antenna
DC 12V 3.5A
