900861-00NC
14
NOTE: This fireplace requires metal studs
for framing. Wood studs are not permit-
ted.
Model:
Natural Gas (NG)
A
Width
B
Height
C
Depth
BarcelonaLights36ZEN or VRE4636ZEN
40-1/2” (1029mm) 37-3/4” (959mm) 15” (381mm)
BarcelonaLights48ZEN or VRE4648ZEN
52-1/2” (1334mm) 37-3/4” (959mm) 15” (381mm)
BarcelonaLights60ZEN or VRE4660ZEN
64-1/2” (1639mm) 37-3/4” (959mm) 15” (381mm)
BarcelonaLights72ZEN or VRE4672ZEN
76-1/2” (1943mm) 37-3/4” (959mm) 15” (381mm)
Table 6 - Fireplace framing dimensions.

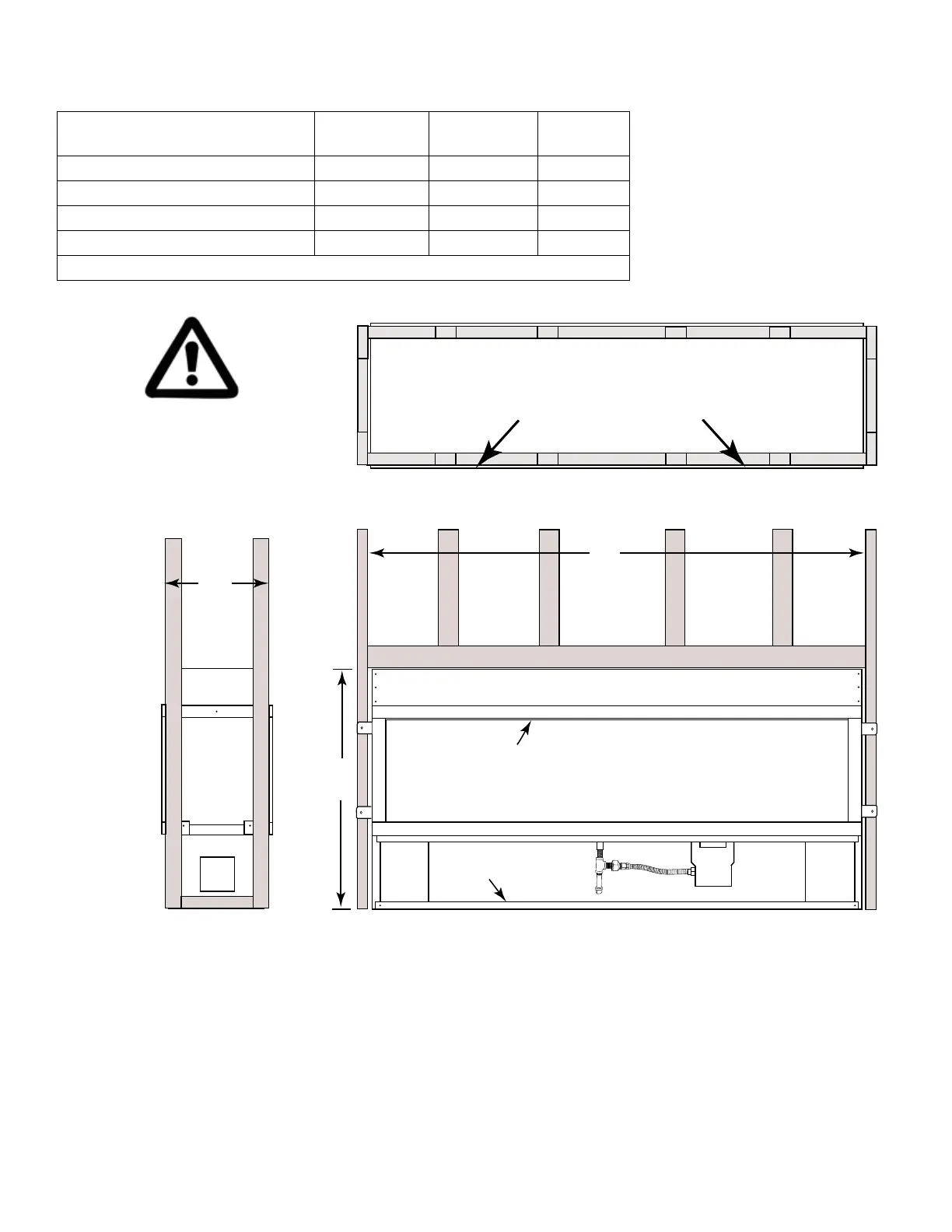

Figure 13 - Framing dimensions using all non-combustible materials for see-through fireplace; refer to Table 6.
NOTE: This outdoor fireplace is not a
“load bearing” fireplace. All finishing
materials must be supported by the sur-
rounding structure and not rely on the
fireplace itself.
SEE-THROUGH FRAMING DIMENSIONS WITH METAL STUDS
A
B
Metal Studs Metal Studs
* Metal studs shown in gray.
Bottom Support Fin
Hood
C
Metal Studs
Metal Studs
Top view showing 1/2” (13mm) lip using
non-combustible facing material at front face
(Front)
Top view showing 1/2” (13mm) lip using
non-combustible facing material at front face
