IHP.us.com
900861-00NC
16

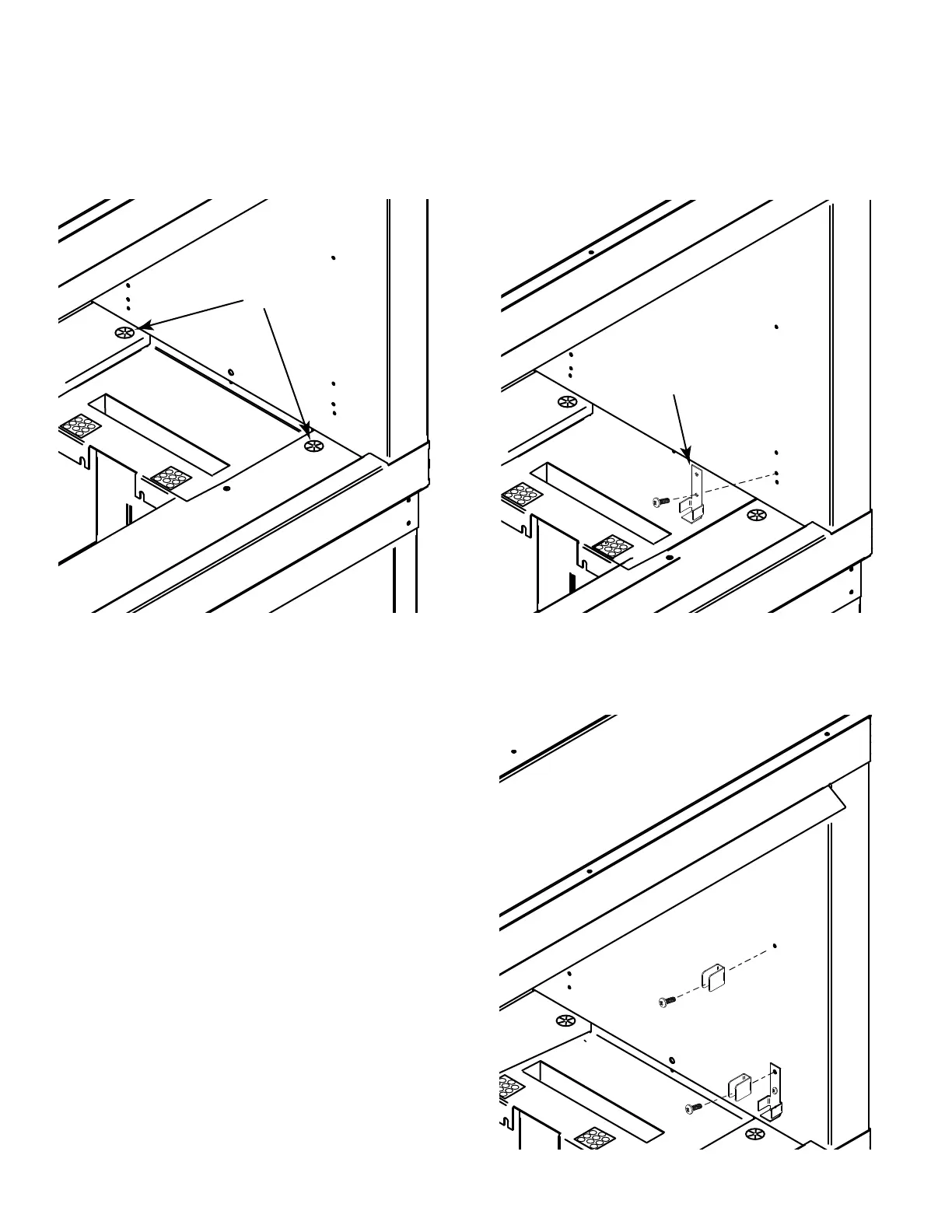

Step 3: Locate the wire grommets inside the firebox. See Figure 17. Directly above them will be a series of mounting holes for the wind-
shield and LED retainer clips. Prepare the fireplace by installing the LED retainer clips. The retainer clips have two holes in them. Install
one (1) clip on the left and one (1) clip on the right side of the inner fireplace side wall. Install as shown in Figure 18.
NOTE: If you are preparing a see-through fireplace you will install a total of (4) retainer clips, two on open side.
Figure 18 - Shows clip installed on right side of fireplace
Figure 17 - Locating wire grommets
Step 4: Install the four (4) windshield clips, two on each side, one at the top and one with the LED retainer clip as shown in Figure 19.
NOTE: if you are preparing a see-through fireplace you will install a total of (8) windshield clips, four on each open side.
Figure 19 - Installing windshield clips
PRECAUTION: When installing windshield clips do not secure the
screws tight. They need to be loose enough to allow the clip to
move slightly and spin around. Loose clips provide windshield to
be easily installed.
LED LIGHTING INSTALLATION
Continued
Wire Grommets
LED Retainer Clip
To Next Page
