Step 6: Carefully push the LED channel assembly connector through the wire grommet. As you push it through the grommet sit the chan-
nel into the retainer clip. Ensure the other end of the channel is also sitting inside the other retainer clip. See Figures 21 and 22 as a refer-
ence. NOTE: If you are installing into a see-through fireplace install the other LED light strip and channel the same direction.
W
i
r
e
Gr
o
mm
e
t
B
o
t
to
m
E
n
d
LED Channel
Assembly

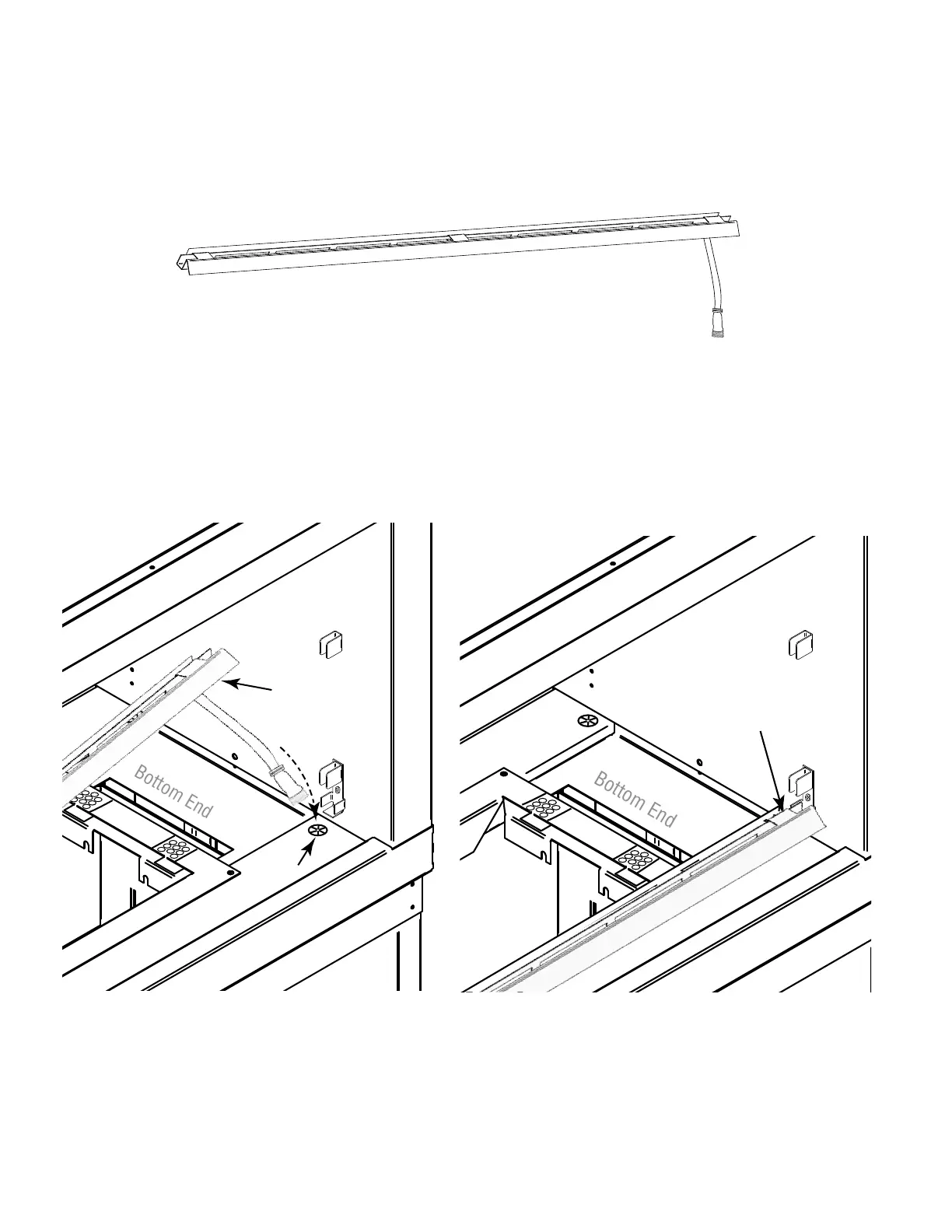

Figure 21 - Installing LED lights and channel
Figure 22 - LED installed in retainer clip inside fireplace
Step 5: Remove the LED right channel assembly from the carton (The front of the channel has a shield facing the front with the LED wire
hanging on the right side). See Figure 20 and Figure 21 for details. NOTE: If you are installing into a see-through fireplace you will install
both right and left channels assemblies.
Figure 20 - Shows LED right channel
B
o
t
to
m
E
n
d
LED Channel Assembly
Installed in retainer clip
LED LIGHTING INSTALLATION
Continued
