3.3 System Overview
A Draco tera matrix system consists of a Draco tera matrix and, for KVM
applications, one or more CPU Units / CON Units. The Draco tera matrix
is connected to the CPU Units / CON Units by interconnect cables or
directly to the video devices where used as a video matrix.
CPU Units are connected directly to the sources (computer, CPU) by the
provided cables.
Monitor(s), keyboard and mouse are connected to the CON Units.
Communication between the Draco tera matrix and the CPU Units / CON
Units occurs over the respective interconnect cables.
1
2 3
5
3
6
4

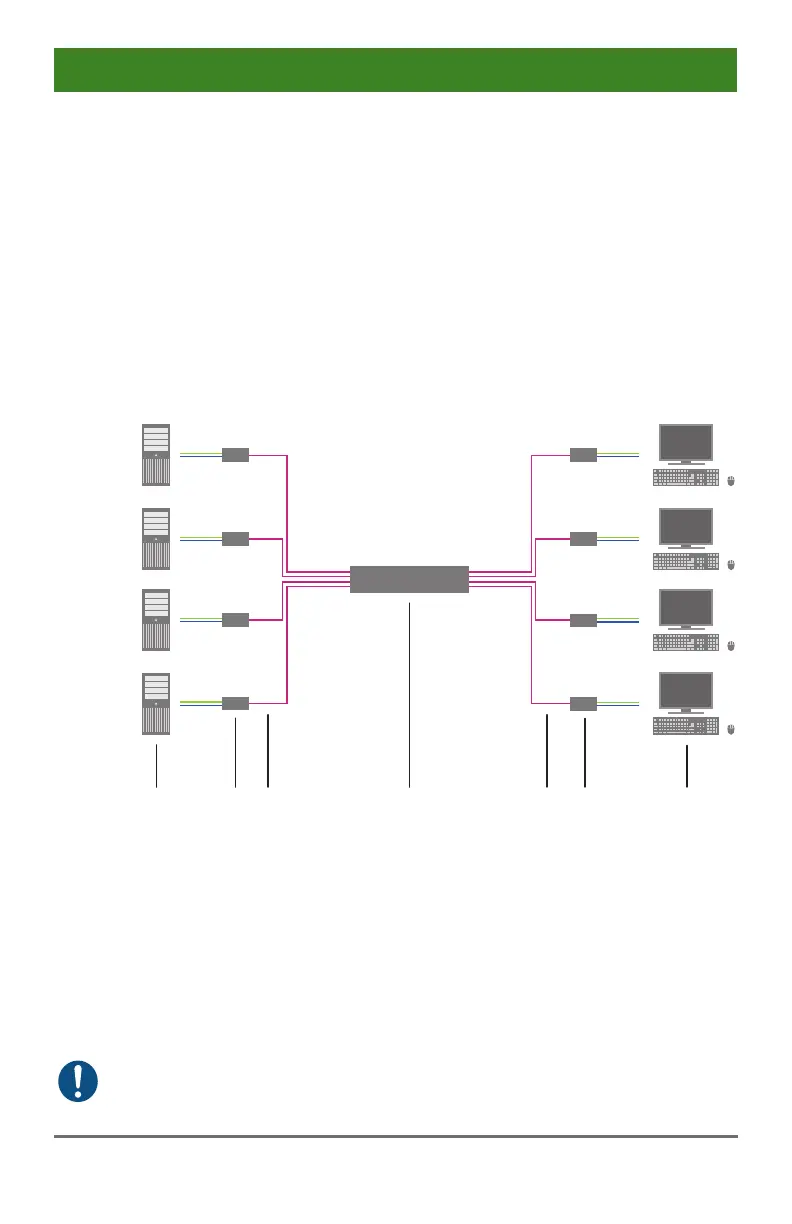

System Overview (exemplary)
1 Source (computer, CPU)
2 CPU Units
3 Interconnect cable
4 Draco tera matrix
5 CON Units
6 Console (monitor, keyboard, mouse)
See Chapter
4.3, Page 50 for installation examples.
