“Watchdog”– Mode 2
If an interruption in data transmission occurs which is longer than the preset watchdog time, the speed setpoint value will
be set to the WD safety speed setpoint and the temperature setpoint will be set to the WD safety temperature setpoint.
The PC 2 warning message will be displayed.

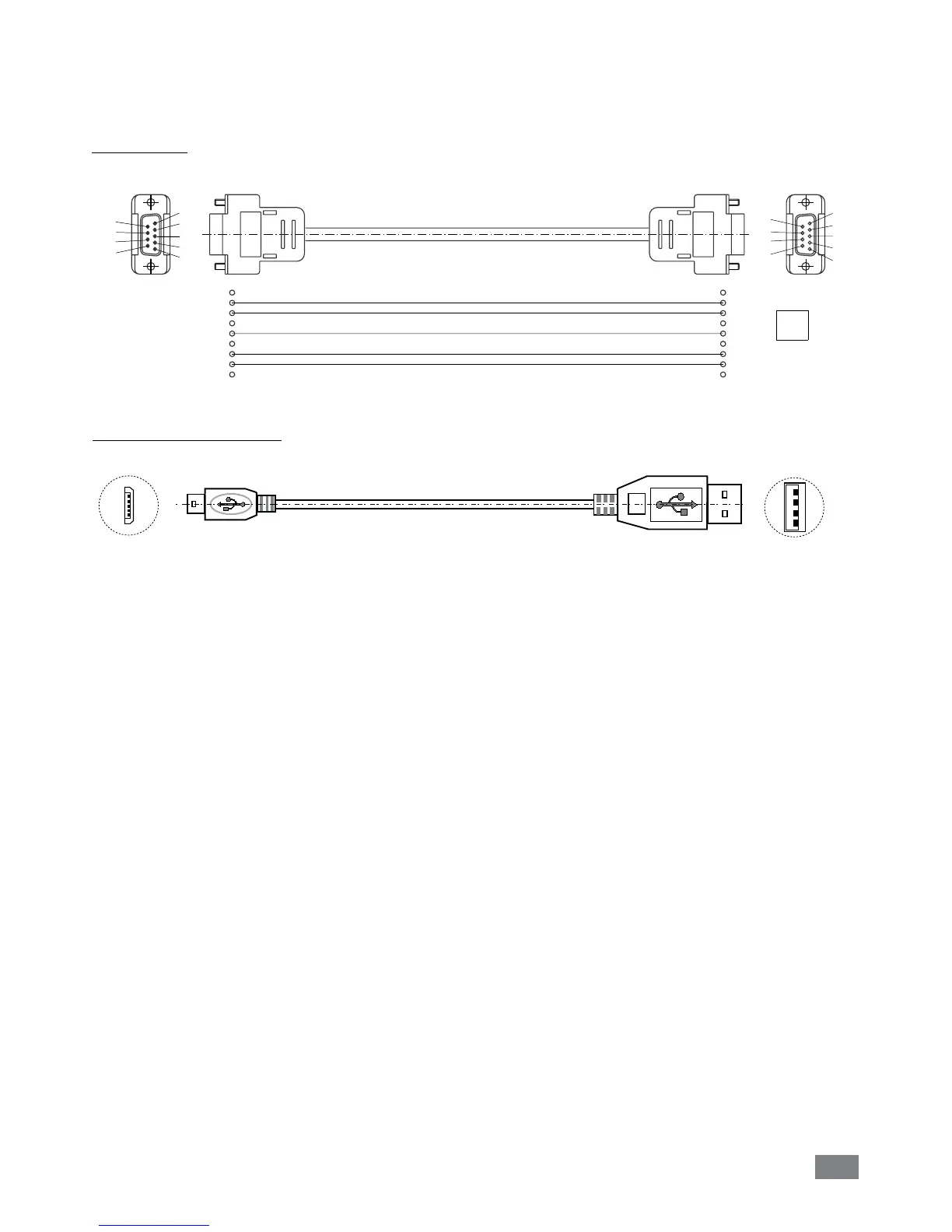

PC 1.1 Cable:
Required for connecting the RS 232 port to a PC.
1
2 RxD
3 TxD
4
5 GND
6
7 RTS
8 CTS
9
1
RxD 2
TxD 3
4
GND 5
6
RTS 7
CTS 8
9
PC
1
2
3
4
5
6
7
8
9
9
8
7
6
5
4
3
2
1
Fig. 19
USB cable A - Micro B 2.0:
This cable is required to connect USB port (9, see Fig. 2) to a PC.
USB micro B
USB A
A
Fig. 20
