IKA LR 1000 basic - Reactor Vessel Details; Reactor Vessel LR 1000.1 Components; Reactor Vessel LR 1000.3 Components

6

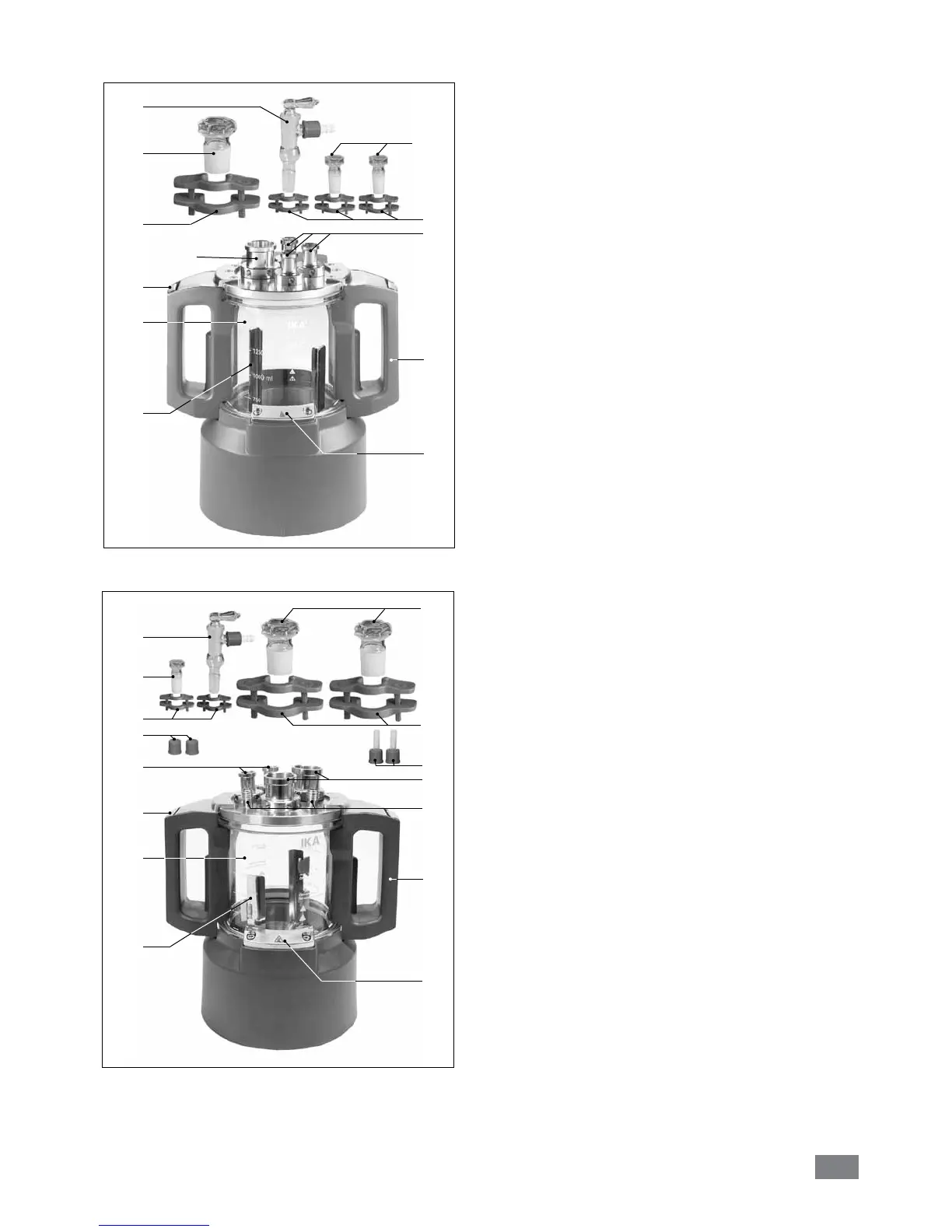

• Reactor vessel (LR 1000.1):
15: Glass vessel (Borosilicate glass 3.3)
16: Handle
17: Cover latch
18: Vessel locker
19: Anchor stirrer
21: NS 29/32 (1x)
22: NS 14/23 (3x)
24: Safety clips NS 29/32 (1x)
25: Stopper NS 29/32 (1x)
26: Safety clips NS 14/23 (3x)
27: Stopper NS 14/23 (2x)
28: Vacuum cock NS 14/23 (1x)
Fig. 4
21
22
24
25
26
27
28
Reactor vessel (LR 1000.3):
20
21
22
15: Glass vessel (Borosilicate glass 3.3)
16: Handle
17: Cover latch
18: Vessel locker
20: Anchor stirrer with scraper (PEEK)
21: NS 29/32 (2x)
22: NS 14/23 (2x)
23: Neck with GL 14 thread (2x)
24: Safety clips NS 29/32 (2x)
25: Stopper NS 29/32 (2x)
26: Safety clips NS 14/23 (2x)
27: Stopper NS 14/23 (1x)
28: Vacuum cock NS 14/23 (1x)
29: Screw cap GL 14 (2x)
30: Hose connector and nut GL 14 (2x)
Fig. 5
24
25
26
27
28
18
16
23
15
17
16
18
17
19
15
29
30
