IKA RV 10 basic - Page 27

27

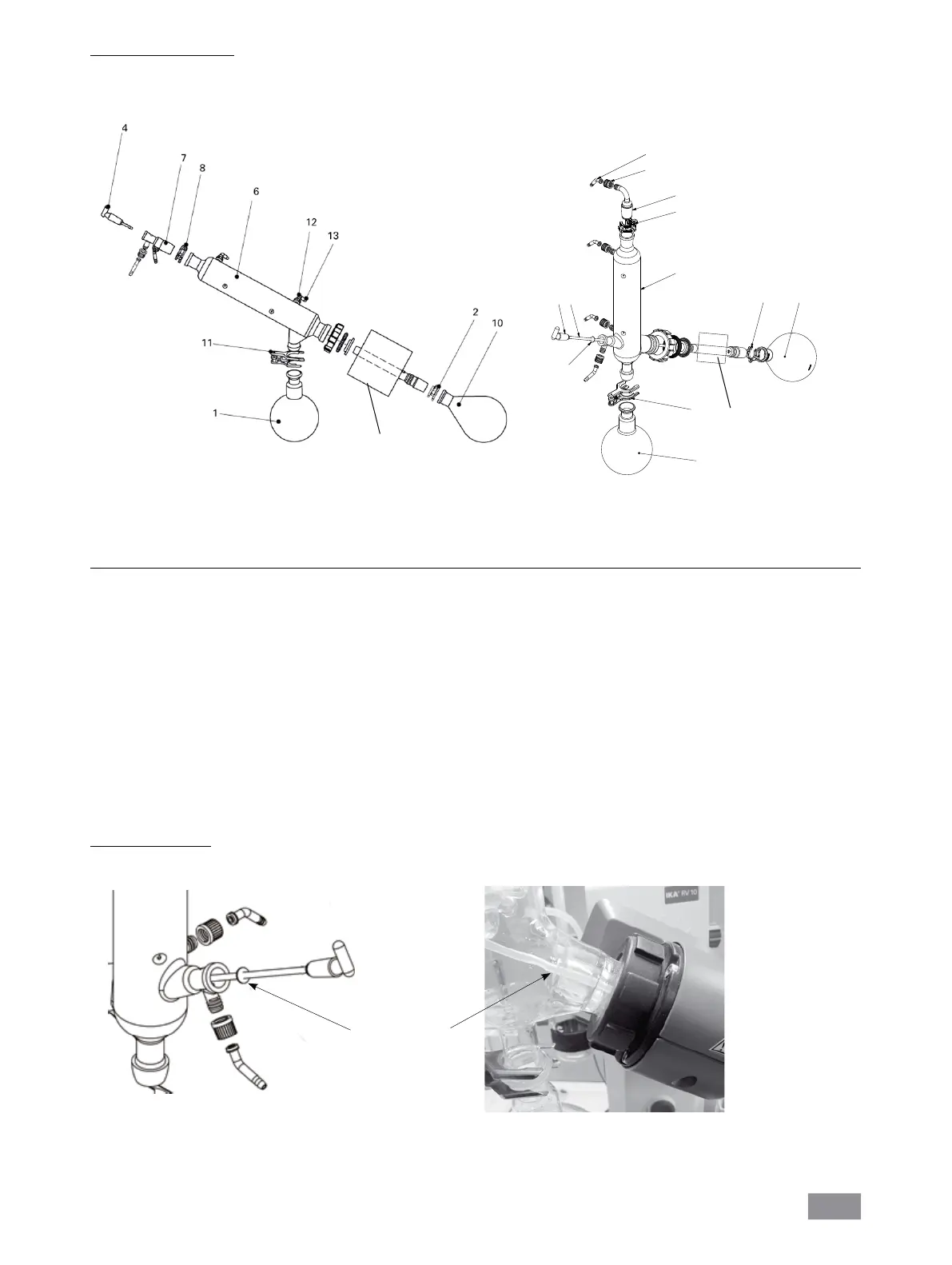

Mounting the glassware
Item Designation Quantity Quantity
diagonal glassware vertical Glassware
1 Receiving flask 1 1
2 Clamp NS 29, stainless steel 1 1
4 Stopcock 1 1
5 Tube - 1
6 Condenser 1 Diagonal condenser 1
Vertical condenser
7 Connection 1 Introduction sleeve 1 Vacuum connection
8 Clamp NS 29, plastic 1 1
10 Evaporator piston 1000 ml 1 1
11 Ball joint clamp RV 05.10 1 1
12 Screw joint cap 4 4
13 Hose connection 4 4
18 Washer - 1
7
8
13 (4x)
12 (4x)
6
18
5
4
1
11
10
2
Glassware
RV 10.2 diagonal
RV 10.20 diagonal, coated
Glassware
RV 10.1 vertical
RV 10.10 vertical, coated
Rotary head
Rotary head
Mounting the washer
Drainage washer
Note: Pay attention to the correct position of the washer.
