Hose system
)

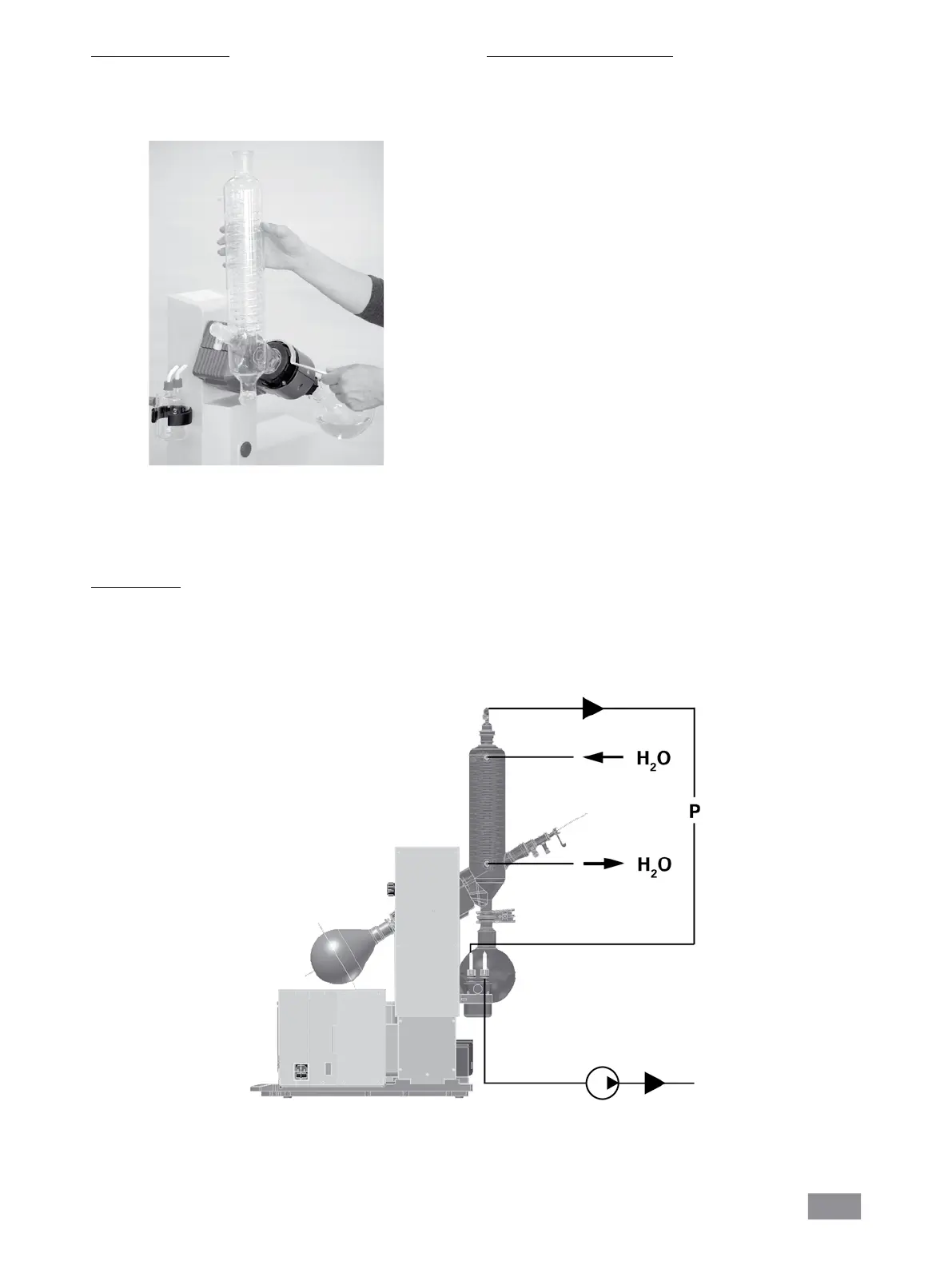

Connect the water hoses to the condenser according to the counter-flow principle (Fig. 14).
)
Install the vacuum connections to the condenser, Woulff bottle, vacuum controller with valve and vacuum pump.
)
Always connect the vacuum hose to the condenser at the high-test point to minimise solvent losses during suctioning.
)
Use typical laboratory vacuum hoses with an inside diameter of 8 mm and a wall thickness of 5 mm (see "Accessories").
Fig. 14
Description of special condensers
• RV 10.3 Vertical-intensive condenser with manifold
This vertical-intensive condenser features a double jacket design for
particularly efficient condensation.
AAlso available with coating (RV 10.30)
• RV 10.4 Dry ice condenser
Dry ice condenser for distilling low-boiling solvents.
Cooling by dry ice, no cooling water required. Maximum condensati-
on thanks to low temperatures.
Also available with coating (RV 10.40)
(Cannot be used in automatic mode for the RV10 control)
• RV 10.5 Vertical-condenser with manifold and cut-off valve for
reflux distillation
Also available with coating (RV 10.50)
• RV 10.6 Vertical-intensive condenser with manifold and cut-off
valve for reflux distillation
This vertical-intensive action condenser features a double jacket de-
sign for particularly efficient reflux distillation.
Also available with coating (RV 10.60)
Removing the condenser
) Use the ring spanner provided to loosen union nuts that are tightly
fitted.
) Loosen the union nut by turning anticlockwise.
) Remove the Velcro
®
.
Fig. 13
