Ikegami BS-79 - Page 24

3. INSTALLATION AND CONNECTION 3 - 11
BS-79 0212 VOL1 (U) (E) BS-79
[WFM REMOTE connector]
A
B
C
D
E
F
G
STAIR OUT
SEQ ON
NC
-15 V (-) IN
GND
EXPAND
-15 V (+) IN
Stair signal output
Control signal output for SEQ selection
- - -
-15 V input
Grounding terminal for WFM control
EXPAND signal output
-15 V RET
OUT
OUT
- - -
IN
GND
OUT
RET

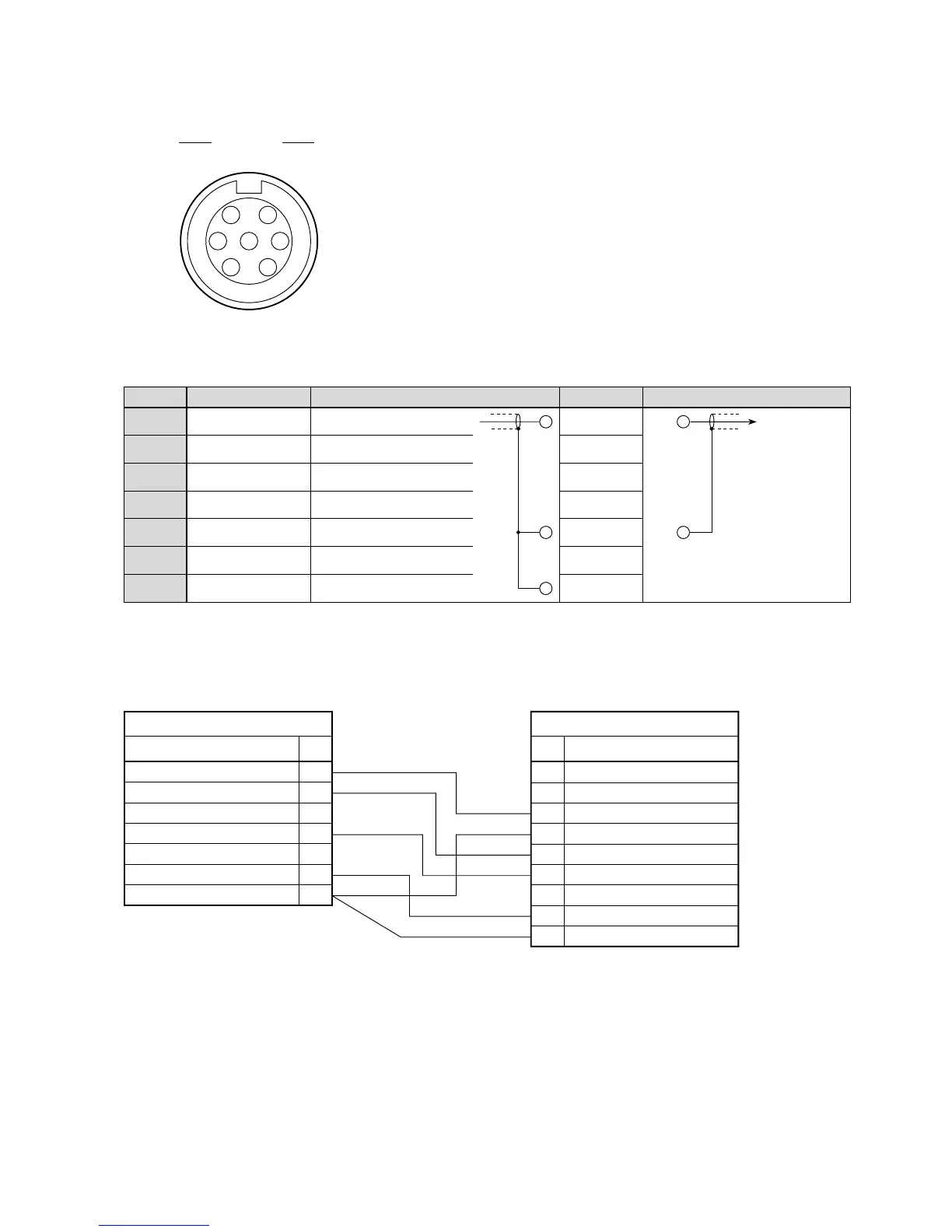

This connector is used to output stair waveforms for a waveform monitor.
BS side : PRC03-21A10-7F (Tajimi)
Cable side : PRC03-12A10-7M10.5 (7-pin male plug)
or equivalent
• External connection differs depending on the used waveform monitor.
Cable connection with each typical waveform monitor is shown below.
Insertion side
Pin Number Name Function Direction External Interface
Receptacle
A
B
C D
E
F
G
E
G
E
A A
• 528A
WFM REMOTE
FUNCTION No.
A
B
C
D
E
F
G
STAIR OUT
SEQ ON
NC
-15 V (-) IN
GND
EXPAND
-15 V (+) IN
528 WFM
FUNCTIONNo.
1
2
3
4
5
6
7
8
9
STAIR
-15 V (+) OUT
K370 SEL
-15 V (-) OUT
EXPAND
-15 V (+) OUT
PRC03 - 12A10 - 7M10.5
CN827 - MTP9
