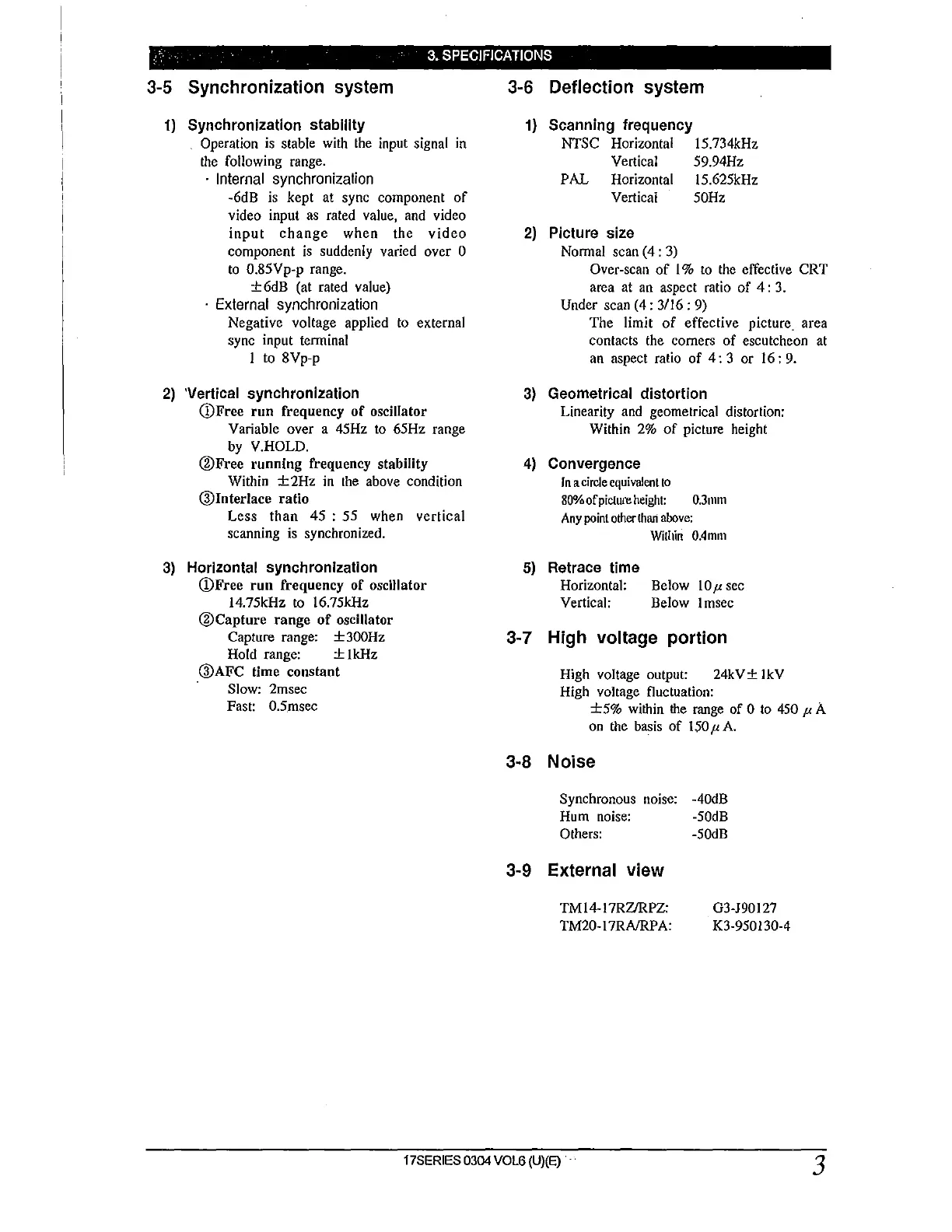

,' ' 3. SPECIFICATIONS
3-5 Synchronization system
1) Synchronization stability
Operation is stable with the input signal in
the following range.
· Internal synchronization
-6dB is kept at sync component of
video input as rated value, and video
input change when the video
component is suddenly varied over 0
to 0.85Vp-p range.
±6dB (at rated value)
· External synchronization
Negative voltage applied to external
sync input tenninal
I to 8Vp-p
2) 'Vertical synchronization
(!)Free run frequency of oscillator
Variable over a 45Hz to 65Hz range
by V.HOLD.
@Free running frequency stability
Within ±2Hz in the above condition
@Interlace ratio
Less than 45 : 55 when vertical
scanning is synchronized.
3) Horizontal synchronization
(!)Free run frequency of oscillator
14.75kHz to 16.75kHz
@Capture range of oscillator
Capture range: ±300Hz
Hold range: ± !kHz
@AFC time constant
Slow: 2msec
Fast: 0.5.msec
3-6 Deflection system
1) Scanning frequency
NTSC Horizontal 15.734kHz
Vertical 59.94Hz
PAL Horizontal I 5.625kHz
Vertical 50Hz
2) Picture size
Nonna] scan ( 4 : 3)
Over-scan of I% to the effective CRT
area at an aspect ratio of 4: 3.
Under scan ( 4: 3/16 : 9)
The limit of effective picture_ area
contacts the corners of escutcheon at
an aspect ratio of 4: 3 or 16: 9.
3) Geometrical distortion
Linearity and geometrical distortion:
Within 2% of picture height
4) Convergence
In a circle equivalent to
80%ofpictureheight: 0.3mm
Any point other lhan above:
Within 0.4 mm
5) Retrace time
Horizontal: Below lO µ sec
Vertical: Below lmsec
3-7 High voltage portion
High voltage output: 24kV± lkV
High voltage fluctuation:
±5% within the range of O to 450 µ A
on the basis of 150 µ A.
3-8 Noise
Synchronous noise: -40dB
Hum noise: -50dB
Others: -50dB
3-9 External view
TM 14-I ?RZIRPZ:
TM20-17RNRP A:
G3-J90127
K3-950130-4
17SERIES 0304 VOL6 (U)(E)
