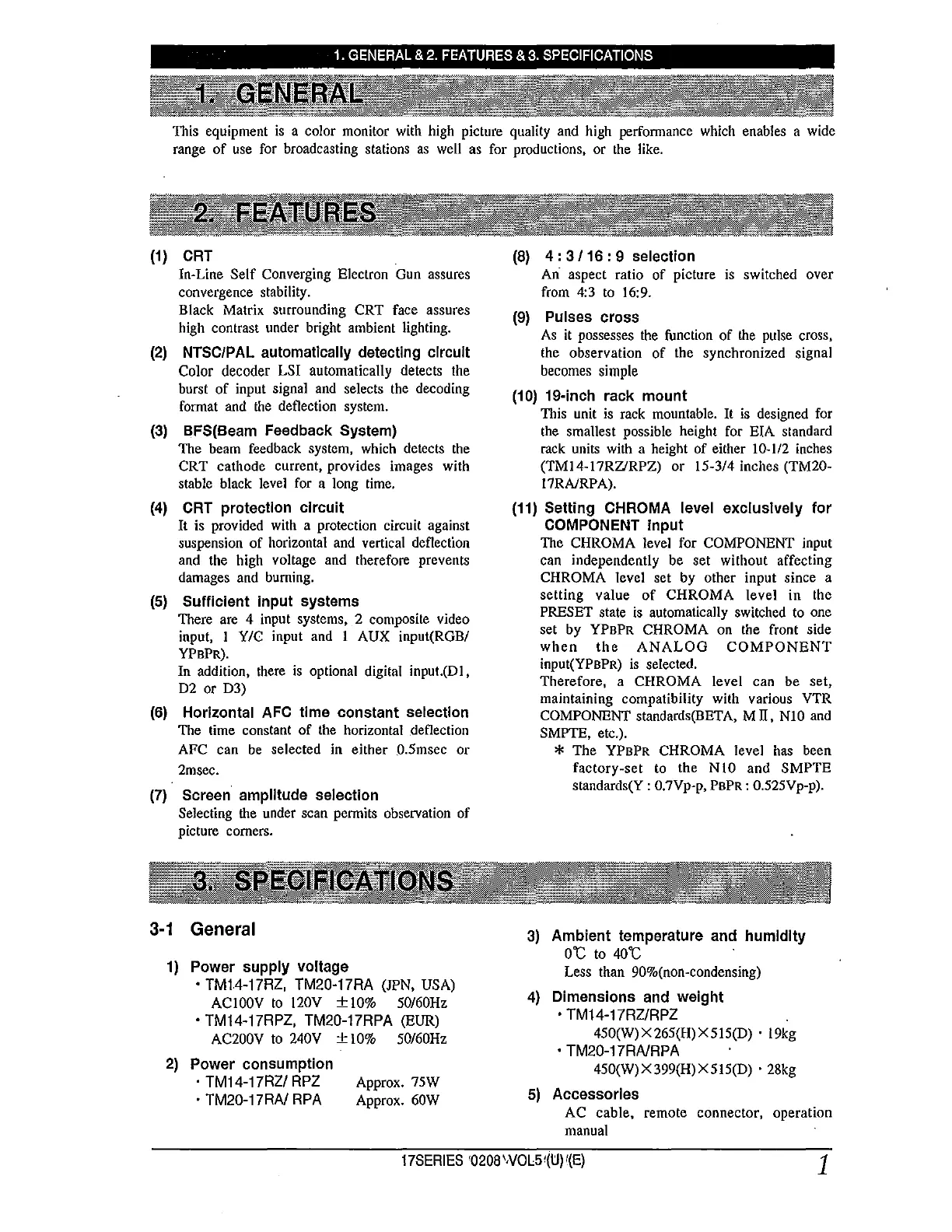

1. GENERAL & 2. FEATURES & 3. SPECIFICATIONS
This equipment is a color monitor with high picture quality and high performance which enables a wide
range of use for broadcasting stations as well as for productions, or the like.
(1) CRT
In-Line Self Converging Electron Gun assures
convergence stability.
Black Matrix surrounding CRT face assures
high contrast under bright ambient lighting.
(2) NTSC/PAL automatically detecting circuit
Color decoder LSI automatically detects the
burst of input signal and selects the decoding
format and the deflection system.
(3) BFS(Beam Feedback System)
The beam feedback system, which detects the
CRT cathode current, provides images with
stable black level for a long time.
(4) CRT protection circuit
It is provided with a protection circuit against
suspension of horizontal and vertical deflection
and the high voltage and therefore prevents
damages and burning.
(5) Sufficient input systems
There are 4 input systems, 2 composite video
input, I Y/C input and I AUX input(RGB/
YPBPR).
In addition, there is optional digital input.(DI,
D2 or D3)
(6) Horizontal AFC time constant selection
The time constant of the horizontal deflection
AFC can be selected in either Q.5msec or
2msec.
(7) Screen amplitude selection
3-1
Selecting the under scan permits observation of
picture corners.
General
1) Power supply voltage
• TM14-17RZ, TM20-17RA (JPN, USA)
ACI00V to 120V ±JO% 50/60Hz
• TM14-17RPZ, TM20-17RPA (EUR)
AC200V to 240V ±JO% 50/60Hz
2) Power consumption
· TM14-1 ?RZ/ RPZ Approx. 75W
• TM20-17RN RPA Approx. 60W
(8) 4: 3 / 16: 9 selection
An· aspect ratio of picture is switched over
from 4:3 to 16:9.
(9) Pulses cross
As it possesses the function of the pulse cross,
the observation of the synchronized signal
becomes simple
(10) 19-inch rack mount
This unit is rack mountable. It is designed for
the smallest possible height for E!A standard
rack units with a height of either 10-1/2 inches
(TMl4-17RZ/RPZ) or 15-3/4 inches (TM20-
l7RA/RPA).
(11) Setting CHROMA level exclusively for
COMPONENT Input
3)
The CHROMA level for COMPONENT input
can independently be set without affecting
CHROMA level set by other input since a
setting value of CHROMA level in the
PRESET state is automatically switched to one
set by YPBPR CHROMA on the front side
when the ANALOG COMPONENT
input(YPBPR) is selected.
Therefore, a CHROMA level can be set,
maintaining compatibility with various VTR
COMPONENT standards(BETA, M lI, NJO and
SMPTE, etc.).
* The YPBPR CHROMA level has been
factory-set to the Nto and SMPTE
standards(Y: 0.7Vp-p, PBPR: 0.525Vp-p).
Ambient temperature and humidity
0'C to 40'C
Less than 90%(non-condensing)
4) Dimensions and weight
• TM14-17RZ/RPZ
450(W)X265(H)X515(D) · 19kg
• TM20-17RNRPA
450(W)X399(H)X5!5(D) · 28kg
5) Accessories
AC cable, remote connector, operation
manual
17SERIES '0208WOL5<(l:J)I(E)
