IKUSI 2844 - Filter Adjustment

39
Equipment installation and configuration / Manual setting
J

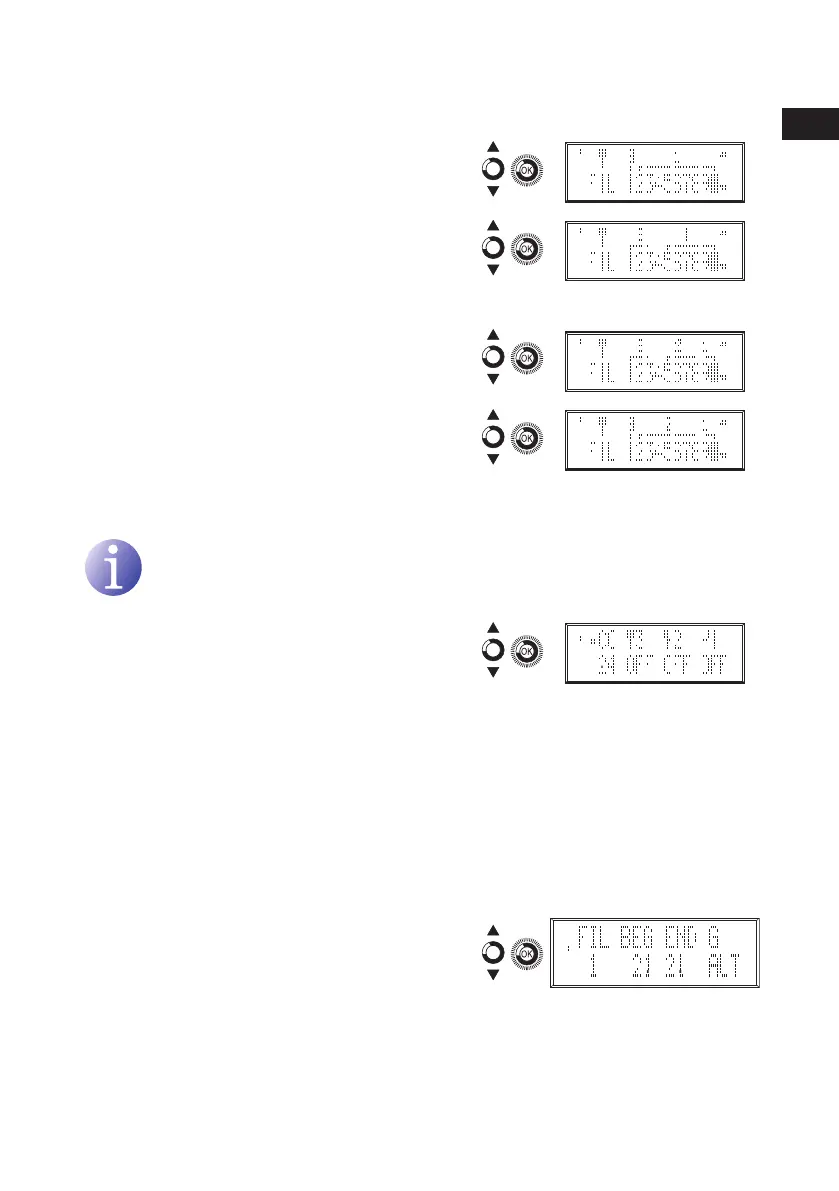

For two aerials:
b) Conguration (9 – 0 – 1)
c) Conguration (7 – 0 – 3)
J
For three aerials:
d) Conguration (2 – 5 – 3)
e) Conguration (2 – 7 – 1)
Mast-head amplifier power configuration
NOTE
Only where a mast-head amplier is tted
to the aerial.
1) Locate and select the UHF input voltage: VDC,
24 / 12.
2) Locate and select UHF input voltage enabling
(ON) / disabling (OFF):
a) UHF3 input voltage: Ψ3, ON / OFF
b) UHF2 input voltage: Ψ2, ON / OFF
c) UHF1 input voltage: Ψ1, ON / OFF
Filter adjustment
Frequency configuration
1) Locate and select the lter to adjust:
FIL, 1 – 10.
2) Locate and select the lter start channel:
BEG, 21 – 69.
3) Locate and select the lter end channel:
END, 21 – 69.
EN
