[USING FRONT A/V CONNECTION]
This is how to use the A/V jack in front of this TV and connect to external devices.
This is useful when you use game playing devices etc.
When the audio jack of external devices is monaural, connect the audio cable to the AUDIO L jack.
[DIGITAL AUDIO CONNECTION]
If you connect this TV to a digital-supported audio device, you can enjoy much more of the digital broadcast-
ing programs with the feeling of being at a live program.
Use the digital audio coaxial cable (not included) for connection.

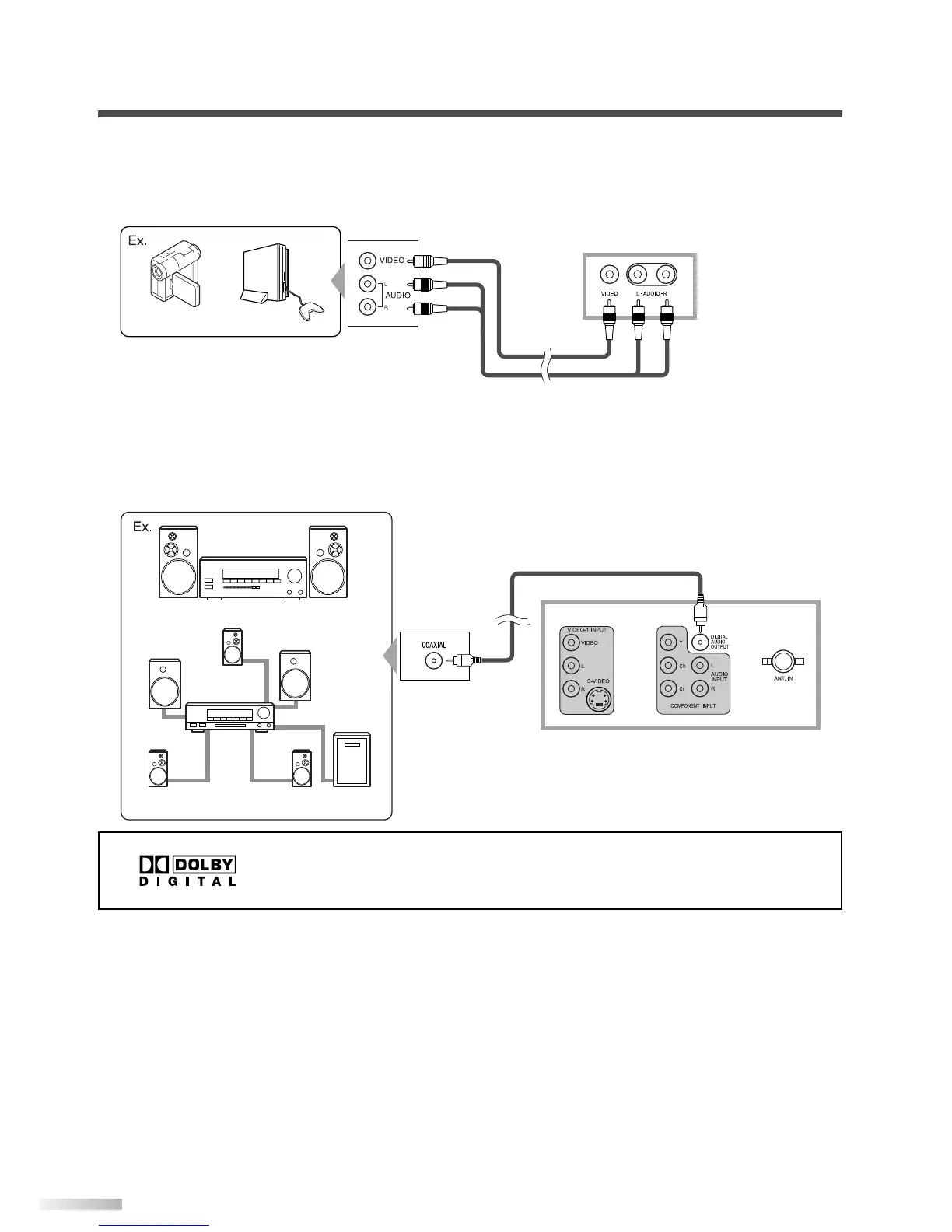

Rear of this TV
MD deck, DAT deck, etc.
Dolby Digital decoder
To coaxial digital
audio input jack
To DIGITAL AUDIO
OUT jack
Digital audio coaxial cable
(not included)
To video output jack
To audio
output jacks
To VIDEO
input jack
Front of this TV
To AUDIO input jacks
Audio cable
(not included)
Video cable (not included)
Video Camera Video Game
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D
symbol are trademarks of Dolby Laboratories.
