[EXTERNAL CONNECTION]

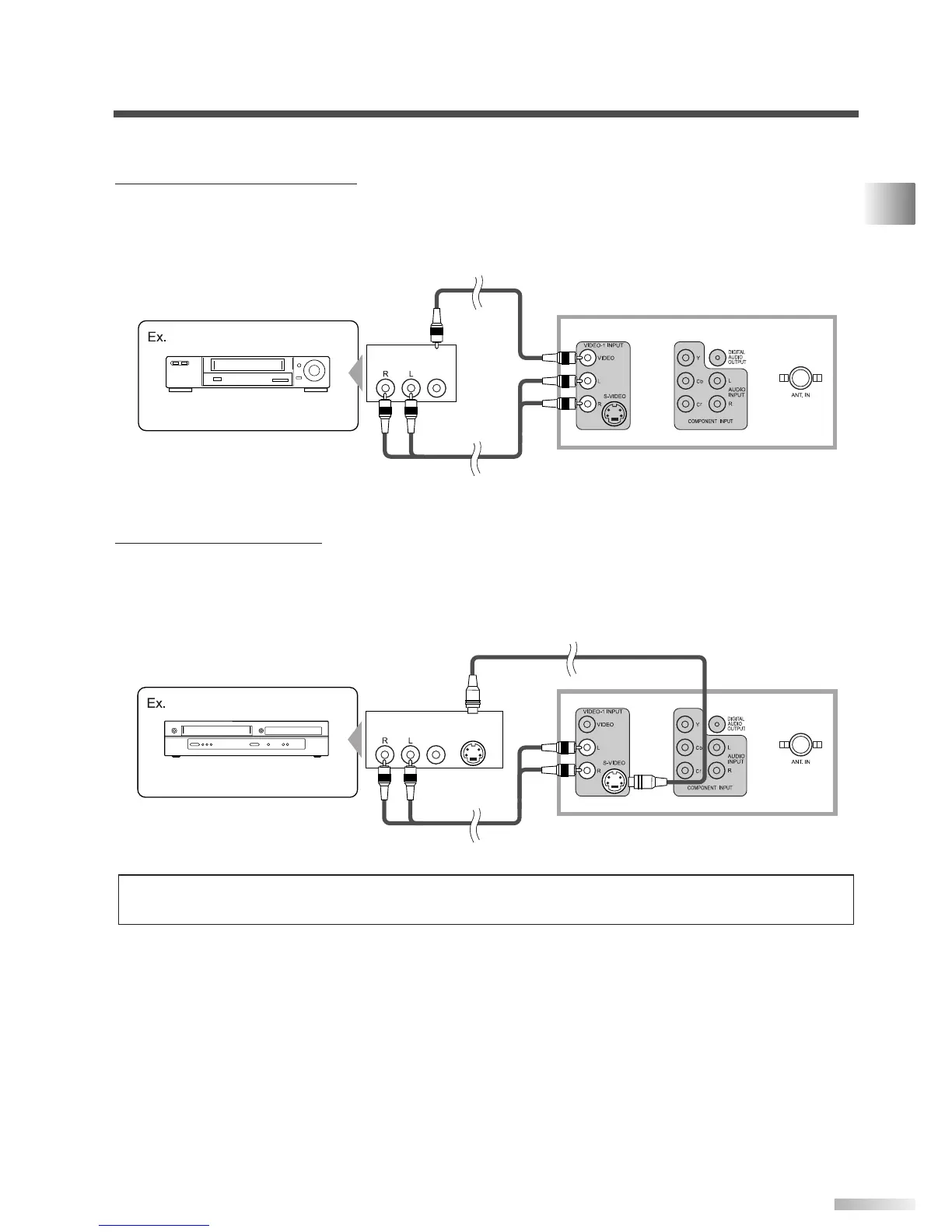

When using the Audio/Video cables
This is the general method to connect this TV to video devices with the video or audio output jacks, such as
a VCR, etc.
When the audio jack of video devices is monaural, connect the audio cable to the AUDIO L jack.
When using the S-Video cab
le
This is how to connect this TV to the video devices with the S-VIDEO OUT jack. You can expect better pic-
ture quality than the normal video cable connection.
Use the S-Video cable (not included) for connection.
NOTE:
If you connect to the S-VIDEO jack and the VIDEO jack at the same time, S-Video connection will have priority.
DVD/VCR with the S-Video output jack
To S-Video
output jack
To S-VIDEO input jack
To audio
output jacks
Rear of this TV
To AUDIO input jacks
Audio cable
(not included)
S-Video cable (not included)
AUDIO
OUT
VIDEO
OUT
S-VIDEO
OUT
To video
output jack
VCR
To audio
output jacks
Rear of this TV
To AUDIO
input jacks
To VIDEO1
input jack
Audio cable
(not included)
Video cable (not included)
AUDIO
OUT
VIDEO
OUT
PREPARATION FOR USE
