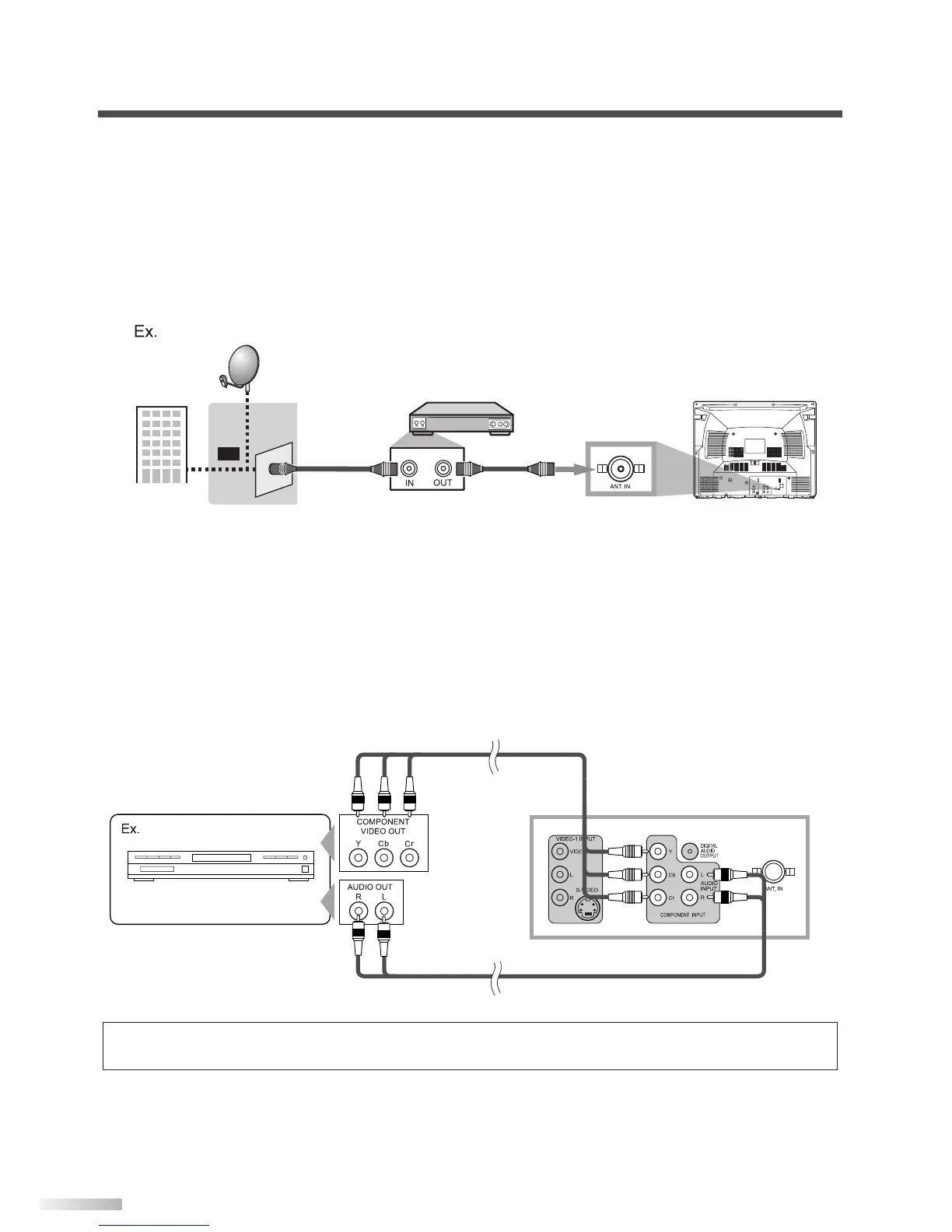

[CONNECTION TO CABLE/SATELLITE BOX]
1) Connect the coaxial cable on your home outlet to the input jack of the CABLE/SATELLITE box.
2) Use the coaxial cable to connect the ANT. IN jack of this TV and the output jack of the CABLE/SATELLITE
box.
*Required cables in 2) and connecting methods differ depending on the CABLE/SATELLITE box. For more
information, please contact the store where you purchased the CABLE/SATELLITE box or nearby electric
appliance stores.
[COMPONENT CONNECTION]
This is the best method to connect this TV to video devices with the component output jack, such as a DVD
player, etc. It can minimize the deterioration of image quality.
Use the component cable (not included) for connection.
NOTE:
This TV can only accept a 480i (interlaced) video signal.
DVD Player with the component
video output jacks
To component video
output jacks
To COMPONENT INPUT jacks
Rear of this TV
To audio
output jacks
To AUDIO
INPUT jacks
Audio cable
(not included)
Component video cable
(not included)
ANT. IN
R
L
R
AU
DI
O
INPUT
DIGITAL
UDIO
Cb
Cr
S-VIDEO
COMPONENT INPUT
VIDE
O
L
L
D
AUDIO
OU
TP
U
T
Cb
Y
V
IDE
O
-1 INPUT
Coaxial cable
(not included)
Coaxial cable
(not included)
Cable box or
Satellite box
Satellite
dish
Cable TV
company
or
Rear of this TV
*If you connect a cable system directly, contact the CATV installer.
