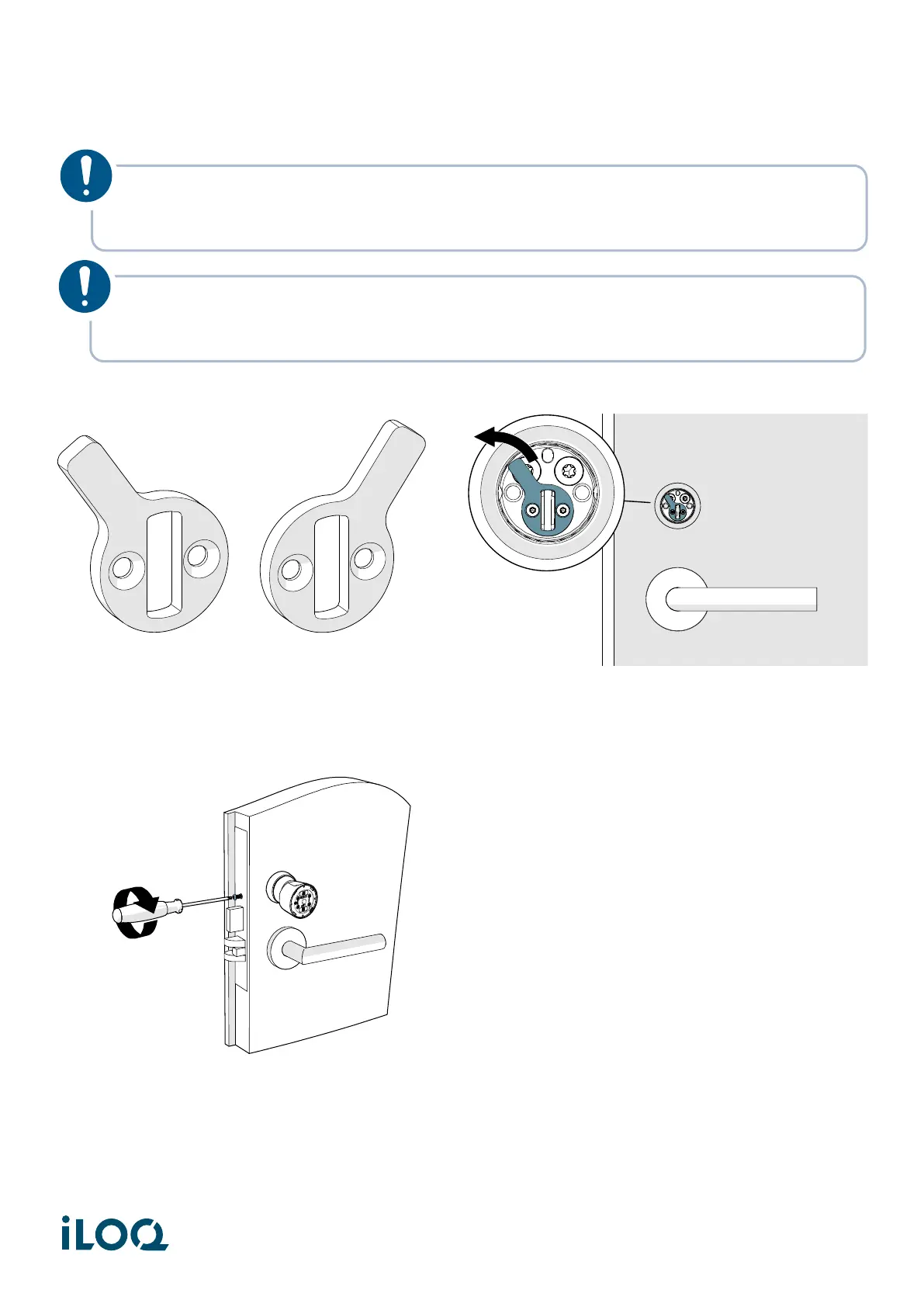

3. Tighten the cylinder set screw of the mortise lock case.
NOTE! When the C04 Sargent Offset cam is used with a Sargent lockcase, such as the
Sargent 8200 series, the cam arm must point towards the opening/latch side of the door. The
cam has the screw countersunk on both sides, so it can be installed either way.
NOTE! The iLOQ security ring includes also a 1/8” spacer ring and a wave washer.
The spacer is often used for thin doors such as storefront doors. The washer is used to fill the
small gab between the cylinder and the security ring for a perfect fit on the door.
