Page 22 Manual

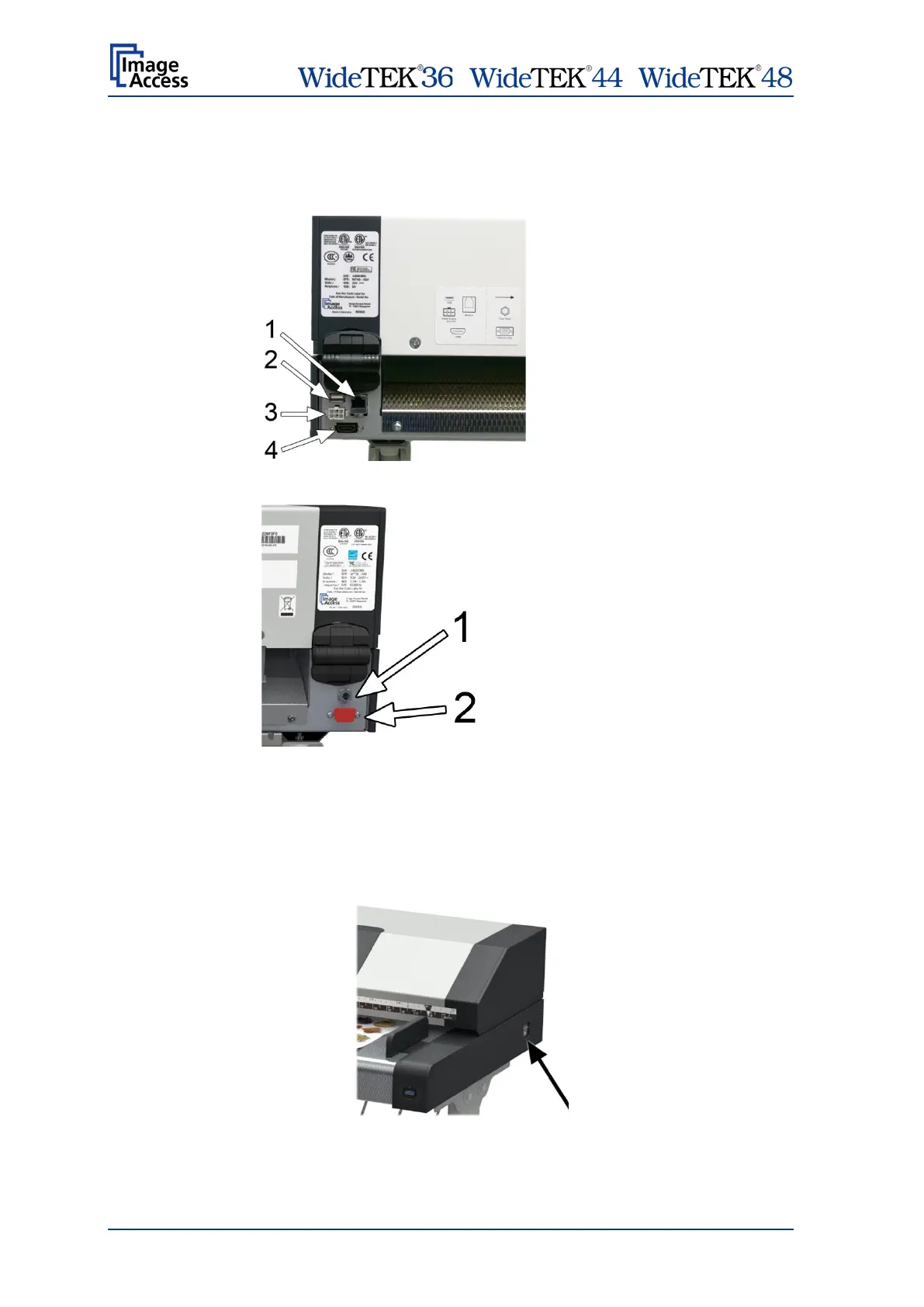

B.2.2 Rear Side Connectors
The connectors are positioned on the left and the right side of the scanner’s back side.
1. Network cable connector
2. USB connector
3. Power supply connector
4. HDMI (video) connector
Picture 6: WideTEK 36 Connectors, left side
1. Foot pedal connector
2. Recovery key connector
Picture 7: Connectors, right side
B.2.3 Main Power Switch
The main power switch is positioned on the right side of the scanner (seen from operators
view, i.e. from front of the scanner).
Picture 8: Main power switch
