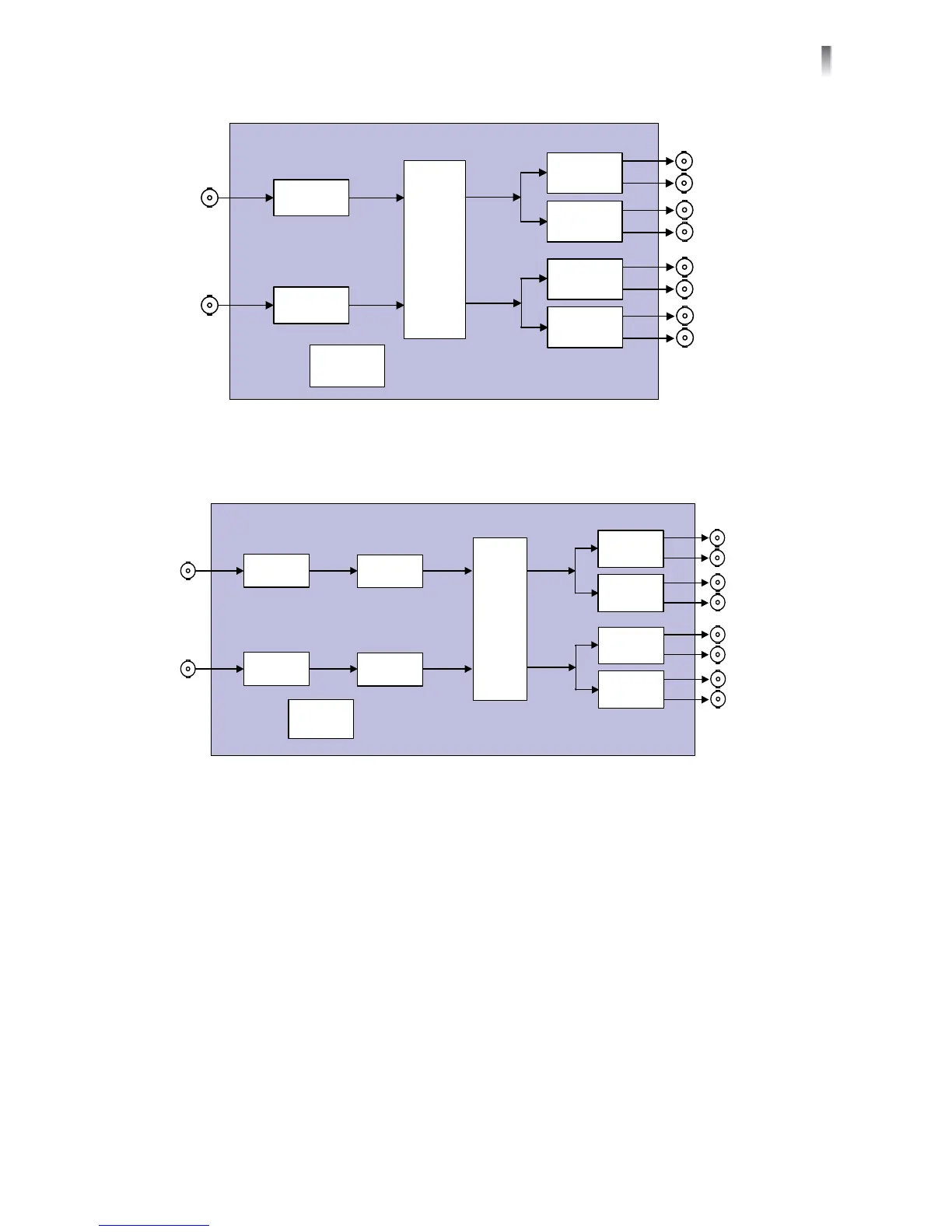

Figure 1-5 DA-DS6804+D Signal Flow Diagram
Figure 1-6 DA-DSR6804+D Signal Flow
Diagram
4 x 4
Driver 1
Driver 2
CPU
Monitoring
and Control
Driver 1
Driver 2
SD-SDI In 1
Equalizer
1
SD-SDI In 2
Equalizer
2
SD-SDI Out 1A
SD-SDI Out 1B
SD-SDI Out 1C
SD-SDI Out 1D
SD-SDI Out 2A
SD-SDI Out 2B
SD-SDI Out 2C
SD-SDI Out 2D
4 x 4
SD-SDI In 1
Equalizer
1
Reclock 1
Driver 1
Driver 2
CPU
Monitoring
and Control
SD-SDI In 2
Equalizer
2
Reclock 2
Driver 1
Driver 2
SD-SDI Out 1A
SD-SDI Out 1B
SD-SDI Out 1C
SD-SDI Out 1D
SD-SDI Out 2A
SD-SDI Out 2B
SD-SDI Out 2C
SD-SDI Out 2D
