K2950SCHEDESS_01 – K2950SCHEDESS_02 (E141203X)
11

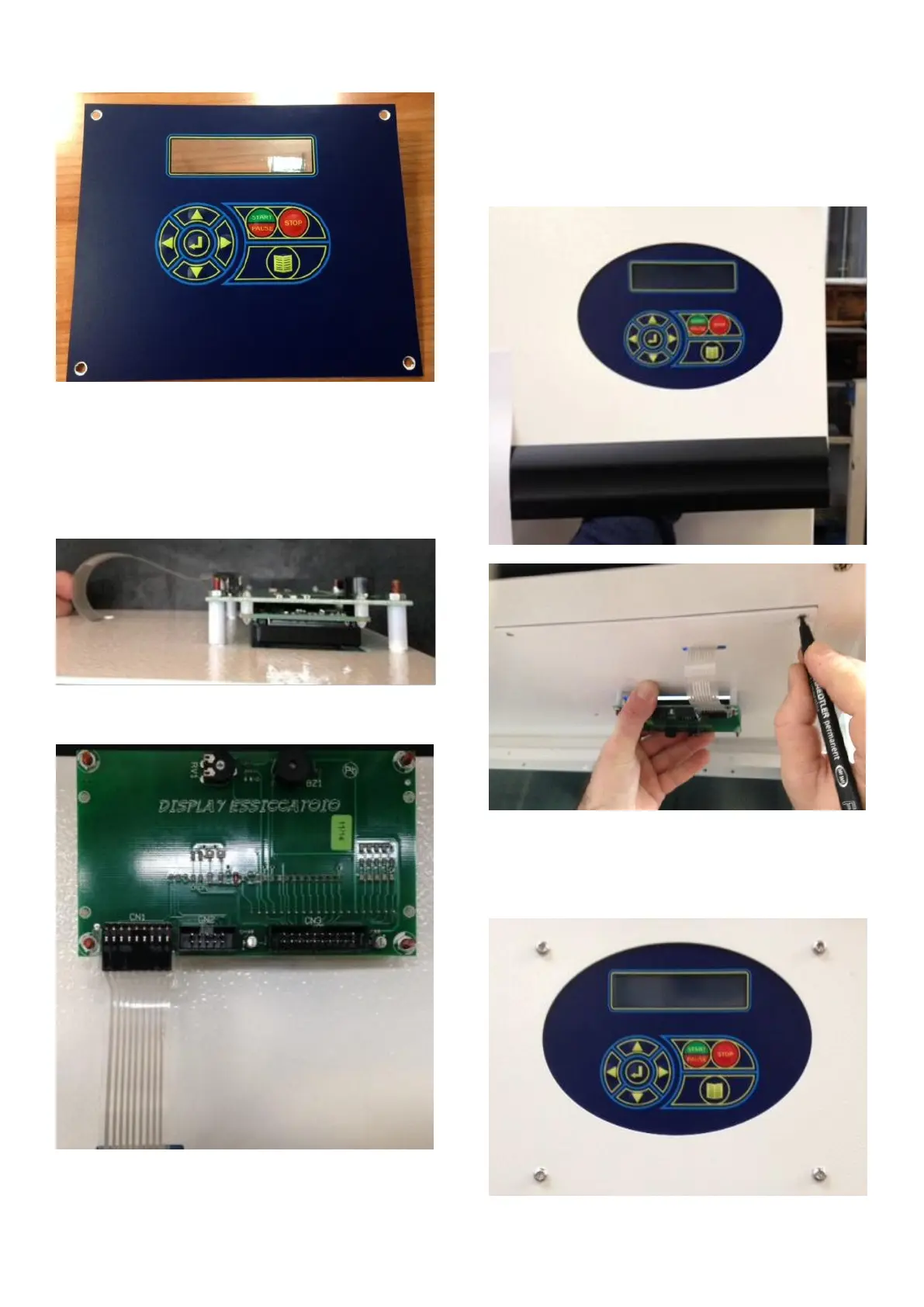

b) Insert the 4 white spacers, 15 mm high
(code: 2950DISTA015) on the 4 pinion on
the support back. Install the display and
closet he washers and the nut M3
(supplied). Connect the flat to the keypad.
c) Place the keypad in the middle of the
cover opening. Using a marking pen,
mark the 4 holes position on the cover
inner side.
d) Use a 5,5 mm drill to hole the panel and
fix the display using the supplied TORX
M5 screws.
